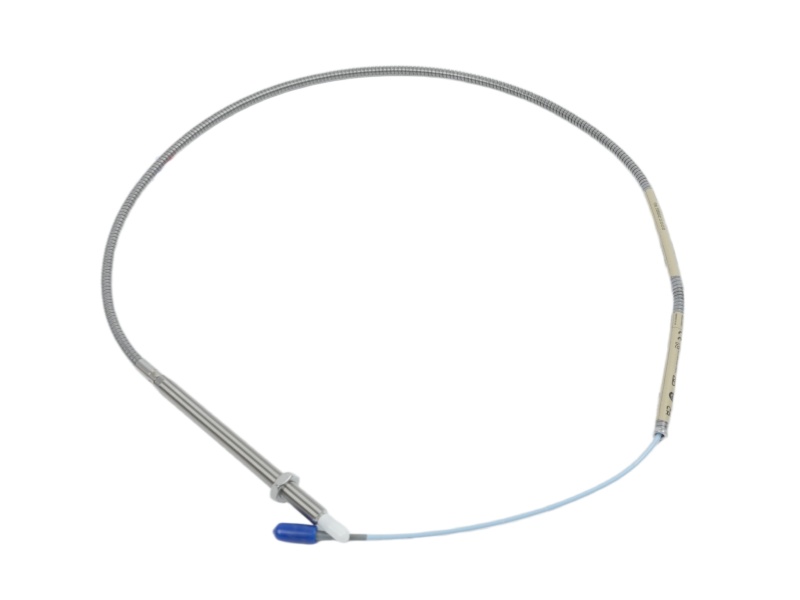

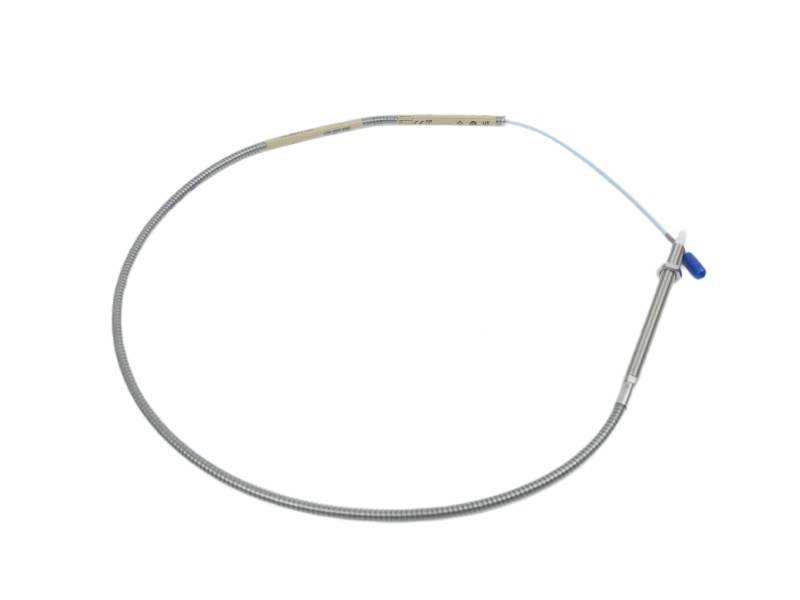

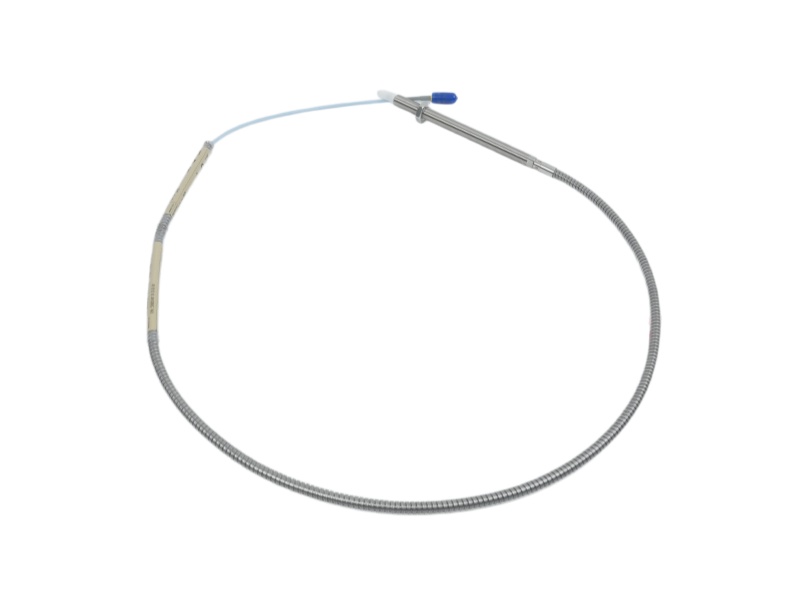

Bently Nevada 330910-00-06-70-02-05 is an armored M10 x 1 threaded 3300 XL NSv proximity probe. Its suffix defines zero unthreaded length, a 60 mm overall case, a 7.0 m total probe length, a miniature coaxial ClickLoc connector with standard cable and multiple approvals. The NSv design is intended for restricted counterbore, side-view or rear-view conditions and small targets. It supports compressor vibration, axial-position, speed and phase-reference projects. Confirm the complete suffix, mounting clearance, target dimensions, matched Proximitor Sensor and system length before ordering.
| Manufacturer | Bently Nevada |
| Complete Part Number | 330910-00-06-70-02-05 |
| Product Type | 3300 XL NSv Armored M10 Proximity Probe |
| Series | 3300 XL NSv Proximity Transducer System |
| Thread | M10 x 1 |
| Armor | Included |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Probe Length | 7.0 m |
| Connector and Cable | Miniature coaxial ClickLoc connector, standard cable |
| Approval Option | Multiple approvals |
| Product Condition | NEW |
| Country of Origin | USA |
| Availability | Contact us to confirm |
| Warranty | With 1 year warranty |
The NSv probe is optimized for locations where standard probes face counterbore, side-view or rear-view restrictions. Its narrow side-view behavior supports compact targets and small shafts. In a complete matched system, the Proximitor Sensor converts probe response into a voltage proportional to distance for static position and dynamic vibration monitoring.
| Thread and construction | M10 x 1, armored |
| Overall case length | 60 mm |
| Total probe length | 7.0 m |
| Connector | Miniature coaxial ClickLoc |
| Cable | Standard |
| System average scale factor | 7.87 V/mm (200 mV/mil) |
| System linear range | 1.5 mm (60 mils) |
Use mechanically and electrically compatible 3300 NSv components. Confirm the complete suffix, 7.0 m probe length, extension cable if used, NSv Proximitor Sensor, target material, M10 x 1 thread and approval documentation before ordering.
Send the complete part number, quantity, destination country and available label photos for availability, compatibility, shipping and written warranty review.
Send the complete part number, quantity, destination country and available label photos for availability, compatibility, shipping and written warranty review.
