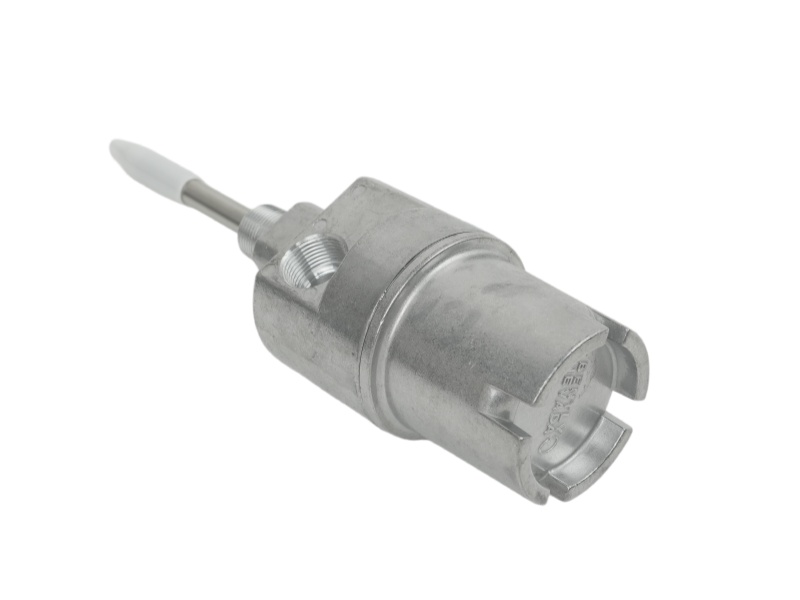

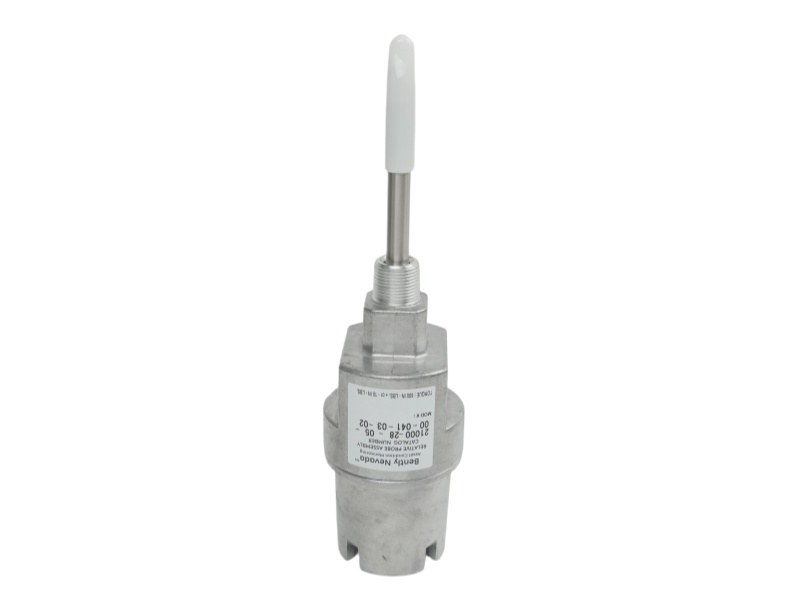

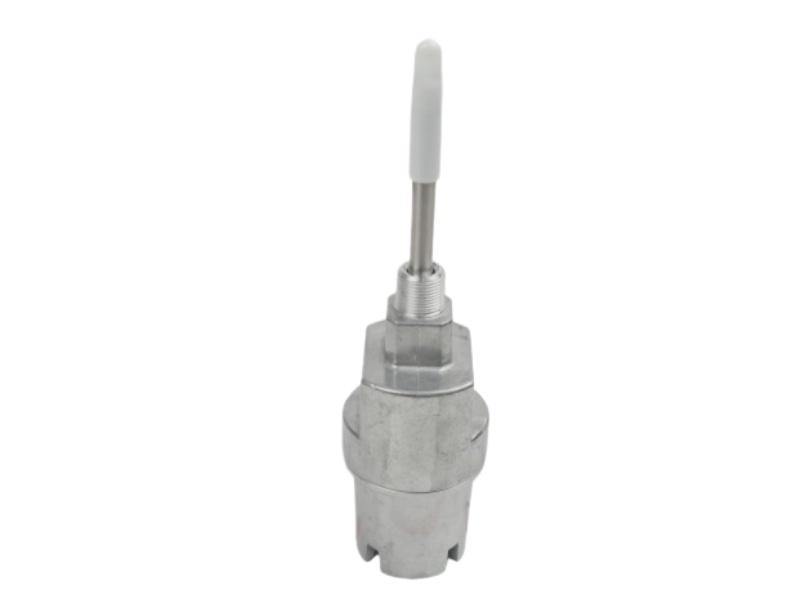

Bently Nevada 21000-28-05-00-035-01-02 is a proximity probe housing assembly configured with a 3300 XL 8 mm probe, a 0.5 m cable and a 3.5 in penetration setting. The ordering code also specifies no standoff adapter, one 3/4-14 NPT fitting with one 3/4-14 NPT plug, and a 3/4-14 NPT mounting thread. It supports protected probe installation and repeatable maintenance access. Before ordering, confirm the exact housing version, approval requirements, penetration dimension, installation drawing and complete matched transducer system.
| Manufacturer | Bently Nevada |
| Complete Part Number | 21000-28-05-00-035-01-02 |
| Product Type | Proximity Probe Housing Assembly |
| Series | 21000 Proximity Probe Housing Assemblies |
| Probe Option | 3300 XL 8 mm probe with selectable hazardous-area approvals |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter | None |
| Probe Penetration | 3.5 in |
| Fittings | One 3/4-14 NPT fitting and one 3/4-14 NPT plug |
| Mounting Thread | 3/4-14 NPT |
| Product Condition | NEW |
| Country of Origin | USA |
| Availability | Contact us to confirm |
| Warranty | With 1 year warranty |
The 21000 housing provides a mechanical interface between the machine casing and a compatible proximity probe. Its adjustable penetration arrangement helps position the probe tip while the housing protects the measurement point and supports inspection or replacement. The housing is a mechanical installation component; electrical performance depends on the probe, extension cable when required, Proximitor Sensor, target material and matched system length.
| Probe family | 3300 XL 8 mm |
| Cable length | 0.5 m (20 in) |
| Penetration | 3.5 in |
| Standoff adapter | Not included |
| Fitting package | 3/4-14 NPT fitting and plug |
| Mounting thread | 3/4-14 NPT |
Do not treat a standard 21000 housing as a CA21000 explosion-proof housing solely because fitting option 01 is selected. Confirm the exact housing certification, mounting thread, penetration dimension, matched system components and approval documents before ordering.
Send the complete part number, quantity, destination country and available label photos for availability, compatibility, shipping and written warranty review.
