Exact-configuration information for machinery monitoring procurement and replacement checks

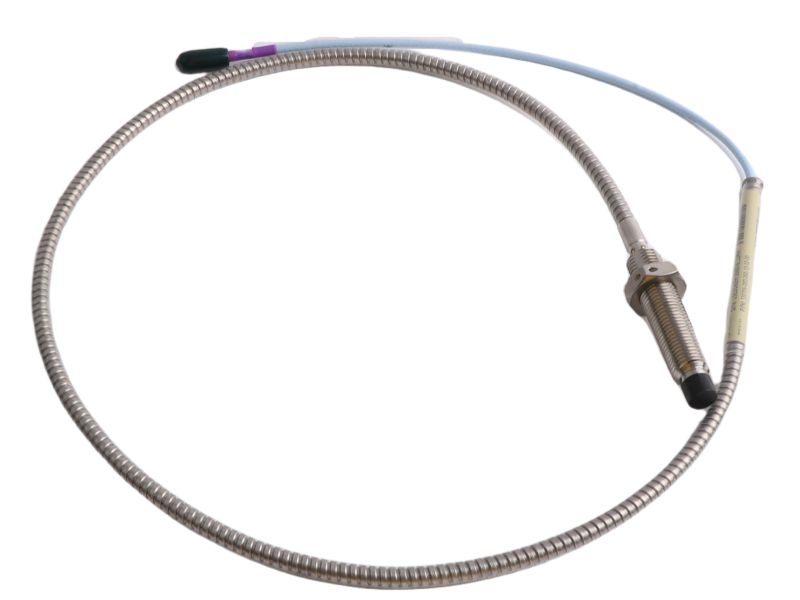

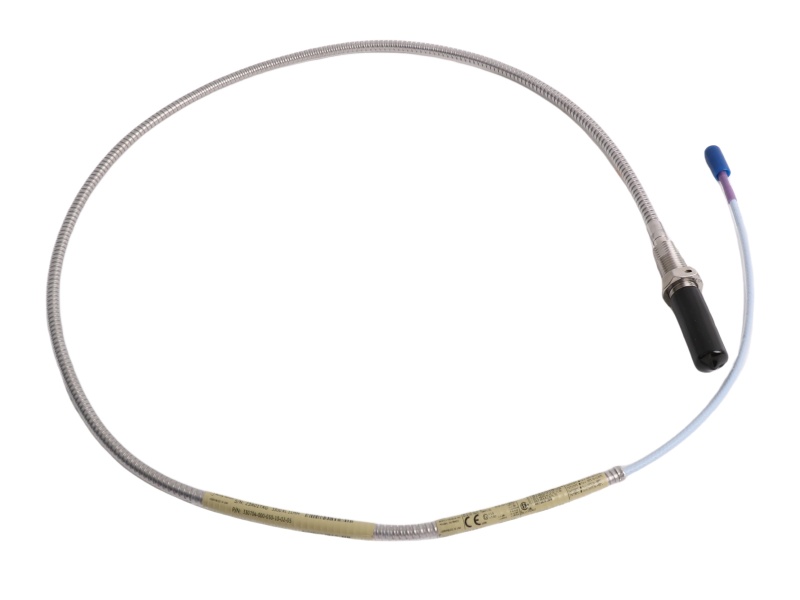

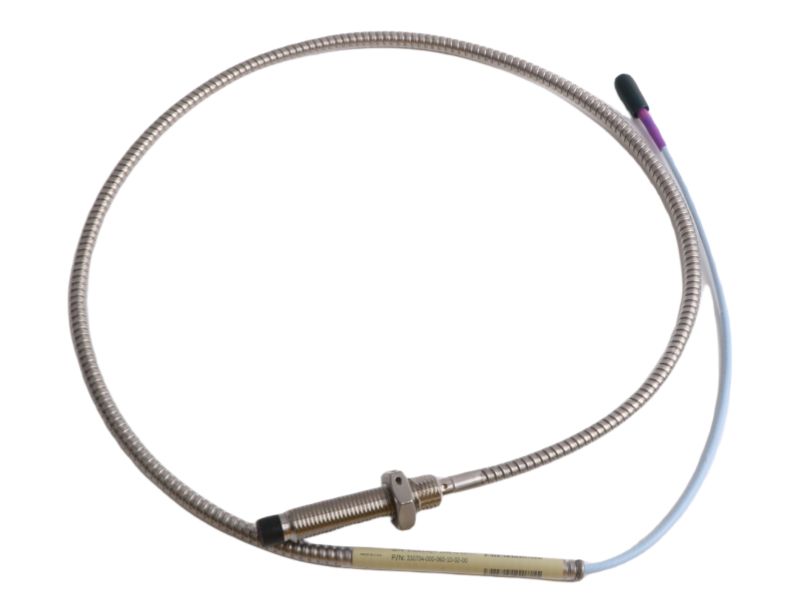

Bently Nevada 330704-000-078-10-01-05 is a metric 3300 XL 11 mm proximity probe configured for non-contacting vibration and displacement measurement within a correctly matched transducer system. The complete code identifies an M14 x 1.5 threaded probe with armor, zero unthreaded length, a 78 mm overall case length, and a 1.0 m total length. Its standard cable terminates in a miniature coaxial ClickLoc connector with a connector protector, and the approval option is 05. Replacement planning must verify the complete suffix, mechanical mounting, required system length, mating extension cable, compatible Proximitor Sensor, target material, installation environment, and label photographs.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 330704-000-078-10-01-05 |
| Product Type | 3300 XL 11 mm proximity probe |
| Series | 3300 XL 11 mm Proximity Transducer System |
| Probe Thread | M14 x 1.5 |
| Armor | With armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 78 mm |
| Total Length | 1.0 m (3.3 ft) |
| Connector | Miniature coaxial ClickLoc connector with connector protector |
| Cable Type | Standard cable |
| Agency Approval Option | 05 — Multiple Approvals |
| Country of Origin | USA |
| Use Case | Fit Consideration |
|---|---|
| Non-contacting shaft measurement | Use within a correctly matched 3300 XL 11 mm transducer system. |
| Vibration monitoring | Confirm target material, probe gap and compatible signal-conditioning components. |
| Displacement or position measurement | Check mechanical range, mounting thread and case-length clearance. |
| Maintenance replacement | Match every suffix, system length and connector option to the installed assembly. |
The current official Bently Nevada / Baker Hughes technical documents reviewed confirm the product family or listed identifier but do not state an exact lifecycle status for 330704-000-078-10-01-05. No Active, Obsolete or Discontinued conclusion is assigned.
It identifies zero unthreaded length, a 78 mm case length, 1.0 m total length, a protected ClickLoc connector with standard cable, and approval option 05.
This exact probe uses an M14 x 1.5 metric thread and includes armor.
The probe must be combined only with extension-cable and Proximitor components that produce the required 3300 XL 11 mm system length.
No. Thread, case length, unthreaded length, cable, connector, approval marking and matched system components must all agree.
The current official technical document does not state an exact lifecycle status for this complete order code, so no discontinuation conclusion is assigned.
Availability of probe, connector, label and packaging photographs can be checked before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented workflow for model verification, inspection coordination, protective handling and international delivery support.
| Checkpoint | What We Review |
|---|---|
| Model and suffix verification | The complete 330704-000-078-10-01-05 order code, required quantity and requested configuration. |
| Condition confirmation | Visible condition, mechanical construction, connection points and packaging evidence when available. |
| Technical compatibility review | Installed system, mounting, mating components, cable arrangement, approvals and operating environment. |
| Product and label photo confirmation | Readable order-code, connector, dimensional and packaging images can be coordinated before dispatch. |
The item and connection points are protected against impact, moisture and uncontrolled movement, with outer packaging selected for the route.
International shipping options are coordinated after destination, quantity, packaging and documentation requirements are reviewed.
Tracking details are shared after carrier acceptance so procurement teams can follow the shipment route.
Commercial shipment documents are prepared according to the confirmed destination and transaction requirements.
Our workflow connects label review, visual inspection, packaging checks, logistics coordination and document preparation in one procurement record. Written warranty terms are provided with the transaction. If a return request is needed, the return authorization process must be started before goods are sent back. After-sales response is coordinated through the same sales channel with the order code, shipment details, photos and a clear issue description.
Look for exact model and suffix verification, clear product-condition terms, readable label evidence, documented compatibility questions, written warranty terms and traceable commercial communication.
Request the full order code, quantity, condition statement, inspection photos when available, packaging plan, shipping options, documentation scope and return-authorization terms.
Engineers should compare mounting, mechanical configuration, connection method, system compatibility, environmental limits and project requirements against the installed equipment.
Risk signals include altered suffixes, unreadable labels, vague condition descriptions, copied specifications from another model, unsupported compatibility claims, missing return terms and pressure to accept unverified stock or delivery promises.
