3300 CERAMIC CAPPED PROXIMITY PROBE
Ceramic front-end protection with a defined 2.0-metre cable, ClickLoc connector and multiple approvals.
IDENTITY SNAPSHOT
Series: 3300
Case: 1.1 in
Approvals: CSA, ATEX, IECEx

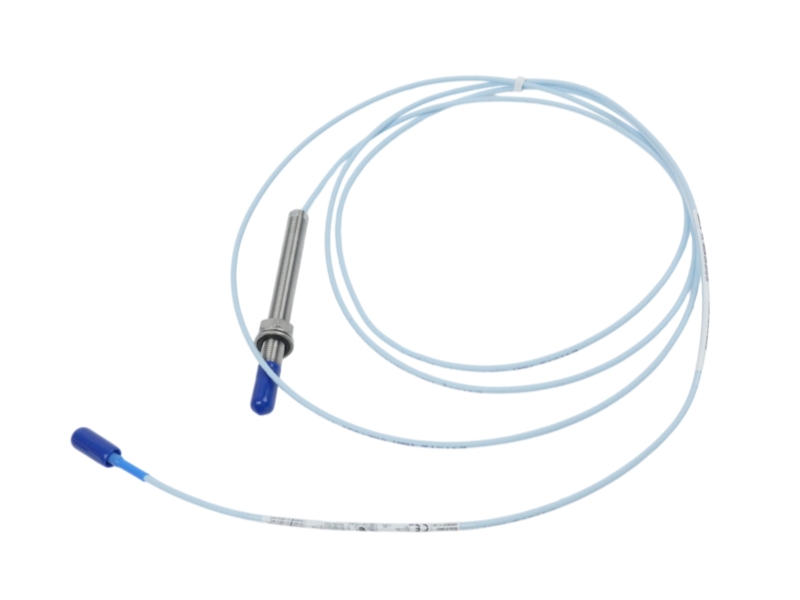

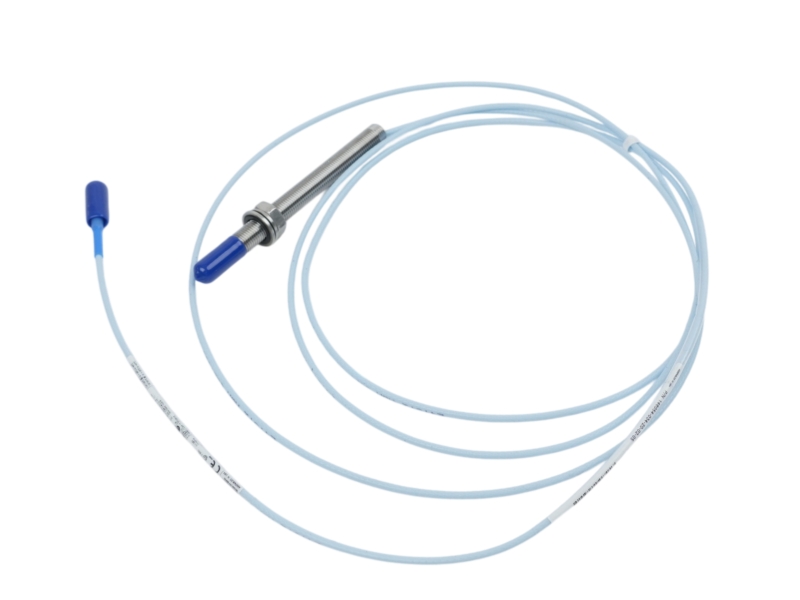

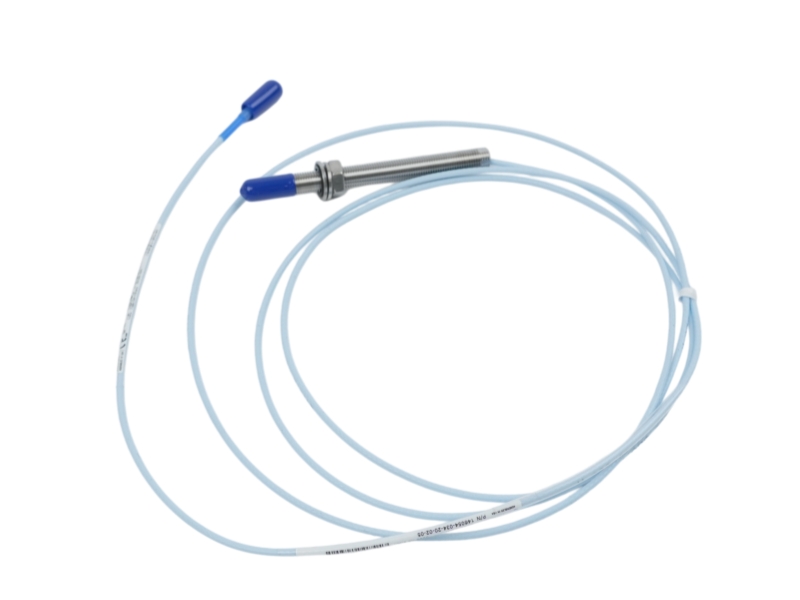

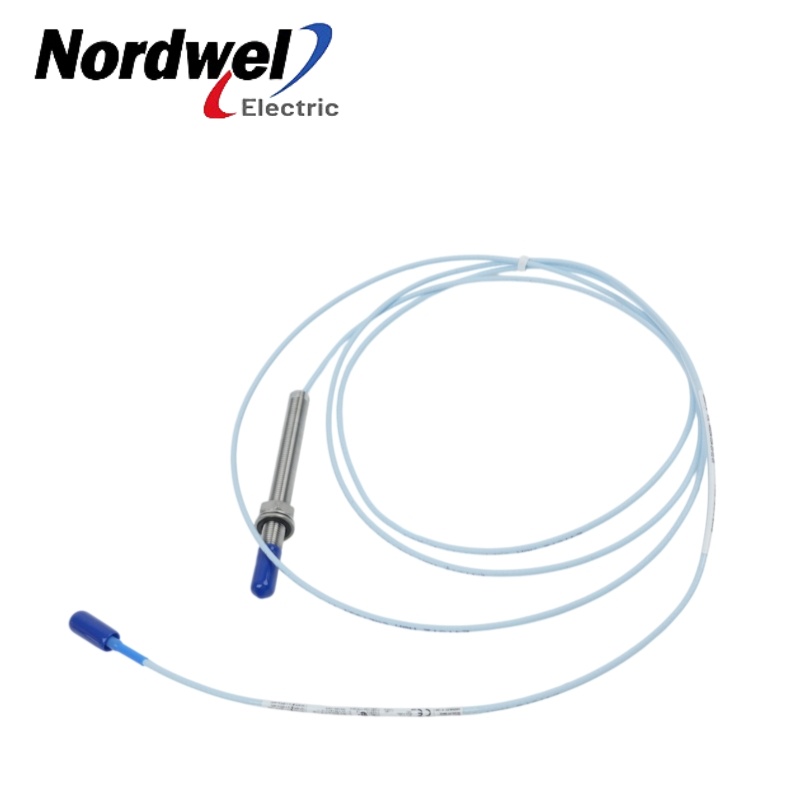

The Bently Nevada 146054-011-20-02-05 is a 3300 ceramic-capped proximity probe developed for machinery applications where the front of the probe may encounter corrosive gases or liquids. Its alumina ceramic cap and AISI 304 stainless-steel case provide front-end protection, while the rear is not sealed and must be protected from destructive environments. The order code identifies a 1.1-inch overall case length, 2.0-metre total length, miniature ClickLoc coaxial connector with standard cable, and CSA, ATEX and IECEx approval option. Procurement review should confirm the complete suffix, matching extension cable, Proximitor Sensor, installation pressure and actual approval markings.
Condition: Original new
Availability: In stock
Lifecycle: Not stated in the current official datasheet
Warranty: With 1 year warranty
Shipping: Worldwide options available
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada |
|---|---|
| Complete Part Number | 146054-011-20-02-05 |
| Series | 3300 Ceramic Capped Probe |
| Product Type | Ceramic capped proximity probe |
| Probe Thread | 3/8-24 UNF |
| Armor | Without armor |
| Overall Case Length | 1.1 in |
| Total Length | 2.0 m |
| Connector | Miniature coaxial ClickLoc connector, standard cable |
| Probe Tip | Alumina ceramic |
| Probe Case | AISI 304 stainless steel |
| System Linear Range | 1.52 mm (60 mils) |
| Recommended Gap | 1.0 mm (40 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) |
| Probe Temperature | -51 to +177 C |
| Pressure Seal | 34 bar (500 psi), nitrogen |
| Approvals | CSA, ATEX and IECEx |
| Country of Origin | USA |
Use with the matching 3300 extension cable and Proximitor Sensor specified for the installed system.
The ceramic front is protected for corrosive media; the rear remains unsealed and requires environmental protection.
Supports non-contact relative displacement or vibration measurement in a correctly configured 3300 transducer chain.
Proceed only after matching suffix, system length, connector, approvals, pressure and mounting arrangement.
| 01 · Identity | Match every character in 146054-011-20-02-05 against the installed probe and label photo. |
|---|---|
| 02 · Mechanical Fit | Confirm the 3/8-24 UNF thread, 1.1-inch case length and installation clearance. |
| 03 · System Chain | Verify the matching extension cable, Proximitor Sensor and required electrical system length. |
| 04 · Environment | Review front exposure, rear protection, pressure and temperature conditions. |
| 05 · Approvals | Confirm CSA, ATEX and IECEx markings meet the actual site requirements. |
| 06 · Evidence | Review probe, ceramic tip, cable, connector, label and packaging photos before approval. |
The current Bently Nevada datasheet confirms the complete 146054-011-20-02-05 ordering configuration but does not state an official lifecycle classification. No Active, Classic, obsolete or discontinued conclusion is applied.
A 3300 ceramic-capped probe with 1.1-inch case length, 2.0-metre total length, ClickLoc connector and approval option 05.
The alumina ceramic front can face corrosive gases or liquids; the unsealed rear must remain protected.
Confirm the extension cable, Proximitor Sensor and total electrical system length.
The current official datasheet does not state a lifecycle classification.
Probe, ceramic tip, connector, label, approval and packaging photos can be requested before approval.
