Exact-configuration information for machinery monitoring procurement and replacement checks

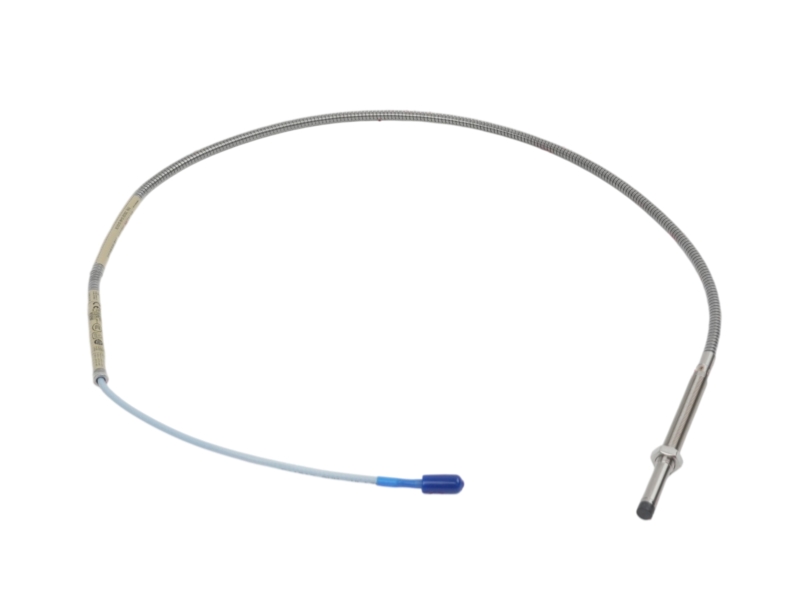

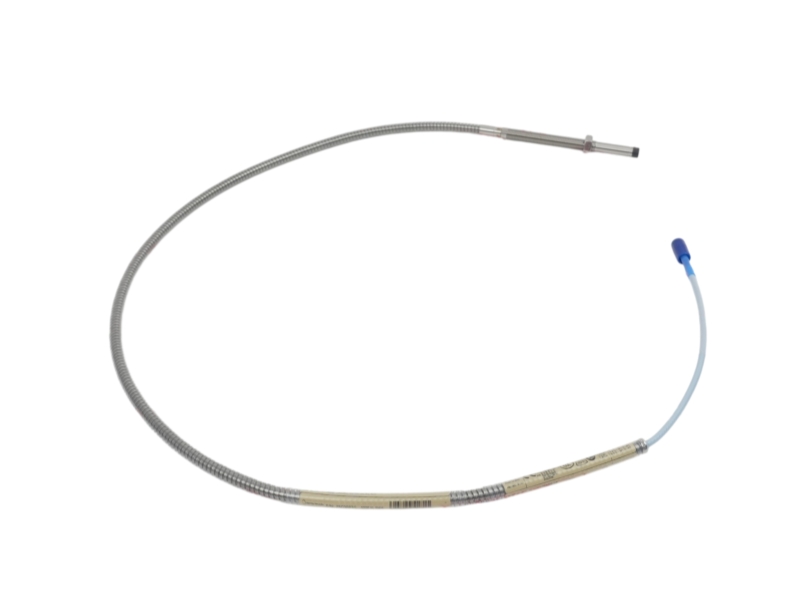

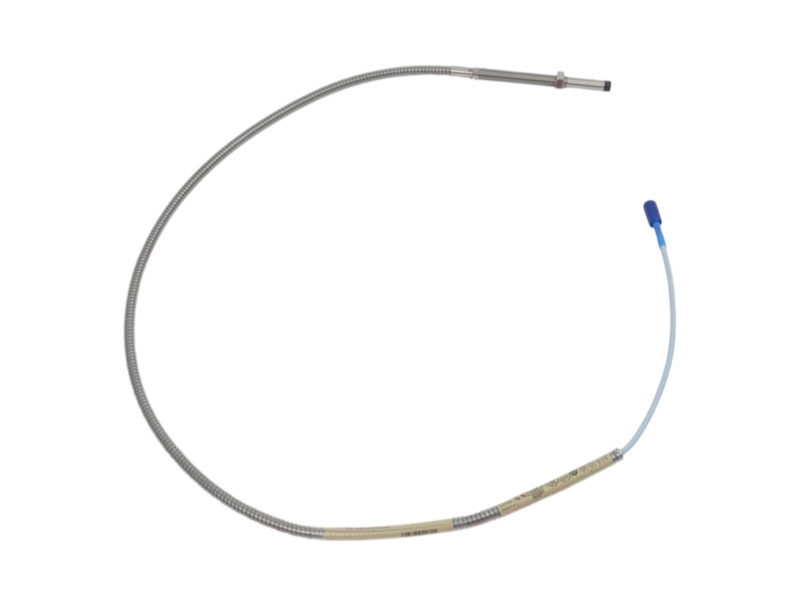

Bently Nevada 330102-16-40-50-01-05 is a 3300 XL 8 mm proximity probe for non-contacting vibration and position measurements on compatible machinery. The complete code specifies a 3/8-24 UNF threaded probe with armor, 1.6 in unthreaded length, a 4.0 in overall case length, and 5.0 m total length. It uses standard cable with a miniature coaxial ClickLoc connector and connector protector, plus the 05 approval option for CSA, ATEX and IECEx approvals. Official ordering guidance states that five-meter probes are designed for use only with the five-meter Proximitor Sensor. Buyers must therefore verify mechanical fit, system length, connector, approval markings and installed components.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 330102-16-40-50-01-05 |
| Product Type | 3300 XL 8 mm proximity probe |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Thread | 3/8-24 UNF |
| Armor | With armor |
| Unthreaded Length | 1.6 in (40.6 mm) |
| Overall Case Length | 4.0 in (101.6 mm) |
| Probe Tip Diameter | 8.0 mm (0.31 in) |
| Total Length | 5.0 m (16.4 ft) |
| Connector | Miniature coaxial ClickLoc connector with connector protector |
| Cable Type | Standard cable |
| Agency Approval Option | 05 — CSA, ATEX and IECEx approvals |
| Country of Origin | USA |
| Use Case | Fit Consideration |
|---|---|
| Radial vibration measurement | Use as part of a matched 3300 XL 8 mm system on suitable conductive targets. |
| Shaft position monitoring | Confirm probe gap, mounting geometry and required signal-conditioning components. |
| Five-meter transducer installation | Pair only with the five-meter Proximitor Sensor specified by the official ordering guidance. |
| Maintenance replacement | Match mechanical lengths, connector, cable, approvals and all suffixes. |
The current official Bently Nevada / Baker Hughes technical documents reviewed confirm the product family or listed identifier but do not state an exact lifecycle status for 330102-16-40-50-01-05. No Active, Obsolete or Discontinued conclusion is assigned.
It identifies 1.6 in unthreaded length, a 4.0 in case, 5.0 m total length, protected ClickLoc standard cable and approval option 05.
The 330102 probe family uses a 3/8-24 UNF thread and this base model includes armor.
Official ordering guidance states that five-meter probes are designed for use only with the five-meter Proximitor Sensor.
Not automatically. The probe, extension cable and Proximitor Sensor must form the correct matched electrical length.
The current official technical document does not state an exact lifecycle status for this complete order code, so no discontinuation conclusion is assigned.
Availability of probe, connector, approval label and packaging photographs can be checked before shipment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
A documented workflow for model verification, inspection coordination, protective handling and international delivery support.
| Checkpoint | What We Review |
|---|---|
| Model and suffix verification | The complete 330102-16-40-50-01-05 order code, required quantity and requested configuration. |
| Condition confirmation | Visible condition, mechanical construction, connection points and packaging evidence when available. |
| Technical compatibility review | Installed system, mounting, mating components, cable arrangement, approvals and operating environment. |
| Product and label photo confirmation | Readable order-code, connector, dimensional and packaging images can be coordinated before dispatch. |
The item and connection points are protected against impact, moisture and uncontrolled movement, with outer packaging selected for the route.
International shipping options are coordinated after destination, quantity, packaging and documentation requirements are reviewed.
Tracking details are shared after carrier acceptance so procurement teams can follow the shipment route.
Commercial shipment documents are prepared according to the confirmed destination and transaction requirements.
Our workflow connects label review, visual inspection, packaging checks, logistics coordination and document preparation in one procurement record. Written warranty terms are provided with the transaction. If a return request is needed, the return authorization process must be started before goods are sent back. After-sales response is coordinated through the same sales channel with the order code, shipment details, photos and a clear issue description.
Look for exact model and suffix verification, clear product-condition terms, readable label evidence, documented compatibility questions, written warranty terms and traceable commercial communication.
Request the full order code, quantity, condition statement, inspection photos when available, packaging plan, shipping options, documentation scope and return-authorization terms.
Engineers should compare mounting, mechanical configuration, connection method, system compatibility, environmental limits and project requirements against the installed equipment.
Risk signals include altered suffixes, unreadable labels, vague condition descriptions, copied specifications from another model, unsupported compatibility claims, missing return terms and pressure to accept unverified stock or delivery promises.
Send the complete part number, required quantity, destination country and available product or label photos for a structured procurement review.
Email: sales6@apterpower.com WhatsApp: +86 18159889985
