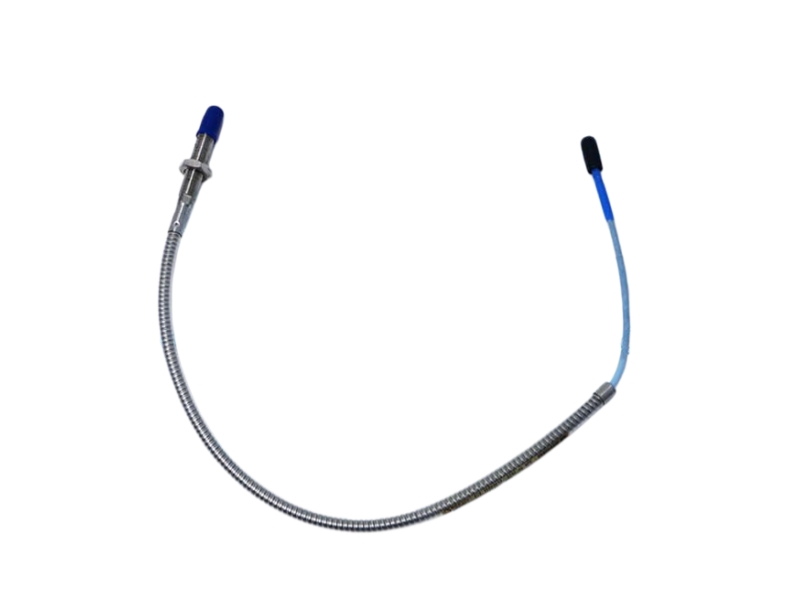

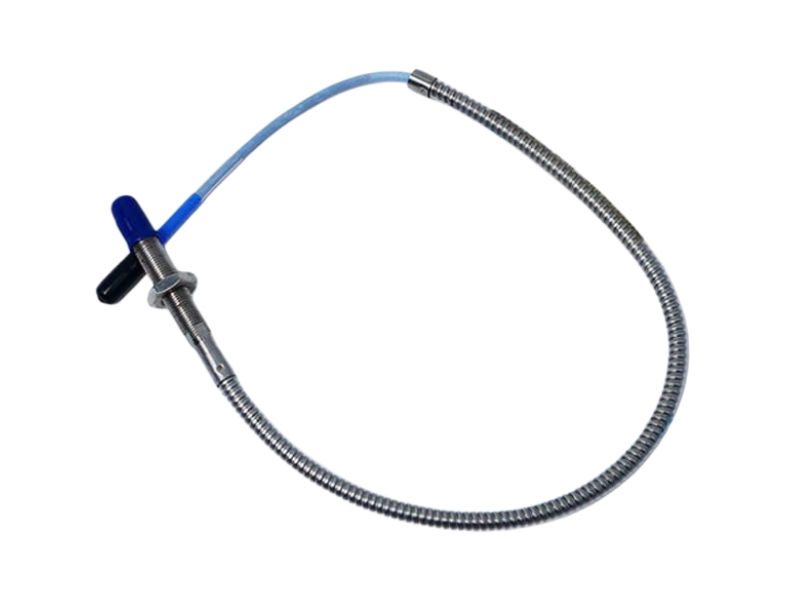

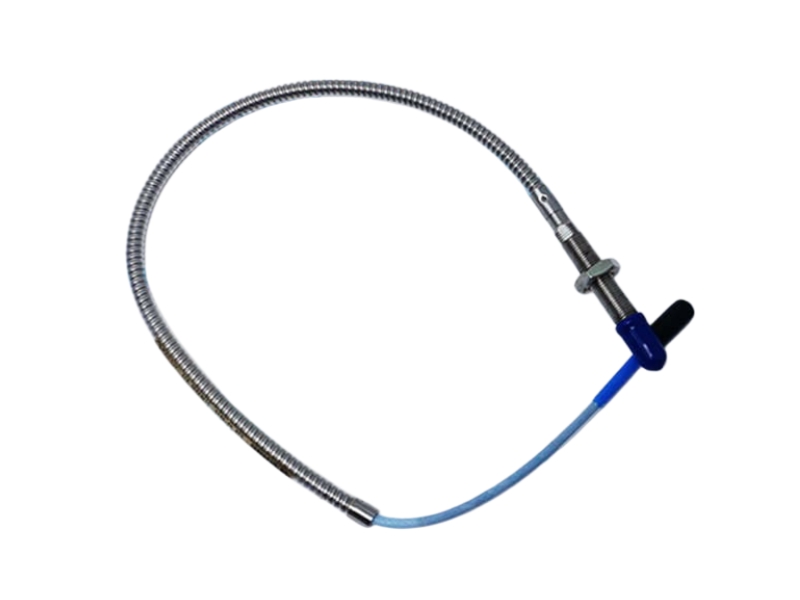

Armored M10 × 1 proximity probe · 50 mm case · 0.5 m total probe length
The Bently Nevada 330104-00-05-05-02-00 is a configuration-specific probe for the 3300 XL 8 mm Proximity Transducer System. This model combines an M10 × 1 threaded case, flexible stainless-steel armor, a 50 mm overall case length and a 0.5 m total probe length. It is supplied with a miniature coaxial ClickLoc connector and no connector protector.
For correct system performance, use the probe with a compatible 3300 XL extension cable and Proximitor sensor. Before ordering, verify the complete part number, required total system length, connector option and approval requirement. For replacement projects, send the installed part number or a clear nameplate photo for model confirmation.
| Field | Configured value |
|---|---|
| Part Number | 330104-00-05-05-02-00 |
| Brand | Bently Nevada |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Product Type | Metric armored proximity probe |
| Case Thread | M10 × 1 |
| Overall Case Length | 05 · 50 mm |
| Unthreaded Length | 00 · 0 mm |
| Total Probe Length | 05 · 0.5 m (1.6 ft) |
| Connector / Cable Option | 02 · Miniature coaxial ClickLoc connector, standard cable, without connector protector |
| Armor | Flexible stainless-steel armor with FEP outer jacket |
| Agency Approval | 00 · Not required |
Compatibility note: Similar-looking 330104 probes are not automatically interchangeable. Confirm the full suffix code and total system length before purchase.
| Parameter | Published system / probe value |
|---|---|
| Linear range | 2 mm (80 mil), approximately 0.25 to 2.3 mm from target |
| Incremental scale factor | 7.87 V/mm (200 mV/mil) nominal |
| Recommended radial-vibration gap | Approximately 1.27 mm (50 mil) / −9 Vdc |
| Frequency response | 0 to 10 kHz, +0/−3 dB |
| Minimum flat target | 15.2 mm (0.6 in) diameter |
| Minimum shaft diameter | 50.8 mm (2 in) |
| Probe tip / case material | PPS tip; AISI 303 or 304 stainless-steel case |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Standard probe temperature | −52°C to +177°C (−62°F to +350°F), operating and storage |
Is this probe the same as every Bently Nevada 330104 model?
No. The complete suffix code defines the mechanical dimensions, cable length, connector and approval option.
Can you verify compatibility before quotation?
Yes. Send the installed part number, required total system length and a clear nameplate photo. We will check the requested configuration.
Are the extension cable and Proximitor sensor included?
This listing is for the probe only unless the quotation expressly includes additional system components.
What information is needed for price and lead time?
Please provide the full part number, quantity, destination country and required delivery date.
What should be checked during installation?
Confirm system length, connector condition, target material and gap. Maintain at least the published 25.4 mm cable bend radius.
Send the complete part number, required quantity, destination country and expected delivery date. For replacement orders, include a clear photo of the installed nameplate. We will confirm availability, lead time and shipping options in the quotation.
Technical values are based on Bently Nevada 3300 XL 8 mm Proximity Transducer System published documentation. Final compatibility depends on the complete installed system configuration.
PROFESSIONAL PROCUREMENT SUPPORT
Our service process is built around exact part-number identification, documented configuration review and clear commercial terms.
Contact us before returning any item. Return authorization, eligibility, inspection requirements, destination and any applicable charges are governed by the written quotation and order terms. The complete part number and reason for return must accompany the request.
Warranty scope, duration and remedy are stated in the quotation for the supplied condition. Damage caused by incorrect selection, excessive thread engagement, cable abuse, improper installation or operation outside published limits is evaluated against the agreed terms.
BENTLY NEVADA · 3300 XL 8 mm PROBE FAMILY
The following complete part numbers were selected from the provided TXT file for their relationship to the 3300 XL 8 mm probe family. They are comparison references, not automatic substitutes for 330104-00-05-05-02-00.
| Complete model | Selection difference |
|---|---|
| 330103-00-03-10-02-00 | Metric M10 x 1 standard-mount probe without armor; 30 mm case, 1.0 m standard cable, no connector protector, no agency approval required. |
| 330103-00-04-10-02-00 | Metric M10 x 1 standard-mount probe without armor; 40 mm case, 1.0 m standard cable, no connector protector, no agency approval required. |
| 330103-00-04-10-02-05 | Same 40 mm case and 1.0 m standard cable configuration, with CSA, ATEX and IECEx approvals. |
| 330103-00-06-05-11-05 | Metric M10 x 1 probe without armor; 60 mm case, 0.5 m FluidLoc cable, connector protector and CSA/ATEX/IECEx approvals. |
| 330101-00-08-05-02-05 | 3/8-24 UNF standard-mount probe without armor; 0.8 in case, 0.5 m standard cable and CSA/ATEX/IECEx approvals. |
| 330105-02-12-10-02-05 | Published on this website. 3/8-24 UNF reverse-mount probe with 1.0 m standard cable and CSA/ATEX/IECEx approvals. |
| 330106-05-30-05-02-CN | M10 x 1 reverse-mount probe with 0.5 m standard cable; confirm the CN suffix against the nameplate and project documentation. |
Send both labels for a configuration comparison.
