4.0 m armored extension cable · standard temperature range · approval option 00

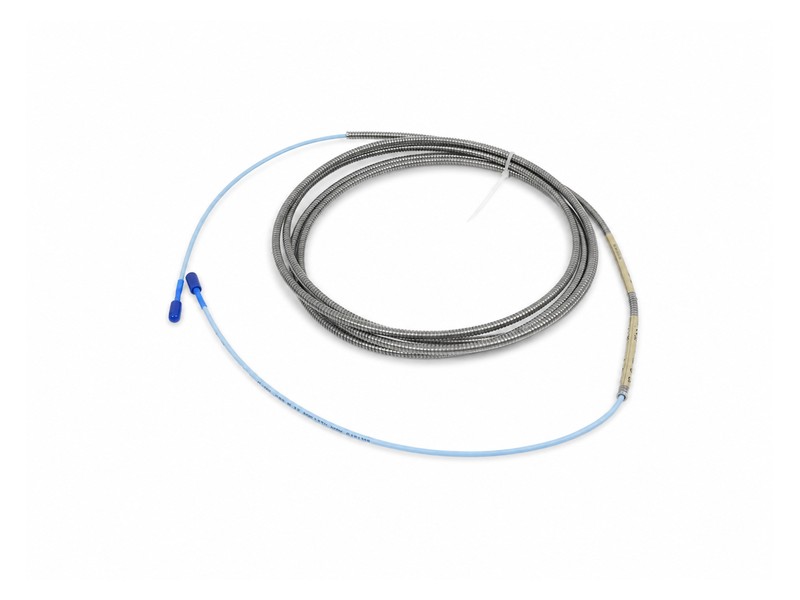

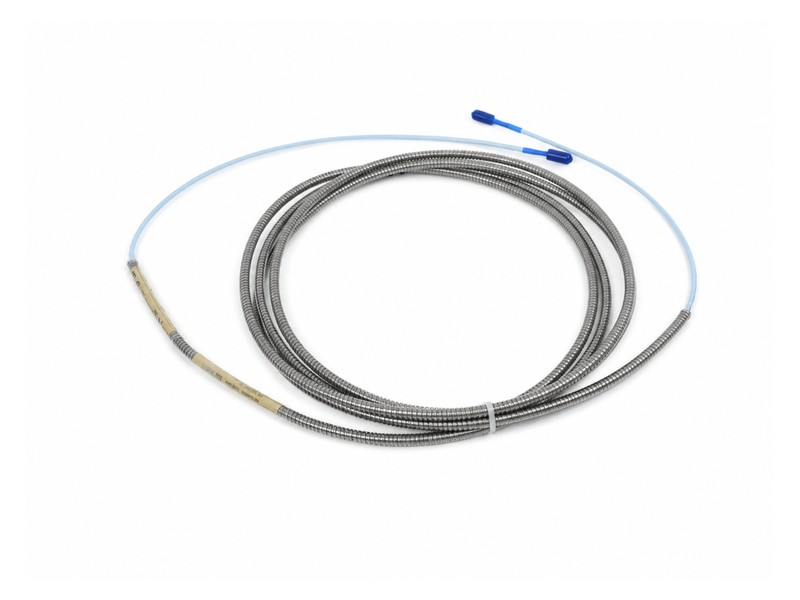

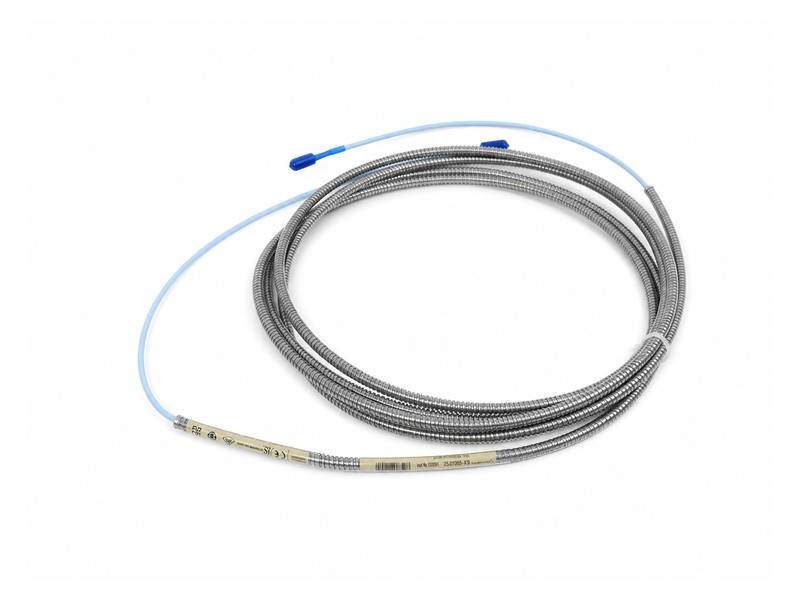

The Bently Nevada 330130-040-01-00 is a configuration-specific 4.0 m armored extension cable for the 3300 XL 8 mm Proximity Transducer System.
Probe length plus extension-cable length must equal the Proximitor sensor total length.
Typical example only. Verify all three complete part numbers before ordering.
| Option | Configuration | Selection consideration |
|---|---|---|
| 00 | Standard cable | Protected routing |
| 01 | Armored cable — current model | Added mechanical protection |
| 02 | Standard + protector | Connection protection |
| 03 | Armored + protector | Cable and connection protection |
Cable-length tolerance: +20%, -0%. Armor length is 300 mm less than cable length.
Included: one 330130-040-01-00 extension cable. Official documentation states each extension cable includes silicone tape.
Not automatically included: probe, Proximitor sensor or connector protectors.
00: agency approval not required.
05: CSA, ATEX and IECEx approval option.
| Issue | Check first | Reason |
|---|---|---|
| Unexpected output | System length | Electrical length must match |
| Intermittent signal | ClickLoc and connector | Connection may be incomplete |
| Routing difficulty | Bend radius and clearance | Mechanical limits affect installation |
Is this a proximity probe?
No. It is the extension-cable component.
Does 4.0 m mean a 4.0 m system?
No. Add the probe length and match the sensor system length.
Does option 01 include connector protectors?
No. Option 03 is armored cable with connector protector.
What is supplied?
One extension cable unless the quotation states otherwise.
Provide probe, extension cable and Proximitor sensor numbers, quantity, destination and required date.
Document 141194 Rev. AM, published by Baker Hughes. Final suitability depends on the complete system configuration.
Our service process reduces ordering errors and keeps delivery conditions traceable.
Verify probe, cable, sensor codes and system length.
Confirm price, availability, lead time, shipping and terms.
Reconfirm model, quantity and destination.
Provide documents, tracking and issue coordination.
Warranty scope and claim requirements follow the accepted quotation and written order terms.
Prior authorization is required. Incorrectly ordered configuration-specific parts may be restricted.
Match probe length and Proximitor sensor total system length.
| Model | Length | Configuration | Approval | Selection note |
|---|---|---|---|---|
| 330130-030-01-00 | 3.0 m | Armored | Not required | Shorter option |
| 330130-035-01-00 | 3.5 m | Armored | Not required | Intermediate length |
| 330130-040-01-00 CURRENT MODEL |
4.0 m | Armored | Not required | Current page |
| 330130-045-01-00 | 4.5 m | Armored | Not required | Longer option |
Standard unarmored cable.
Armored cable with connector protector.
Armored cable with CSA, ATEX and IECEx approvals.
Send photos or part numbers for the installed probe, extension cable and Proximitor sensor.
