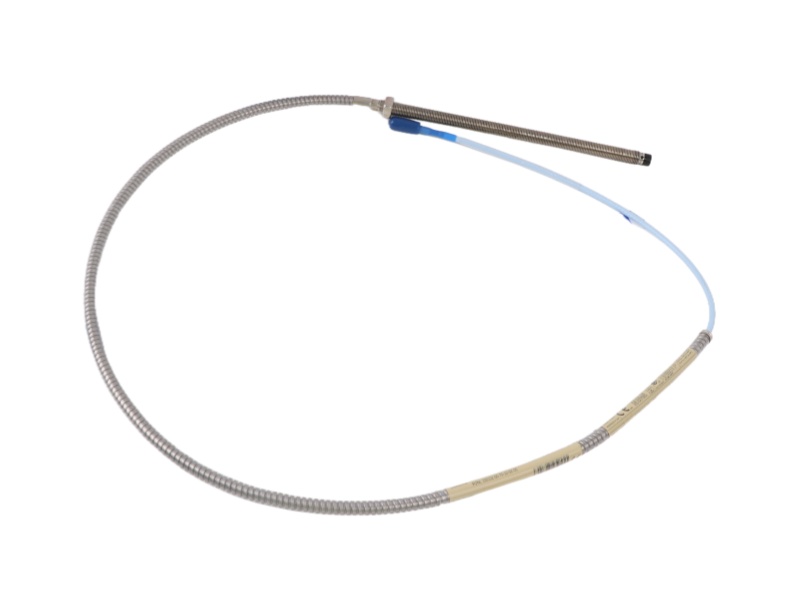

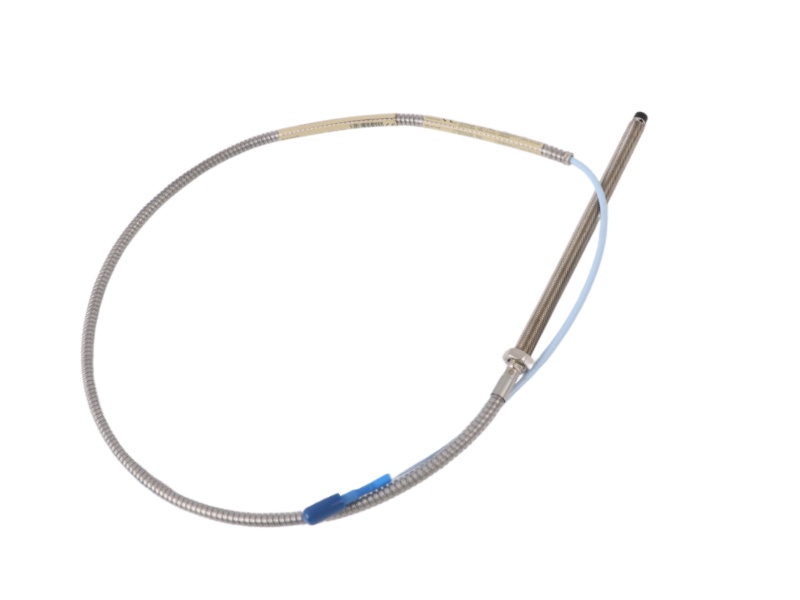

The Bently Nevada 330102-00-79-05-02-05 3300 XL 8 mm Proximity Probes is a precision-engineered 3300 XL 8 mm proximity probe designed for accurate vibration and position monitoring in critical industrial machinery. Manufactured in the USA, this probe produces an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, allowing it to measure both static (position) and dynamic (vibration) values. Its primary applications include vibration and position monitoring on fluid-film bearing machines, as well as providing Keyphasor reference signals and speed measurements, ensuring reliable performance in complex industrial environments.

The 3300 SERIES BENTLY NEVADA 330102-00-79-05-02-05 is part of the 3300 XL 8 mm system, which delivers advanced eddy current proximity transducer performance. The standard 5-meter system fully complies with API 670 (4th Edition), meeting strict requirements for mechanical design, linear range, accuracy, and temperature stability. Complete interchangeability of probes, extension cables, and Proximitor sensors eliminates the need for individual component matching or bench calibration, providing seamless integration across industrial applications.

Each Bently 3300 XL 8 mm 330102-00-79-05-02-05 component is backward compatible with non-XL 3300 series 5 mm and 8 mm transducer components. This includes compatibility with the 3300 5 mm probe, which is particularly useful in applications where an 8 mm probe may be too large for the available mounting space.

The 3300 XL 8 mm Proximity Probes 330102-00-79-05-02-05 features the patented TipLoc molding method for a stronger bond between the probe tip and body, while the CableLoc design provides 330 N (75 lbf) pull strength to secure the probe cable. Optional FluidLoc cables prevent oil and other liquids from leaking through the cable, ensuring reliable operation. Probes 330102-00-79-05-02-05 Bently Nevada operates optimally between +18°C and +27°C with a -24 Vdc power supply and a 10 kΩ load, delivering consistent performance in industrial environments.
