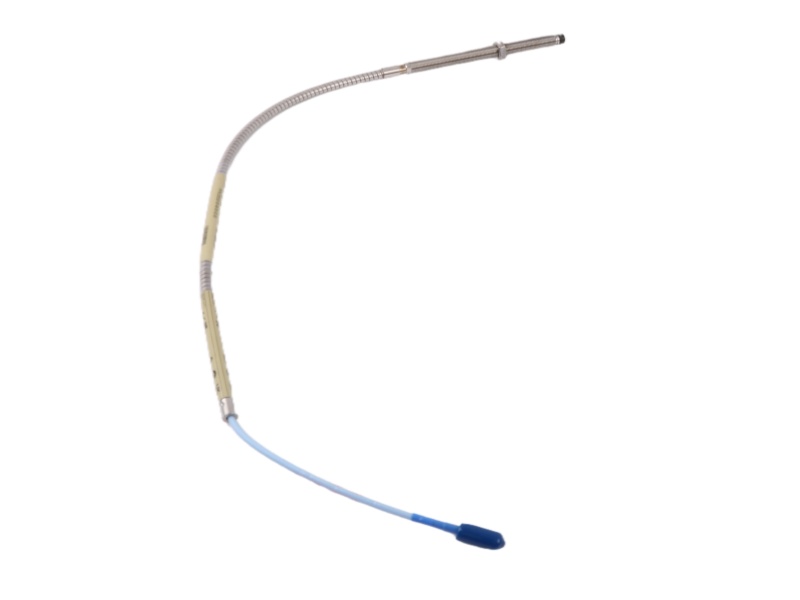

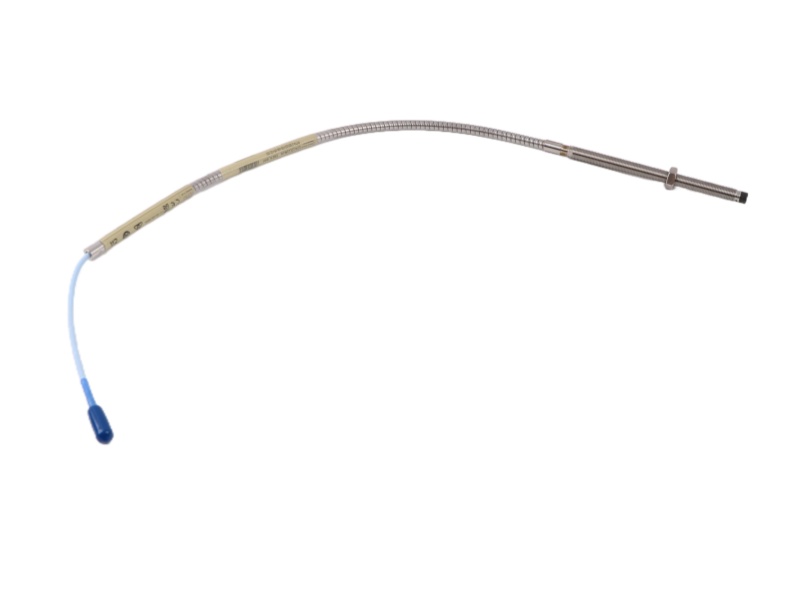

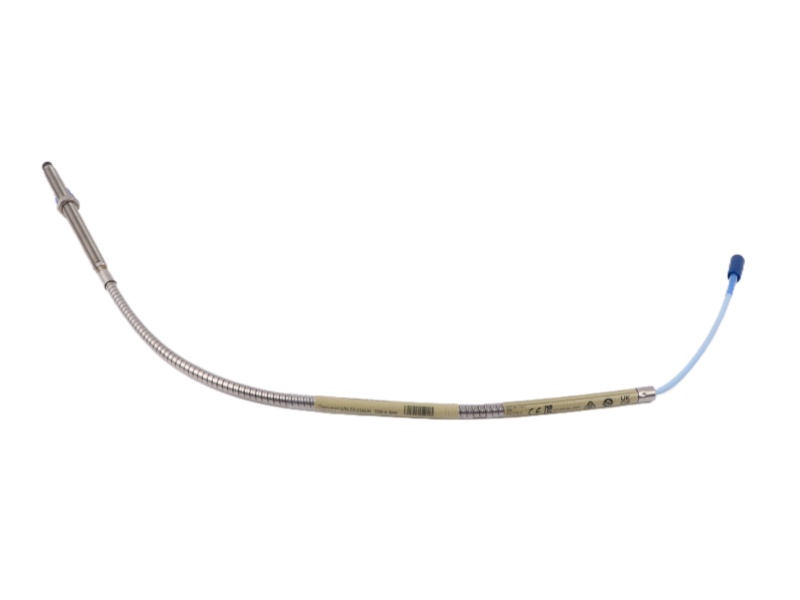

The Proximity Probes 330102-00-43-05-02-05 is a high-precision 3300 XL 8 mm proximity probe designed for accurate vibration and position monitoring in industrial machinery. Manufactured in the USA, this probe generates an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, making it suitable for both static (position) and dynamic (vibration) measurements. Its primary applications include monitoring fluid-film bearing machines, providing Keyphasor reference signals, and measuring rotational speed, ensuring reliable performance in critical industrial systems.

The 3300 SERIES BENTLY NEVADA 330102-00-43-05-02-05 is part of the 3300 XL 8 mm system, which delivers advanced eddy current proximity transducer performance. The standard 5-meter configuration fully complies with API 670 (4th Edition), meeting stringent requirements for mechanical design, linear range, accuracy, and temperature stability. Complete interchangeability of probes, extension cables, and Proximitor sensors eliminates the need for individual component matching or bench calibration, simplifying installation and maintenance across diverse applications.

Each Probes 330102-00-43-05-02-05 Bently Nevada component is backward compatible and can be interchanged with non-XL 3300 series 5 mm and 8 mm transducer components. This includes compatibility with the 3300 5 mm probe, which is ideal for applications where an 8 mm probe may be too large for the available mounting space.

The Bently 3300 XL 8 mm 330102-00-43-05-02-05 features the patented TipLoc molding method for a stronger bond between the probe tip and body, and the CableLoc design provides 330 N (75 lbf) pull strength to secure the probe cable. Optional FluidLoc cables prevent leakage of oil and other liquids, ensuring system reliability. 330102-00-43-05-02-05 PLC Cable Bently Nevada operates optimally between +18°C and +27°C with a -24 Vdc power supply and a 10 kΩ load, providing consistent performance in industrial environments.
