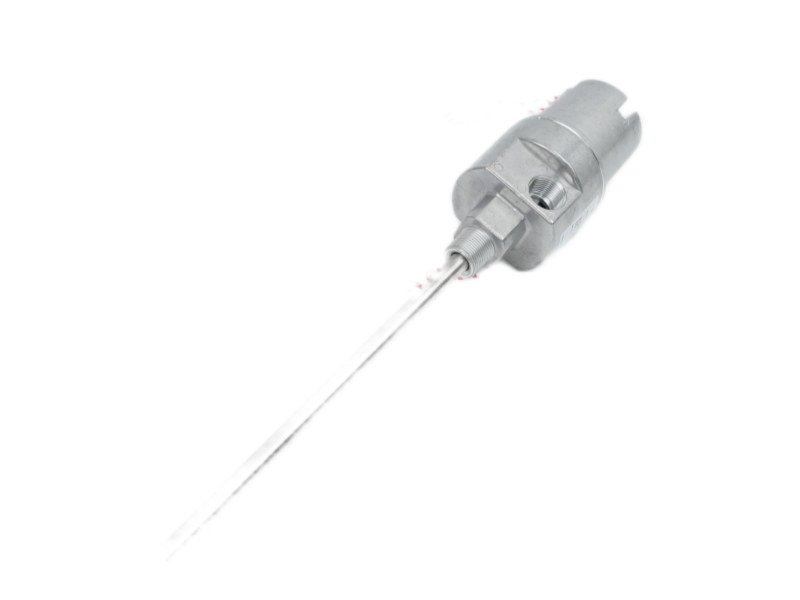

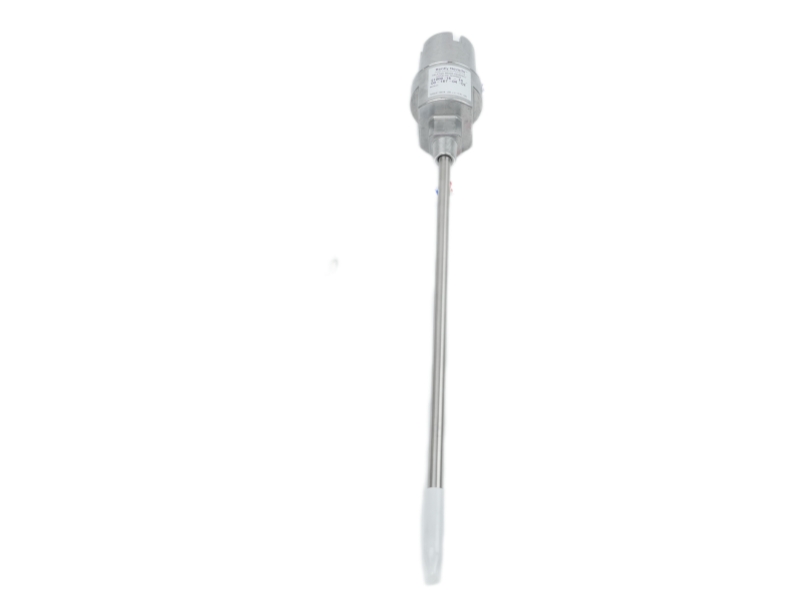

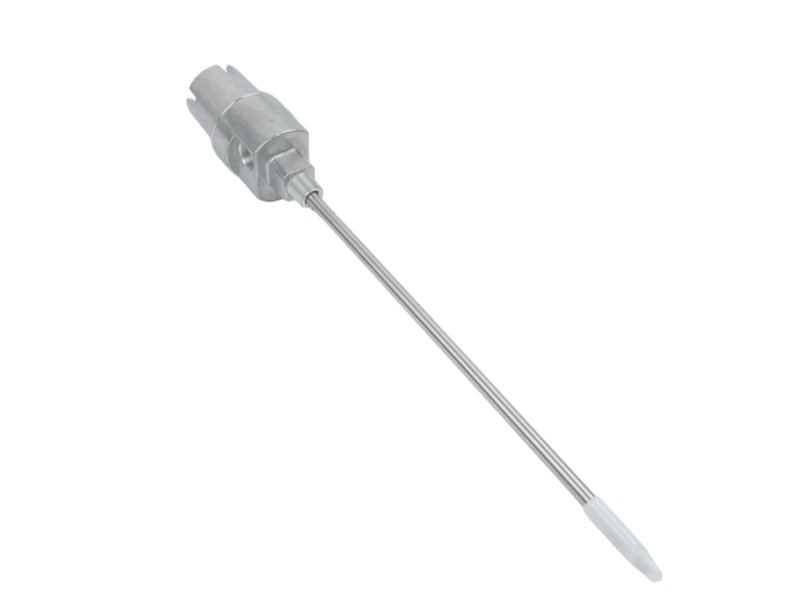

Long-reach aluminum proximity probe housing assembly configured with a 3300 XL 8 mm probe and 1.0 m probe cable.
| Probe | 3300 XL 8 mm | Cable | 1.0 m |
| Standoff | None | Penetration | 16.7 in (approximately 424 mm) |
| Fitting | One 3/4-14 NPT plug | Mounting | 3/4-14 NPT |
The combined standoff and penetration dimension exceeds 300 mm. The official housing guidance requires sleeve support near the probe to prevent resonance in unsupported long sleeves.
Material: aluminum body with 304 stainless-steel sleeve. Typical mass: 1.1 kg without fittings.
| Stage | What we confirm |
|---|---|
| Condition | Brand-new unit, checked against the quoted part number |
| Warranty | 12 months under written quotation terms |
| Exact-suffix review | Model, ordered options, compatibility and quantity reviewed before dispatch |
| Packing | Connector, probe tip, cable or housing protected for international shipment |
| Shipping | Lead time and tracking stated in the quotation |
| Returns | Return authorization handled under written terms after receipt review |
Confirm manufacturer, complete suffix, revision and system compatibility before ordering.
