IC200CHS022L Product datasheet
|
Model number: |
IC200CHS022L |
|
Module Type： |
Universal Backplane |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
General Electric |
|
Lead time： |
In Stock |
|
Weight: |
0.9 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
20x11.5x5.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC200CHS022L Functional Description

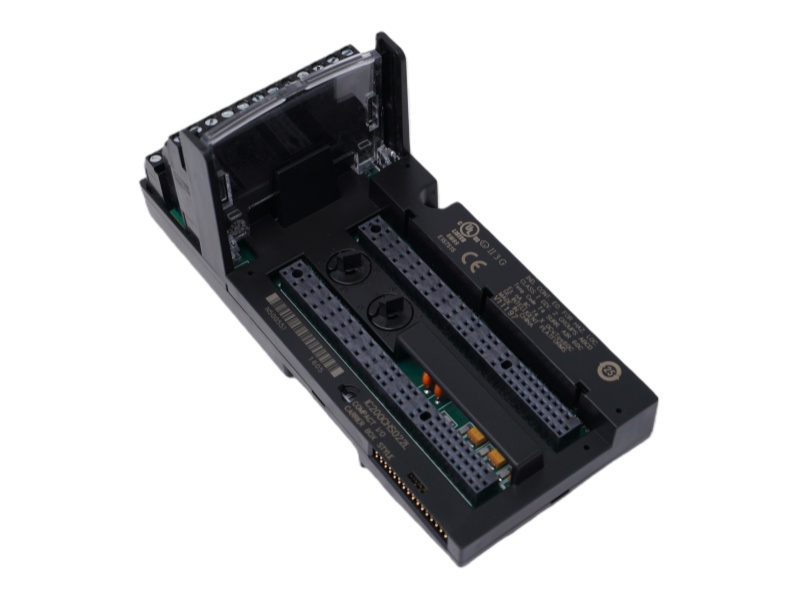

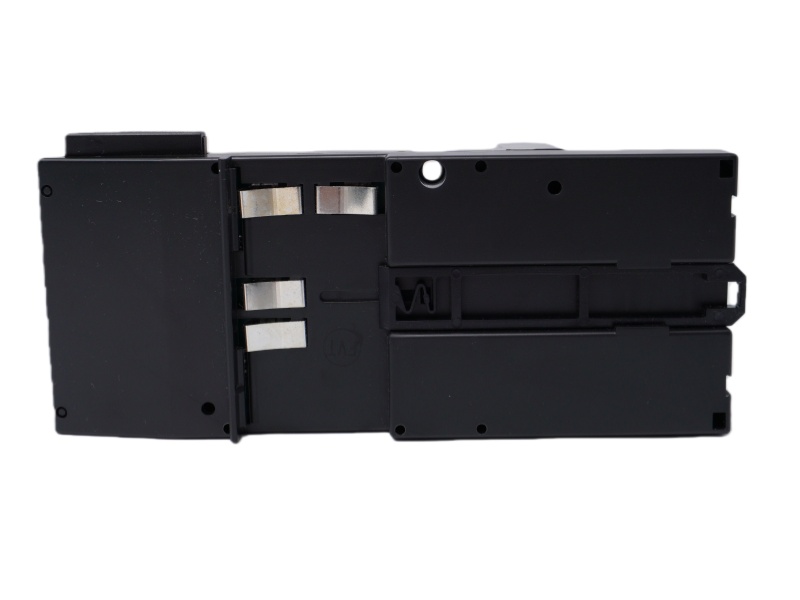

The General Electric Compact Carrier I/O Box IC200CHS022L is a fundamental component within the VersaMax PLC system, serving as a dedicated I/O carrier.
This specific model, the IC200CHS022L I/O Carrier General Electric, features 36 IEC box-style terminals designed to provide secure mounting, reliable backplane communication, and efficient field wiring for a single I/O module. A key characteristic of the GENERAL ELECTRIC Compact I/O VersaMax IC200CHS022L is its vertical module mounting orientation, which optimizes space utilization on a standard DIN rail.
Engineered for straightforward installation, the IC200CHS022L GE Compact Carrier I/O Box easily snaps onto a 7.5mm x 35mm DIN rail, though panel mounting is recommended for environments with significant vibration.
The design of the IC200CHS022L General Electric in stock incorporates user-friendly features such as easily-set keying dials to prevent incorrect module installation and carrier-to-carrier mating connectors that eliminate the need for additional backplane cabling. These features collectively enhance installation speed and system reliability in diverse industrial automation settings.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IS200VCRCH1BBC |
GE |
IS200TSVCH2AJE |
GE |
IS200TPROH1BCB |
|
GE |
IS200VCRCH1BBB |
GE |
IS200TSVCH1AEC |
GE |
IS200TGENH1A |
|
GE |
IS200VAICH1DBC |
GE |
IS200TSVCH1ACB |
GE |
IS200TDBSH2A |
|
GE |
IS200VAICH1DAB |
GE |
IS200TRTDH1CC |
GE |
IS200TBTCH1CBB |
|
GE |
IS200VAICH1DAA |
GE |
IS200TRPGH1BDE |
GE |
IS200TBCIH1BCE |
|
GE |
IS200VAICH1CBA |
GE |
IS200TRLYH1BHH |
GE |
IS200TBCIH1BBC |
|
GE |
IS200TVIBH2BCC |
GE |
IS200TRLYH1BGG |
GE |
IS200TBAIH1CDD |
|
GE |
IS200TVIBH2BBB |
GE |
IS200TRLYH1BGE |
GE |
IS200TBACIH1B |
|
GE |
IS200TTURH1BED |
GE |
IS200TRLYH1BED |
GE |
IS200TAMBH1ACB |
|
GE |
IS200TSVOH1BDC |
GE |
IS200TREGH1BDC |
GE |
IS200STAOH2AAA |

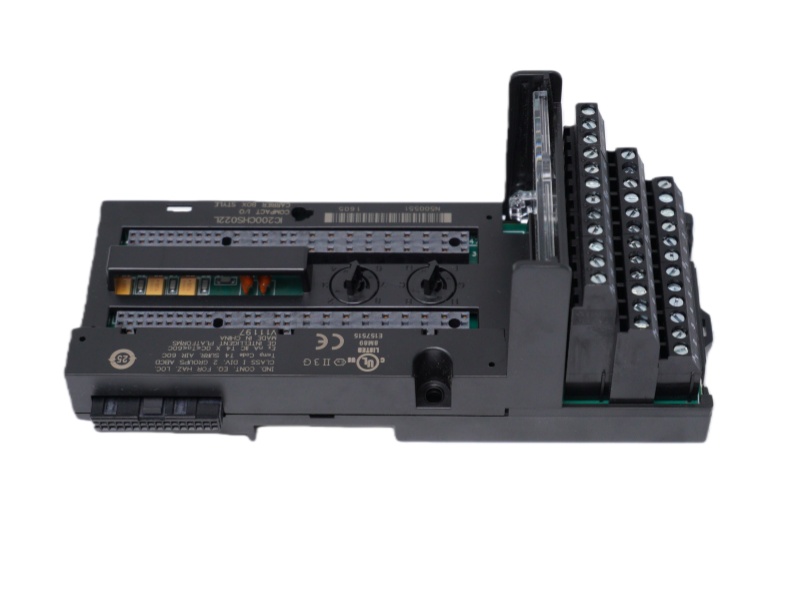

Compact Box-Style I/O carrier Features
The Compact Box-Style I/O carrier supports wiring for up to 32 I/O points and 4 common/power connections.
Easily-set keying dials to assure installation of the correct type of module on the carrier. Keys are set to match the keying on the bottom of the module. A complete list of module keying assignments is included in appendix D.
Carrier-to-carrier mating connectors for quick installation of the backplane connection with no additional cables or tools needed.
Module latch hole for securely fastening the module to the carrier.
A printed wiring card provided with each I/O module can be folded and inserted in the built-in card holder.
