8102-HO-IP Product datasheet

8102-HO-IP Functional Description

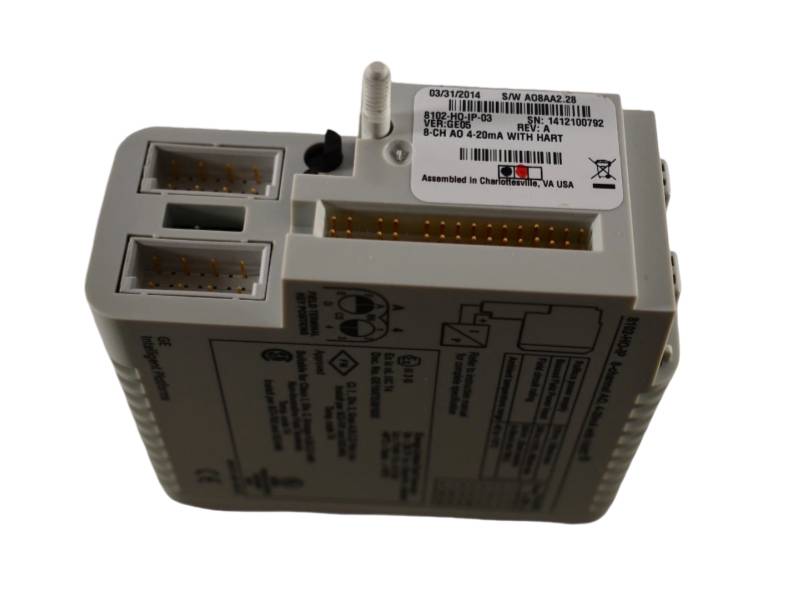

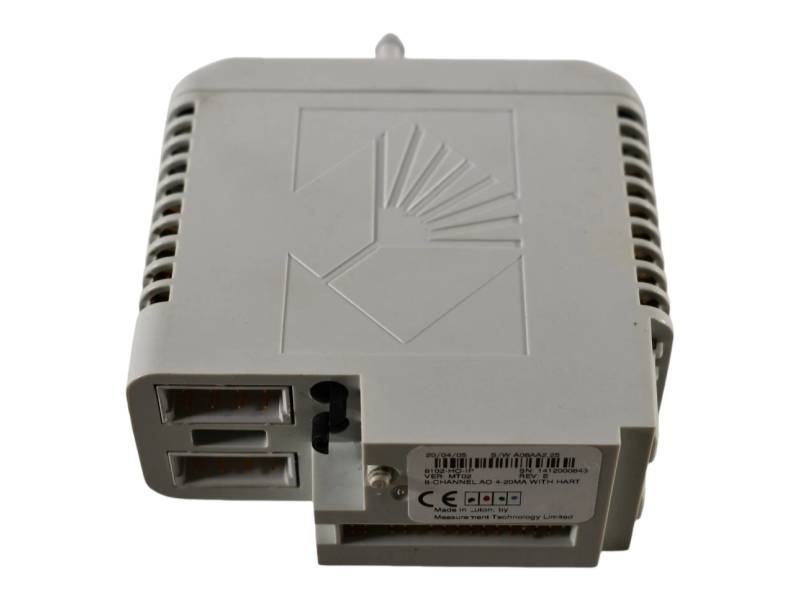

The 8000 Series I/O 8102-HO-IP General Electric stands as a robust 8-channel analog output module engineered for demanding industrial applications. This versatile module delivers precise 4-20 mA current outputs with exceptional ±0.25% accuracy and incorporates comprehensive HART communication protocol support. Each channel of the Analog Output Module GE 8102-HO-IP features advanced diagnostic capabilities including open circuit detection, ensuring reliable operation in critical process control scenarios.

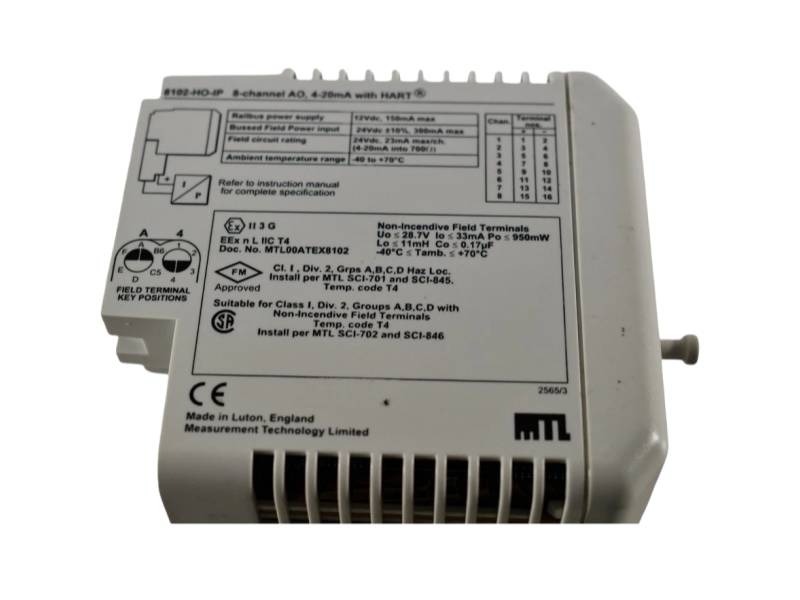

Designed with safety as a priority, the 8102-HO-IP GE Analog Output Module carries FM non-incendive certification for hazardous area installations. The module's field circuits maintain safe electrical parameters with maximum values of 28.7V Voc and 33mA Isc. This safety certification, combined with its compact 42mm form factor, makes the module suitable for space-constrained control panels where reliable signal output is essential.

The integration of HART pass-through functionality within the 8102-HO-IP I/O MODULES General Electric enables sophisticated device configuration and monitoring capabilities. This feature allows seamless communication with smart field instruments while maintaining the module's fast 25ms response time for standard analog signals. The 12-bit resolution ensures precise control output for demanding applications such as valve positioning and remote indicator systems.

With its bussed 24V DC field power design and Railbus connectivity, the GENERAL ELECTRIC Fanuc 8102-HO-IP simplifies system integration while maintaining electrical isolation between channels and the communication bus. This carefully engineered module represents GE's commitment to delivering robust, feature-rich I/O solutions that meet the rigorous demands of modern industrial automation environments, particularly in sectors requiring hazardous area compliance and reliable analog output performance.
