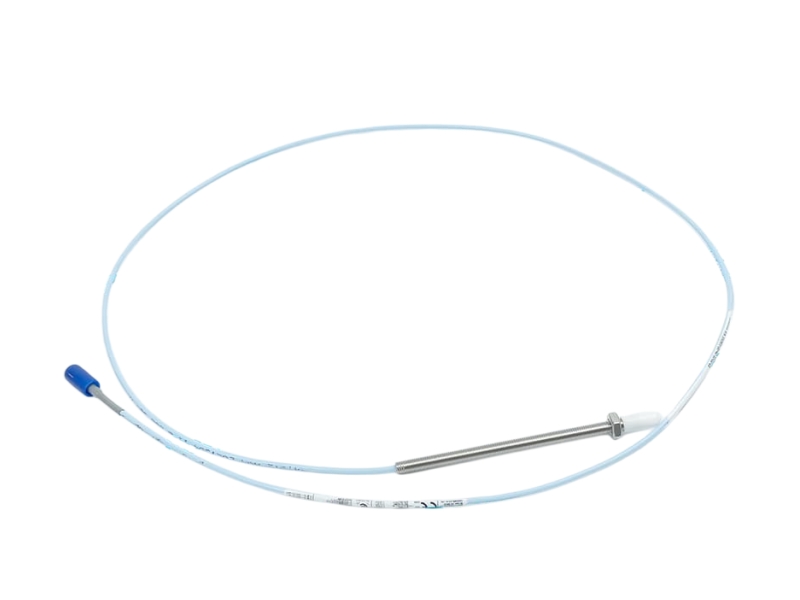

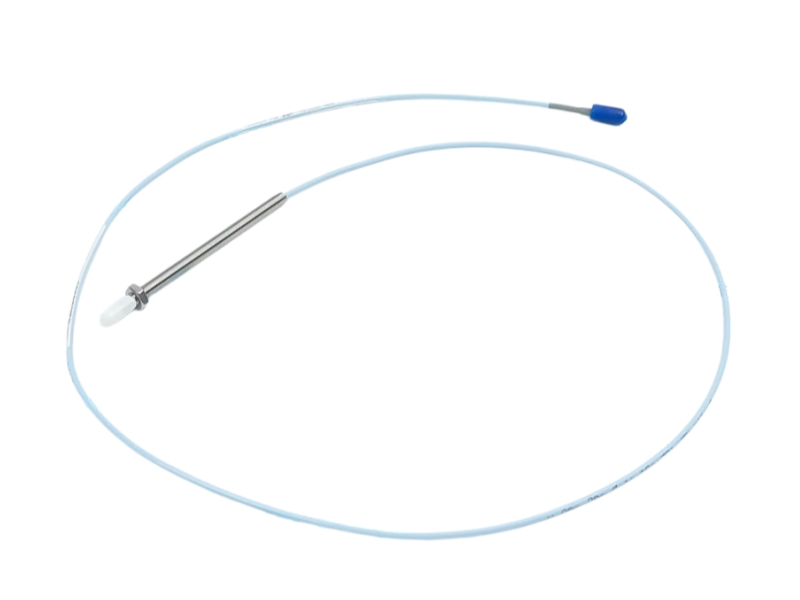

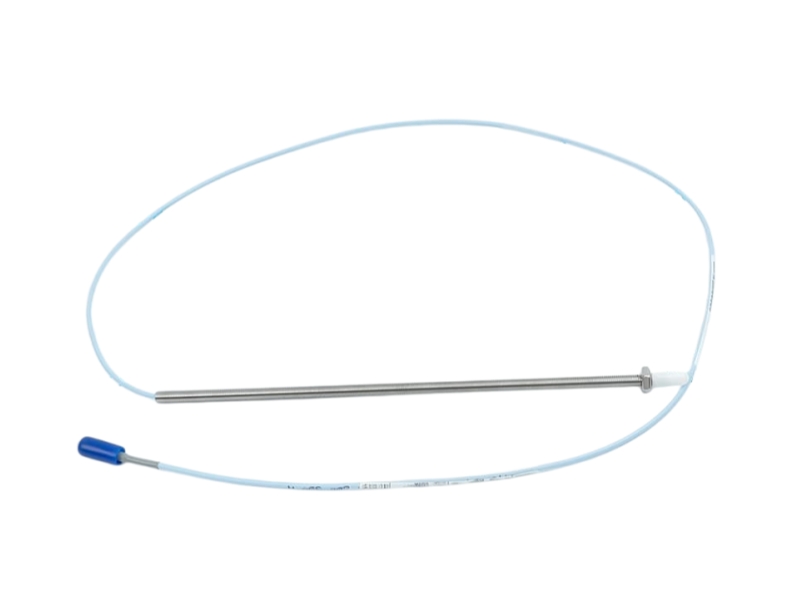

Bently Nevada 330901-00-14-10-02-00

3300 NSv proximity probe for tight-clearance machinery monitoring

Key Product Information

Product Overview

The 330901-00-14-10-02-00 is a specific 3300 NSv probe configuration for installations where counterbore, side-view or rear-view clearance can restrict standard 5 mm or 8 mm proximity probes. In a complete 3300 XL NSv transducer system, the probe supports non-contact measurement on fluid-film bearing machines and other rotating equipment with small targets or limited installation space.

The wider NSv system has a nominal average scale factor of 7.87 V/mm (200 mV/mil) and a 1.5 mm (60 mil) linear range under the manufacturer’s stated system test conditions. These are system-level specifications; field performance depends on the matched probe, extension cable, Proximitor Sensor, target material, gap and installation geometry.

Applications

• Radial vibration and radial position measurement on fluid-film bearing machines
• Axial or thrust position measurement on suitable flat targets
• Tachometer and zero-speed measurement
• Phase-reference and Keyphasor signal generation
• Small-shaft and restricted-clearance compressor monitoring

Compatibility and Revision Notice

Before ordering, compare the full suffix 330901-00-14-10-02-00 with the installed probe label and drawings. Confirm the 1.0 m probe length plus extension-cable length equals the Proximitor Sensor system length. Also verify target material, thread, cable type, connector, approval requirement, hardware revision and original equipment photos. Components from 3000-series or 7000-series 190 systems are not automatically interchangeable with NSv components.

Condition, Inspection and Quality Control

The supplied condition is defined only by the written quotation and order. Incoming checks can include complete part-number verification, label and serial-number recording, connector and cable inspection, housing and thread inspection, and functional testing where suitable equipment and test scope are available. Product and label photos may be requested before shipment.

Technical Notes for Installation

• Keep ClickLoc connectors clean, dry and protected from contaminants.
• Set and verify the probe gap against the correct target material and system documentation.
• Route the probe cable to avoid crushing, sharp bends, abrasion and excessive tension.
• Observe electrostatic-discharge precautions when handling connected system electronics.

FAQ

Is 330901-00-14-10-02-00 currently available?
Availability and lead time change. Send the full part number and quantity for a current check.

What exact configuration does this suffix identify?
It identifies the non-armored 1/4-28 UNF 3300 NSv probe with a 1.4 in case, 1.0 m total length, standard cable, ClickLoc connector and no approval option.

How do I confirm system compatibility?
Provide the existing probe, extension-cable and Proximitor Sensor labels, total system length, target material and equipment photos.

Can you ship internationally?
Worldwide shipping options can be quoted according to destination, package size, weight and trade terms.

What warranty is provided?
The applicable limited warranty period and scope are stated in the written quotation or order confirmation.

Can label photos be supplied before shipment?
Yes, request product and label photos when submitting the inquiry so the available unit can be reviewed.

Related Products and Internal Links

Related 3300 XL NSv components include the 330930 extension-cable family and 330980 Proximitor Sensor family. Also review the Bently Nevada 330877-80-36-00 extension cable and the Stockoems services page. A related part number is not a guaranteed substitute; compatibility must be confirmed for the exact system.
