Rugged 100 mV/g seismic transducer for machinery casing vibration.

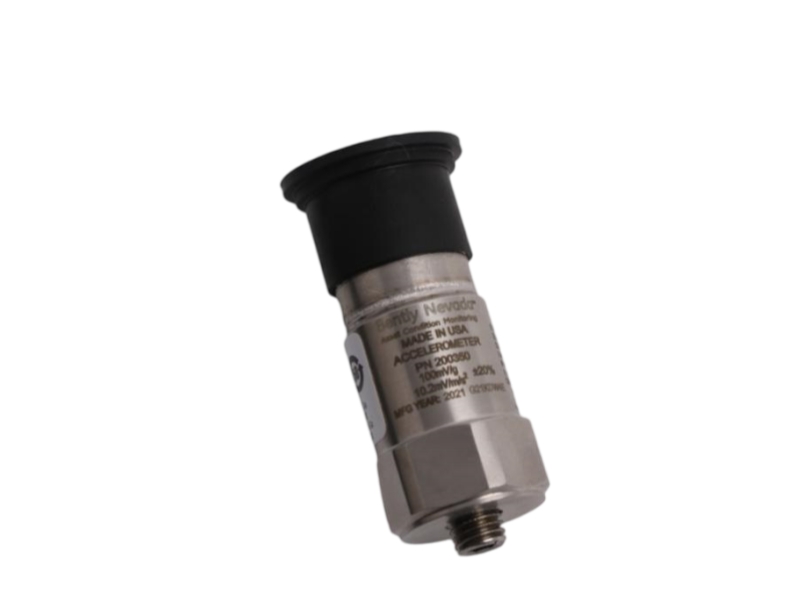

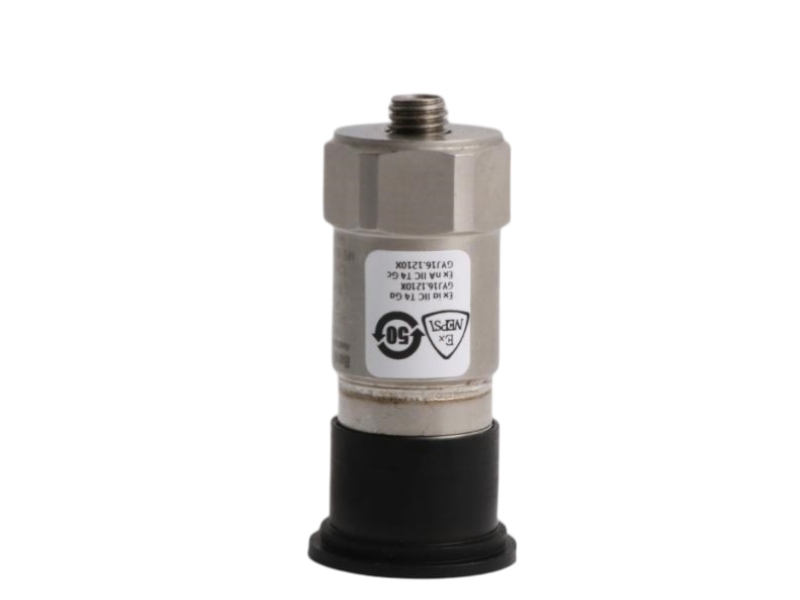

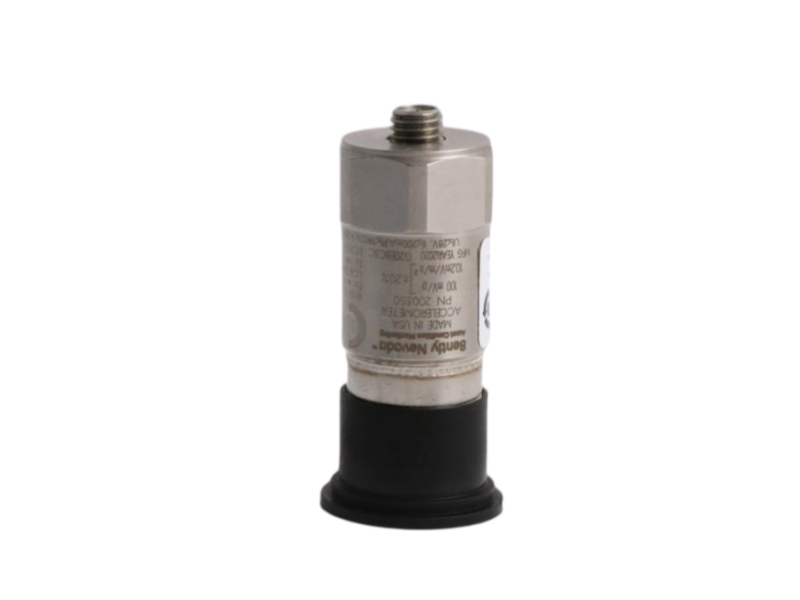

Bently Nevada 200350-00-00-00 is a general-purpose, case-mounted accelerometer for machinery casing vibration measurement. Its hermetically sealed stainless-steel housing contains a piezoelectric sensing element and a top-mounted 2-pin MIL-C-5015 connector. The complete code specifies the standard 1/4-28 stainless-steel mounting stud with brass tip, 100 mV/g sensitivity with ±20% tolerance, and no approval option. The sensor supports a ±50 g measurement range and 0.5 Hz to 10 kHz frequency range. It is designed for compatible constant-current seismic input cards, with positive excitation required for this model.
Condition, availability and warranty are Stockoems commercial information and are not manufacturer commitments.
Match the complete 200350-00-00-00 code, mounting stud, positive excitation polarity, 18 to 28 Vdc constant-current input, 2-pin connector, cable and monitoring card. This model must not be used with negative excitation voltage. Review the mounting surface and torque before replacement.
It is a general-purpose, case-mounted accelerometer configured with a standard 1/4-28 stud, ±20% sensitivity tolerance and no approvals.
The 200350 configuration provides 100 mV/g sensitivity with ±20% tolerance.
The official specification gives 0.5 Hz to 10 kHz at ±3 dB and a ±50 g measurement range.
Use positive 18 to 28 Vdc constant-current excitation from 2 to 20 mA; do not use negative excitation.
Verify the complete code, mounting stud, connector, cable, input-card compatibility, excitation polarity and installation surface.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
A maintenance-route workflow for identity, compatibility, inspection, packing, shipment and after-sales communication.
Compare the complete 200350-00-00-00 code, label, stud, tolerance and approval fields before commercial confirmation.
Review visible condition, stainless-steel case, mounting stud, connector and available label images.
Coordinate engineering review of positive excitation, constant-current input, cable, frequency range and monitoring card.
Protect the sensing body, integral mounting stud and 2-pin connector for transit.
Prepare agreed documents, coordinate worldwide shipping and provide tracking after dispatch.
Maintain written warranty, return-authorization and response channels for documented issue review.
Stockoems combines complete-part-number discipline, label-based inspection coordination, industrial compatibility questions, protective packaging, export-document preparation and one communication path from initial review through shipment tracking and after-sales handling.
Look for exact model verification, clear condition terms, current product and label photos, documented compatibility questions, traceable paperwork, protective packing procedures and written after-sales terms.
Request complete suffix details, readable labels, probe and connector views, agreed condition, packaging method, warranty wording, destination review and the return-authorization process.
Risk signals include altered or incomplete codes, refusal to provide available label photos, unsupported compatibility claims, guaranteed inventory without inspection, unclear warranty wording and pressure to approve before documentation review.
Check the 1/4-28 stud, 100 mV/g ±20% sensitivity, positive 18 to 28 Vdc excitation, constant-current input, 2-pin connector, cable and monitoring card.
