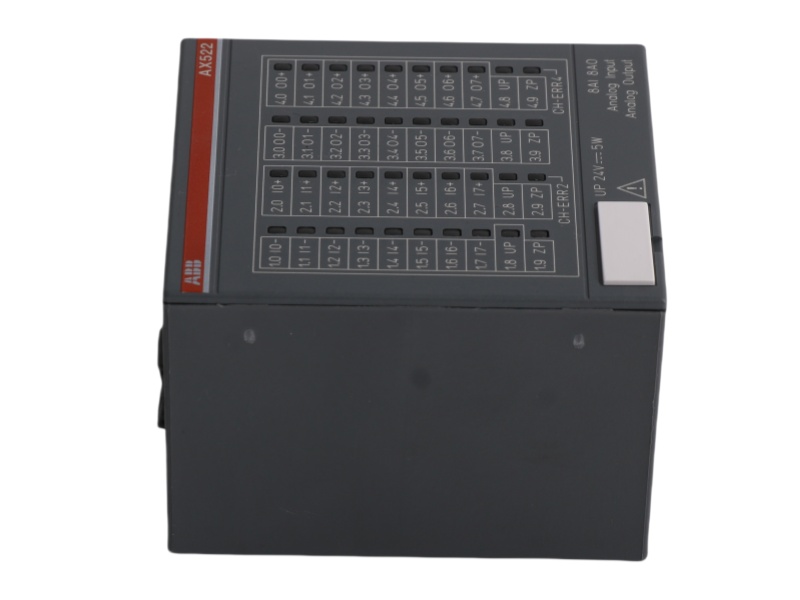

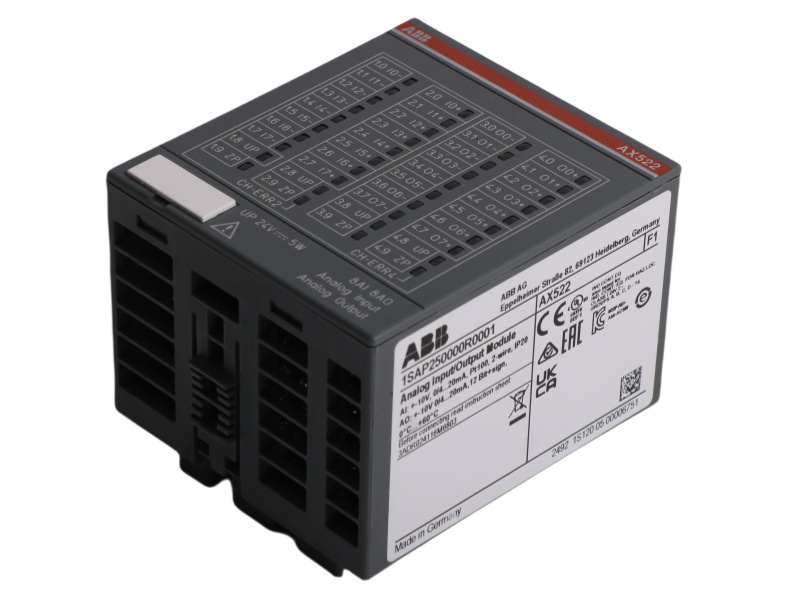

ABB AX522 1SAP250000R0001 Analog Input/Output Module

Inquiry now

AX522 1SAP250000R0001 Product datasheet

Model number:	AX522 1SAP250000R0001	Module Type：	Analog Input/Output Module
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	0.14 kg	HS CODE：	8537101190
Dimension:	8.5x7x7cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

AX522 1SAP250000R0001 Functional Description

The AX522 ANALOG INPUT/OUTPUT MODULE ABB is a versatile analog input/output module designed for integration with ABB’s AC500 automation platform. Featuring 8 analog inputs and 8 analog outputs, this module supports a variety of signal types including voltage, current, and RTD sensors such as PT100, PT1000, and NI1000. With 12-bit resolution plus sign, ABB AX522 1SAP250000R0001 Analog Input/Output Module provides precise signal measurement and output control, making it suitable for complex industrial applications.

AX522 1SAP250000R0001 ABB Analog I/O Module offers 4 current outputs (0–20 mA / 4–20 mA) and 4 voltage outputs (up to ±10 V), enabling flexible analog signal transmission. The inputs support ranges from -10 to +10 V and 0 to +10 V, ideal for monitoring and control in process automation, building systems, or manufacturing environments.

Physically, the ABB AX522 1SAP250000R0001 Module is compact (54 x 76 x 68 mm) and lightweight (approx. 0.13 kg), allowing easy DIN rail mounting with IP20 protection. It operates on 24 V DC power and is compatible with horizontal or vertical installation, with derating considerations in vertical setups.

Engineered for high reliability and seamless integration, the 1SAP250000R0001 PLC Module ABB enhances I/O capacity in scalable automation systems, supported by ABB’s Control Builder PS501-PROG software environment.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

ABB	YPR104B YT204001-EH	ABB	YPP110A 3ASD573001A1	ABB	YPK107E 3ASD489301A410
ABB	YPQ202A YT204001-KB	ABB	YPP109A YT204001-HS	ABB	YPI103E YT204001-FB
ABB	YPQ201A YT204001-KA/5	ABB	YPP109A 48931006-AV	ABB	YPH108B/SPC
ABB	YPQ112B 63986780	ABB	YPN107A YT201001-DM	ABB	YPH107A 3ASD573001A9
ABB	YPQ112A 61253432	ABB	YPM106E YT204001-FN	ABB	YPH107A
ABB	YPQ112 61253432	ABB	YPM102E YT204001-FL	ABB	YPG110E YT204001-FD
ABB	YPQ111A 61161007	ABB	YPK113A 61002774	ABB	YPG108E YT204001-FV
ABB	YPQ110A 3ASD573001A5	ABB	YPK113A	ABB	YPG106A YT204001-BL
ABB	YPQ104A YT204001-CV	ABB	YPK112A 3ASD573001A13	ABB	YPC115 61037454
ABB	YPQ102F YT204001-KF	ABB	YPK112A 3ASD5730011A13	ABB	YPC111A 61004955

ABB AX522

The ABB AX522 is a high-performance analog input/output module designed for seamless integration into ABB’s AC500 PLC system. It features 8 analog inputs and 8 analog outputs, supporting voltage, current, and RTD signals such as PT100, PT1000, and NI1000. With 12-bit resolution plus sign, the AX522 ensures accurate signal processing for a wide range of industrial applications. The module operates on a 24 V DC power supply and is DIN rail mountable, offering compact dimensions and IP20-rated protection. The ABB AX522 provides a flexible interface for monitoring and control, supporting both current (0–20 mA / 4–20 mA) and voltage (±10 V) signals. Ideal for use in factory automation, process control, and building systems, the ABB AX522 delivers robust performance and easy configuration using ABB’s Control Builder software.
