2-wire vibration transmitter with 4-20 mA output for proportional machinery vibration monitoring

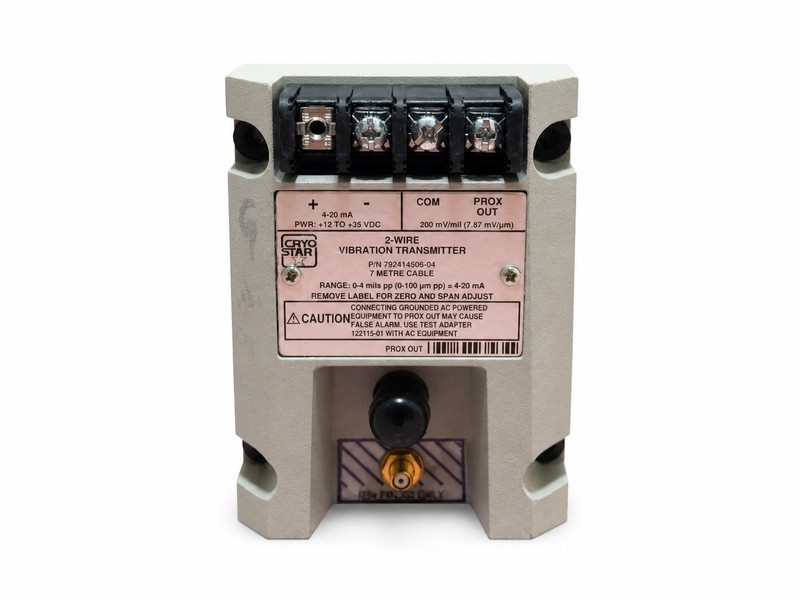

The Bently Nevada 792414506-04 is identified as a 2-wire vibration transmitter. Available product-label information indicates a 0-4 mils pp (0-100 µm pp) measurement range, 4-20 mA loop output, +12 to +35 VDC power and an NSv probe connection.
Do not select a replacement by appearance or output signal alone. Verify the transmitter label, probe and cable identifiers, measurement range, power, mounting and approval markings before ordering.
Important: Probe, extension cable and accessories are not assumed to be included unless individually listed in the quotation.
Final configuration must be confirmed from the actual supplied unit, complete label photographs and the formal quotation.
| Field | Identification |
|---|---|
| Part Number | 792414506-04 |
| Brand Marking | Bently Nevada |
| Product Type | 2-wire vibration transmitter |
| Measurement Range | 0-4 mils pp / 0-100 µm pp, as identified on the label |
| Analog Output | 4-20 mA |
| Supply Voltage | +12 to +35 VDC |

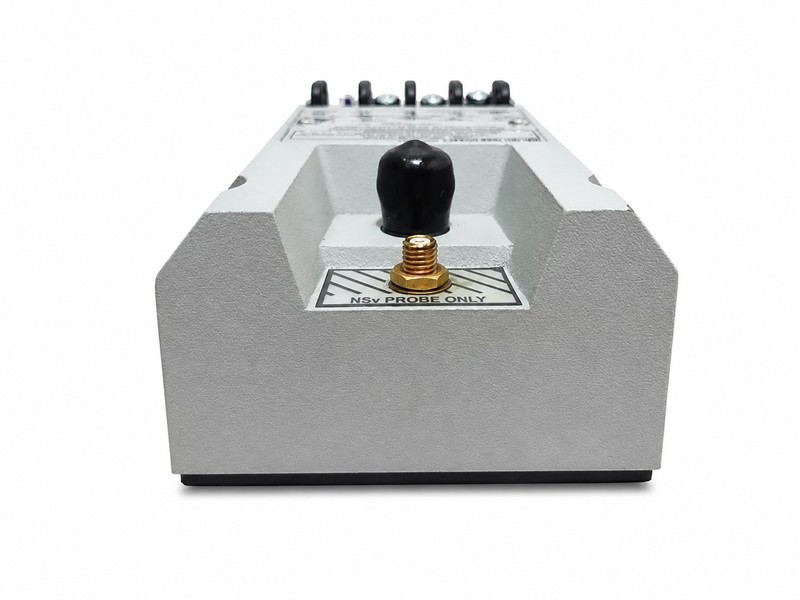

| Probe System | NSv; complete probe model verification required |
| Cable Identification | 7 m, based on available label information |
| Diagnostic Connection | PROX OUT, 200 mV/mil (7.87 mV/µm), as identified on the label |

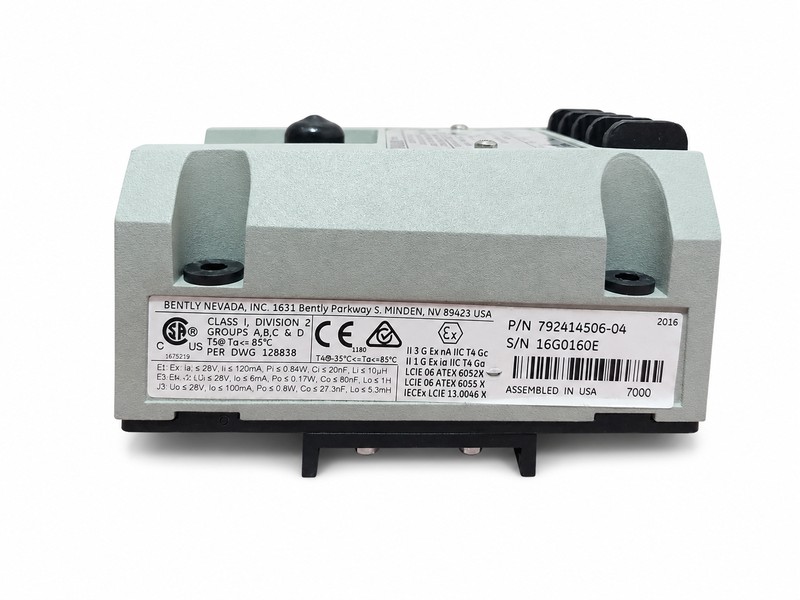

| Origin Marking | Reference label states “Assembled in USA” |
| Approval / Mounting | Confirm from the actual supplied unit and site requirements |
The following is general context for the Bently Nevada 990 vibration-transmitter family. It must not be treated as confirmation that every 990 feature, mounting option, diagnostic function or approval applies to OEM-numbered execution 792414506-04.
Can a standard 990 transmitter automatically replace 792414506-04?
No. Compare the complete label, measurement range, NSv probe system, cable configuration, mounting and approval markings before replacement.
Which photographs should I send?
Provide clear views of the front label, side nameplate, terminals, mounting arrangement, probe label and cable identification. Include the machine model or serial number when available.
Does the price include the probe and cable?
No supply scope should be assumed from the images. The transmitter, probe, cable and accessories must be listed separately in the formal quotation.
Can the 4-20 mA output connect directly to a PLC?
It is intended for a compatible input, but loop power, input configuration, grounding, wiring and alarm logic must be verified before installation.
How are stock, condition, lead time and warranty confirmed?
Send the required quantity, destination country and delivery date. These commercial terms will be stated in the quotation.
Send the installed transmitter, probe and cable labels, required quantity, destination country and requested delivery date. We will confirm configuration, supply scope, availability and lead time.
Please do not assume compatibility or included accessories until confirmed in writing.
We organize the inquiry around exact identification, written quotation conditions and traceable delivery support.
Review transmitter, probe, cable and machine labels.
Check range, power, mounting, wiring and approvals.
State price, availability, lead time, shipping and terms.
Provide export packing, shipping documents and tracking.
Prior authorization and inspection evidence are required. Configuration-specific or incorrectly ordered items may be restricted.
Send all label photos, installed machine serial number, quantity, destination and requested date for a focused response.
The complete models below were selected from the supplied model lists. They are related Bently Nevada monitoring components, not declared substitutes for 792414506-04.
| Complete model | Function | Selection note |
|---|---|---|
| 330930-045-02-00 | 3300 NSv extension cable | A complete NSv cable code from the supplied model list; verify total system length and connector requirements. |
| 330904-00-06-05-02-05 | 3300 NSv proximity probe | Confirm probe case, thread, cable, connector and approval against the installed system. |
| 330180-12-05 | 3300 XL Proximitor Sensor | Related vibration-monitoring component; not an automatic substitute for the OEM transmitter. |
| 330130-040-00-05 | 3300 XL extension cable | Confirm compatibility with the probe and Proximitor Sensor before ordering. |
| 330106-05-30-05-02-05 | 3300 XL proximity probe | Use the complete installed part number to verify probe configuration and system compatibility. |
Send the installed labels and required measurement range. We will organize the information needed for model review.
