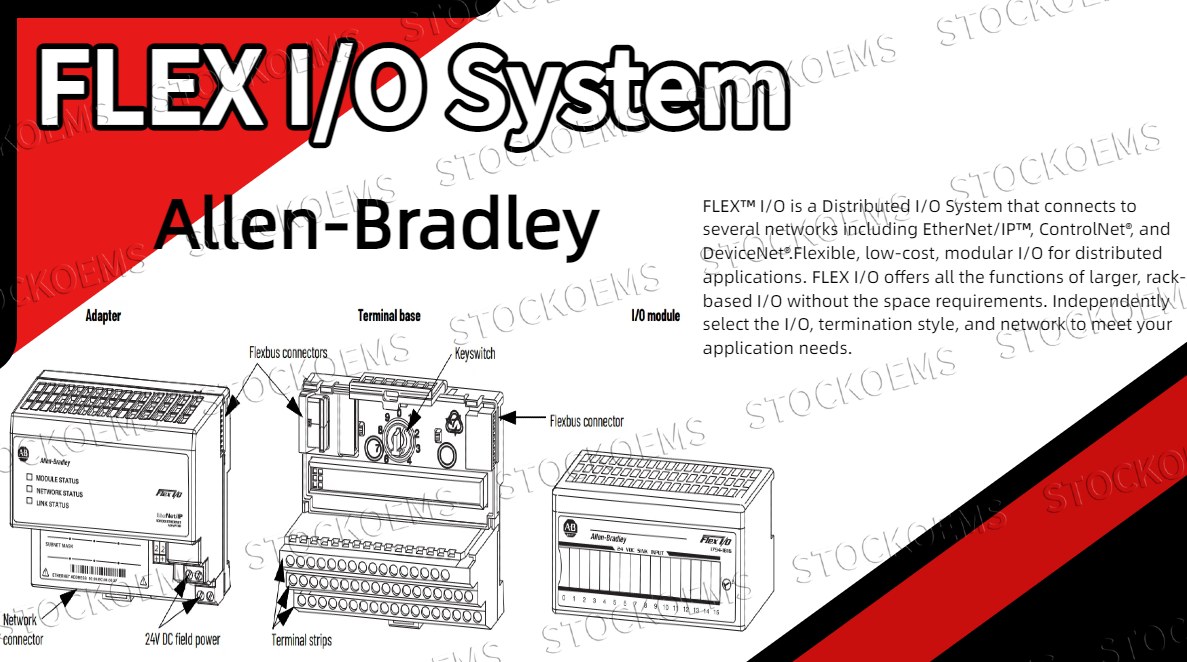

In today's industrial automation field, where ultimate efficiency and flexibility are paramount, the Allen-Bradley FLEX I/O System, with its innovative distributed design, is redefining the application boundaries of input/output solutions. Essentially a modular distributed I/O platform, it successfully condenses all the functions of traditional large rack-mount I/O into a highly compact, cost-effective modular unit, thus completely freeing up valuable space within the control cabinet. The core wisdom of its design lies in allowing engineers to independently and freely select the required I/O module type, field terminal block style, and the most suitable network communication protocol, such as EtherNet/IP™, ControlNet®, or DeviceNet®, according to actual needs. This unprecedented decoupling design means that each application can obtain a tailored optimal solution. A single network adapter can efficiently manage and coordinate the communication of up to eight I/O modules, supporting signal processing capabilities of up to 256 digital points or 96 analog points, and enabling arbitrary mixed configurations of digital and analog signals. This not only allows for the deployment of control points as close as possible to sensors and actuators in the field, significantly reducing cabling distances, but also builds an agile system foundation that can be easily expanded or adjusted according to changes in production processes.
Besides its flexible deployment, the Allen-Bradley FLEX I/O System excels in reducing total lifecycle maintenance costs. The system cleverly centralizes all field device wiring termination on pluggable terminal blocks, eliminating reliance on external terminal blocks and lengthy cables. Connecting field devices directly to the terminal blocks offers multiple tangible benefits: it significantly reduces the time window required for installation and commissioning, decreases material consumption and potential failure points from long-distance cabling, and significantly saves panel space in the central control cabinet. For factory maintenance teams, the system's "online maintenance" capability is a revolutionary advantage. In non-hazardous areas, maintenance personnel can safely plug in or replace faulty I/O modules without interrupting power to the system or affecting the operation of other modules, without touching completed field wiring or interrupting the overall system power supply. Furthermore, replacing a single terminal block requires no movement of adjacent units, further minimizing unplanned downtime. This maintenance-centric design philosophy makes system diagnostics, troubleshooting, and subsequent upgrades simpler and more direct than ever before, ensuring continuous stable production line operation and rapid response capabilities.
Facing the challenges of harsh industrial environments, the Allen-Bradley FLEX I/O System builds a robust reliability defense at the hardware level. Its terminal blocks offer multiple wiring options, including screw crimping, spring clamping, and cage spring clamping, enabling secure connections to two-, three-, or four-wire devices and ensuring long-term stable signal connections in the field. The system also offers options such as terminal blocks with fuses and D-Sub interfaces to meet specific protection and connection requirements. An adjustable mechanical key switch effectively prevents incorrect I/O modules from being inserted into configured terminal blocks, fundamentally avoiding configuration errors or equipment damage caused by misinsertion. The system supports cascading of field power supplies between adjacent terminal blocks, simplifying power cabling. Simultaneously, it allows for independent power supply to each terminal block, meeting the high-requirement application scenarios demanding electrical isolation. This hardware design, balancing flexibility and safety, combined with the system's embedded network diagnostics, provides users with comprehensive status visibility from field devices to the control network, crucial for predictive maintenance and ensuring long-term reliable system operation.
To meet the diverse needs of industrial scenarios, Allen-Bradley FLEX I/O Systems has further extended its product line with the FLEX I/O-XT™ series modules designed specifically for extreme environments. These XT modules, with their enhanced protective coating and wider operating temperature range, can confidently withstand harsh conditions involving corrosive gases, high humidity, dust, or fungal infestation. They meet multiple stringent international standards, including ANSI/ISA-S71.04 environmental levels G1 to G3, and exhibit excellent resistance to common industrial corrosive media such as hydrogen sulfide, sulfur dioxide, chlorine, and ammonia, making them a reliable choice in specialized industries such as chemical, metallurgical, mining, and marine. At the communication level, the system's openness is equally outstanding. It is not only deeply integrated into Rockwell Automation's integrated architecture but can also seamlessly connect to other open industrial networks such as PROFIBUS DP by selecting appropriate adapters, and is even compatible with traditional remote I/O networks. This multi-protocol support ensures that the FLEX I/O System can seamlessly integrate into hybrid factory networks, protecting existing investments and paving the way for a smooth evolution to more advanced industrial IoT architectures, truly realizing the investment value of "one-time deployment, long-term benefits."
Recommended model
| HBC65-Q7594 80026-088-01 | 1794-IB16 |
| 80026-096-01-R | 1785-L80C |
| 80026-088-01-R | 1794-IB16D |
| 22B-A8P0N104 | 1794-IB16XT |
| 1794-IE8 | 1794-IB8 |
| 1794-AENTRXT | 1794-OB16 |
| 1794-IR8 | 1797-TB3 |
