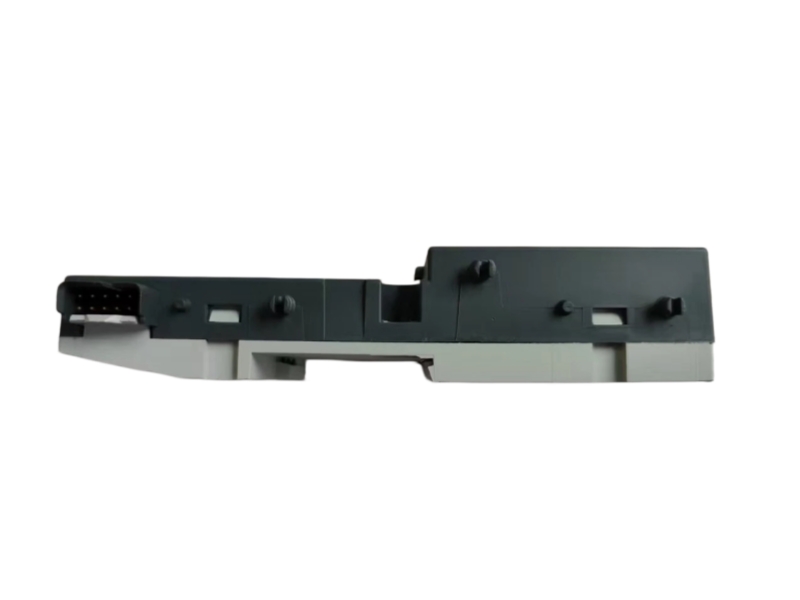

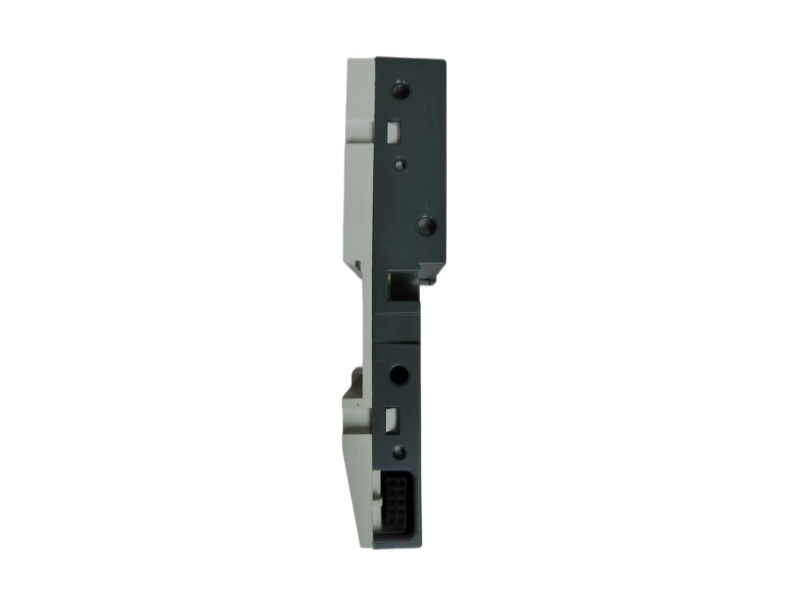

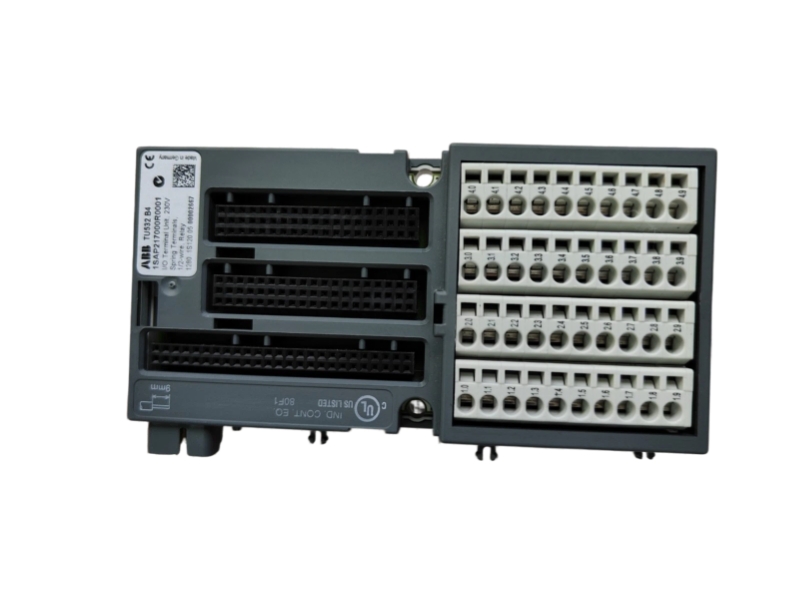

ABB TU532 S500 120/230 V AC Relay Spring-Terminal I/O Unit

ABB TU532 S500 Relay Spring-Terminal Base

Inquiry now

ABB • S500 / AC500

TU532 S500 120/230 V AC Relay Spring-Terminal I/O Unit

Structured mounting and field termination for documented ABB automation assemblies.

Product Summary

ABB TU532 is an S500 I/O terminal unit for AC500 modules using 115 to 230 V AC inputs or 120/230 V AC relay outputs. Its spring-terminal design supports front-access conductor connection across forty signal and process-supply terminals. The terminal unit carries the station I/O bus between adjacent devices and secures the inserted I/O module with mechanical locks, allowing module service without removing the fixed field wiring. TU532 is appropriate for modular control cabinets, relay I/O expansion and replacement projects where spring terminals are specified. Confirm the complete code, module type, field voltage, terminal assignment and mounting details before purchase.

Key Product Information

Manufacturer	ABB
Complete Part Number	TU532
Order Code	1SAP217000R0001
Product Type	S500 120/230 V AC Relay Spring-Terminal I/O Unit
Series	S500 / AC500
Connection Type	Spring terminals
Intended Modules	115–230 V AC input and 120/230 V AC relay-output modules
Terminal Count	40 terminals for signals and process supply
Maximum Channels	32 channels in 4 groups of 8
Maximum Terminal Voltage	300 V AC, subject to inserted-module limits
Maximum Permitted Current	3 A, subject to inserted-module and connector limits
Module Circuit Supply	Provided through the I/O expansion bus
Weight	200 g
Mounting Position	Horizontal or vertical
Product Condition	NEW
Country of Origin	SWEDEN
Warranty	With 1 year warranty
Shipping	Worldwide shipping arranged under written quotation terms

Installation and Verification Route

Confirm the standard version

Check that the requirement is TU532 rather than an -H or -XC variant.

Mount and ground the assembly

Install on the documented DIN rail or screw-mounting arrangement.

Wire the spring terminals

Connect conductors according to the inserted module terminal plan.

Lock and inspect the module

Seat both mechanical locks and verify voltage separation before energizing.

Typical Applications

Spring-terminal connection for S500 AC input modules
Relay-output wiring in AC500 control panels
Modular I/O expansion using front-access terminals
Replacement of an installed TU532 terminal unit

Compatibility and Revision Notice

Confirm TU532 and order code 1SAP217000R0001. Do not mix the standard TU532 with TU532-H, TU532-XC or TU532-H-XC. Verify the inserted I/O module, field voltage, spring-terminal conductor preparation, channel allocation and label photographs.

Procurement FAQ

What terminal technology is used by TU532?

TU532 uses spring terminals for front-access conductor connection.

What module voltage range is associated with TU532?

ABB identifies it for modules with 115–230 V AC inputs or 120/230 V AC relay outputs.

Is TU532 a hot-swap terminal unit?

No. The hot-swap version is identified separately as TU532-H.

How many terminals are provided?

The terminal unit provides forty terminals for signals and process supply.

What distinguishes TU532 from TU531?

TU532 uses spring terminals, while TU531 uses screw terminals.

Request TU532 Supply Verification

Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
