Structured mounting and field termination for documented ABB automation assemblies.

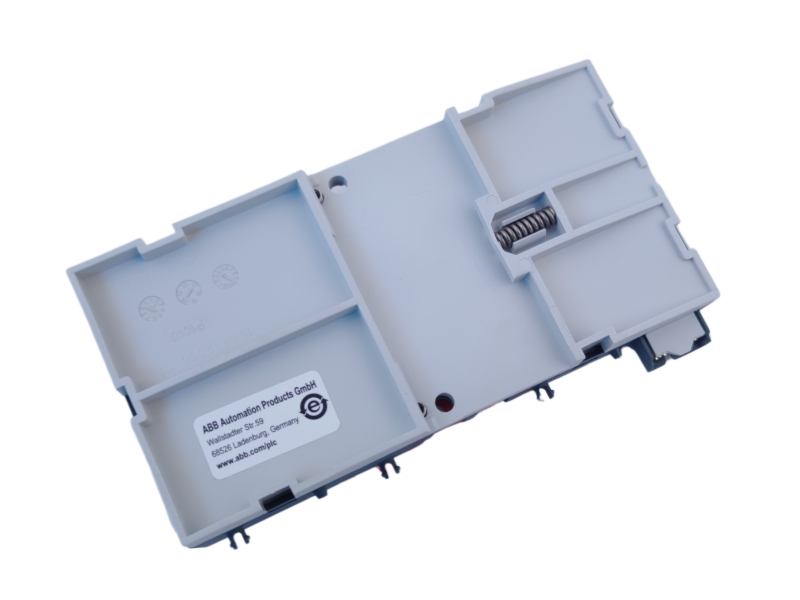

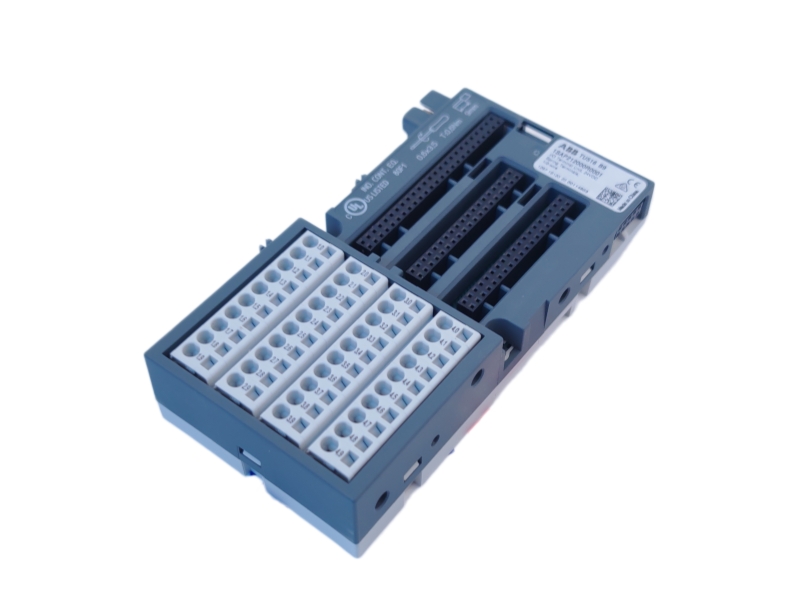

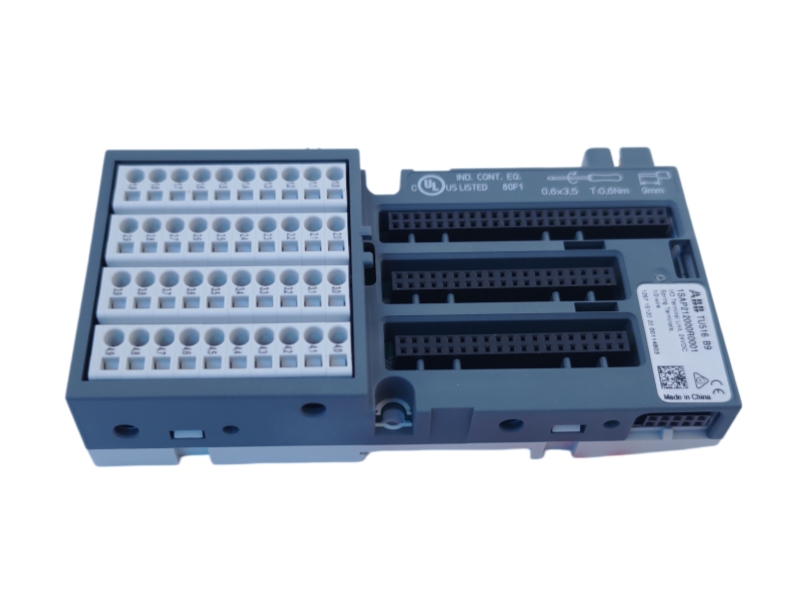

ABB TU516 is an S500 I/O terminal unit for analog and 24 V DC digital modules in AC500 automation assemblies. Its spring-terminal connection system provides field wiring through forty signal and process-supply terminals while the inserted I/O module interfaces with the station I/O bus. The terminal unit supports up to thirty-two channels arranged in four groups and permits an I/O module to be removed without disturbing the fixed field wiring. TU516 is suited to new panels, modular I/O extensions and maintenance replacement. Verify the exact model, inserted module, 24 V DC process supply, terminal assignments and mounting arrangement before ordering.
| Manufacturer | ABB |
|---|---|
| Complete Part Number | TU516 |
| Order Code | 1SAP212000R0001 |
| Product Type | S500 24 V DC Spring-Terminal I/O Terminal Unit |
| Series | S500 / AC500 |
| Connection Type | Spring terminals |
| Intended Modules | Analog and 24 V DC digital I/O modules |
| Terminal Count | 40 terminals for signals and process supply |
| Maximum Channels | 32 channels in 4 groups of 8 |
| Rated Voltage | 24 V DC |
| Maximum Total Current | 10 A |
| Dimensions | 67.5 × 135 × 30 mm |
| Weight | 200 g |
| Mounting Position | Horizontal or vertical |
| Product Condition | NEW |
| Country of Origin | SWEDEN |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping arranged under written quotation terms |
Confirm TU516 and order code 1SAP212000R0001. Do not confuse the standard version with TU516-H, TU516-XC or TU516-H-XC. Check the inserted I/O module, 24 V DC process supply, terminal assignment, DIN-rail clearance and original terminal-unit label.
TU516 uses front-access spring terminals.
The documented maximum is thirty-two channels arranged in four groups of eight.
ABB identifies TU516 for analog and 24 V DC digital I/O modules.
Yes. Field connections remain on the terminal unit when the inserted I/O module is removed.
No. The hot-swap model carries the separate TU516-H designation.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
