5464-643 Overview

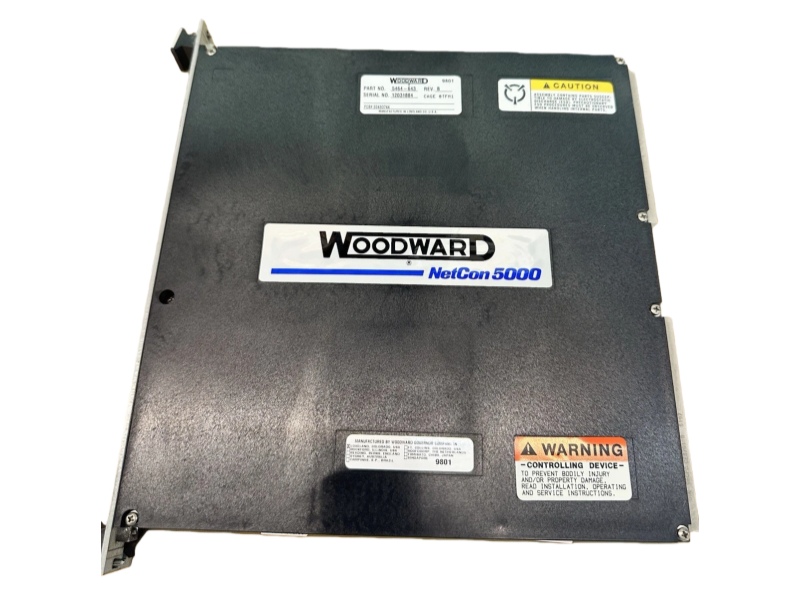

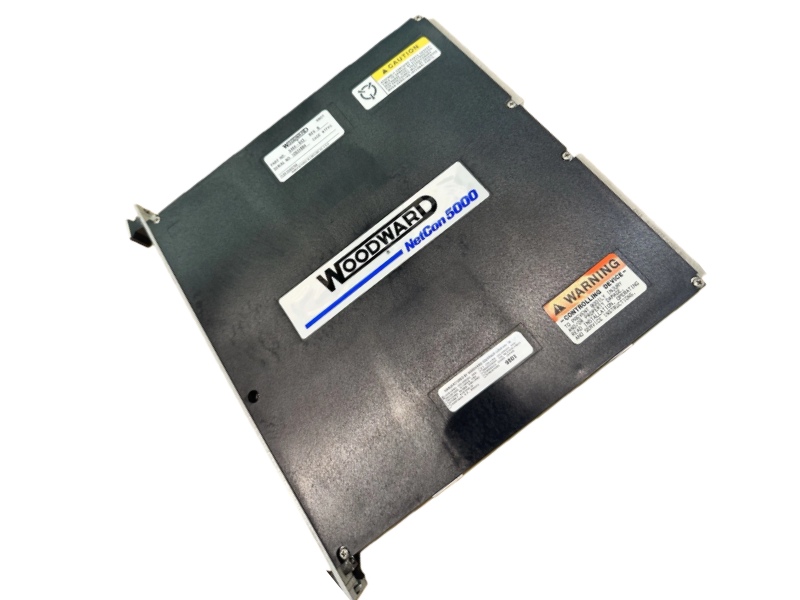

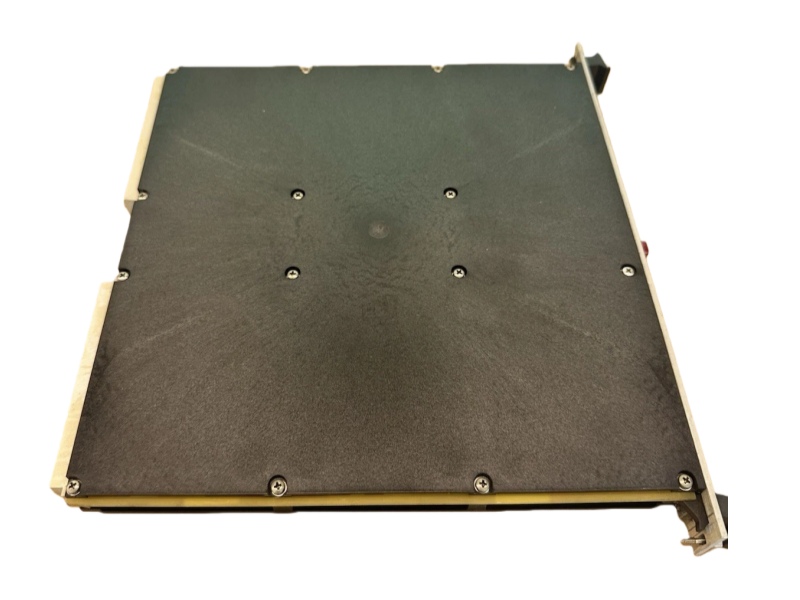

The 5464-643 Woodward Discrete Input Module is a 48-channel optically isolated discrete input module. It receives field switch and relay signals via two 24Vdc FTMs, with data processed through VME interface by the CPU. Made in the USA, it is designed for MicroNet control systems.

Technical Data Summary

Channels: 48 optically isolated discrete inputs

Input Current: 3 mA per channel

Isolation: Optical isolation per channel

Interface: VME bus interface for CPU communication

Connectors: Two 50-pin connectors (J1 for ch. 1-24, J2 for ch. 25-48)

Mounting: Standard 6U Eurocard format with front panel handles

Diagnostics: Individual channel status LEDs on FTM modules

FAQ

Q1: What is the Woodward 5464-643 module?

A1: It is a 48-channel discrete input module with optical isolation, designed for Woodward's MicroNet control systems.

Q2: How is the module installed in a chassis?

A2: It is inserted into card guides and secured with two screws; handles on the front panel allow for safe disengagement from connectors.

Q3: How are the input channels connected and organized?

A3: Channels 1–24 connect via J1 and channels 25–48 via J2, each linked to a 24Vdc FTM with sequentially labeled I/O points.

Q4: What should be checked if all 48 DI modules show Fault LEDs?

A4: Inspect the chassis CPU module for potential failure, as this may indicate a system-level issue.

Q5: Where is the Woodward 5464-643 manufactured?

A5: It is manufactured in the United States (USA).
