5464-335 Overview

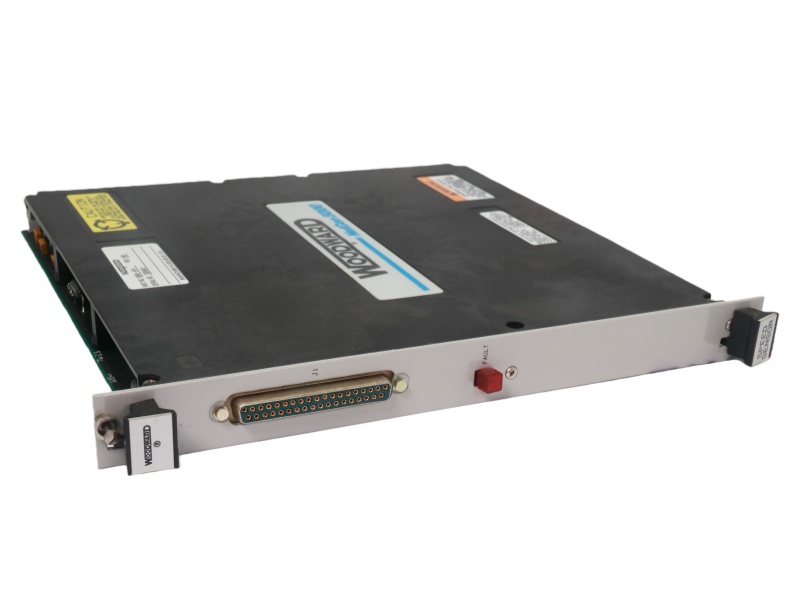

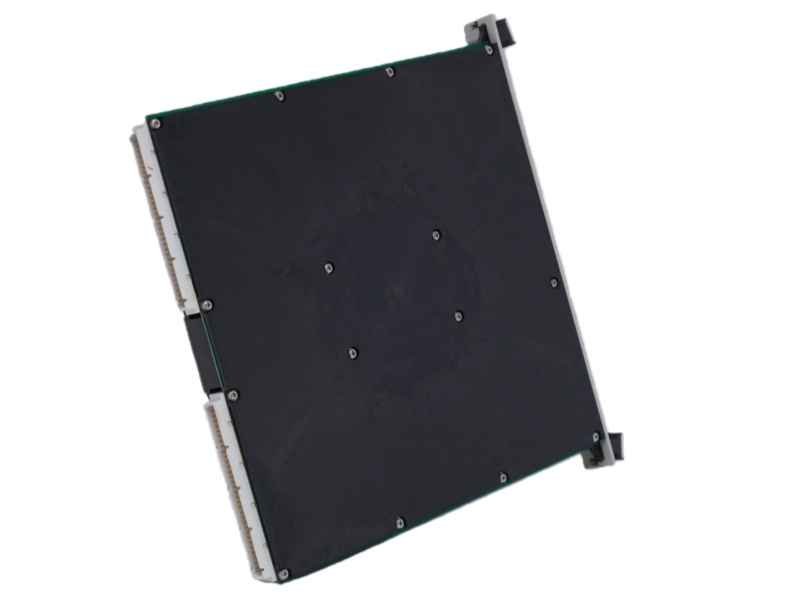

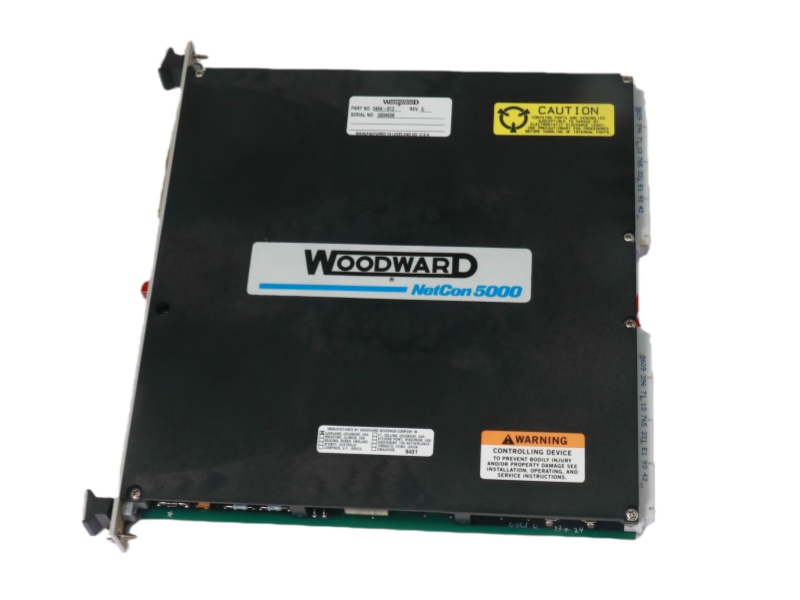

The Woodward 5464-335 ISOLATED ANALOG MODULE is a MicroNet™ actuator controller module for regulating hydraulic or pneumatic actuators. It features dual channels, supports multiple feedback devices, and requires specific low-density discrete cables for operation.

5464-335 Key Features

Function: Dual-channel actuator controller module for MicroNet™ systems.

Control: Manages hydraulic or pneumatic actuators (integrating/proportional).

Feedback: Supports up to two position feedback devices per actuator.

Version: Part number specifies maximum output current capability.

Note: Requires MicroNet low-density discrete (gray) cable; black analog cable is incompatible.

FAQ

Q1: What is the Woodward 5464-335?

A1: It is a dual-channel actuator controller module for MicroNet™ systems.

Q2: What type of actuators does it control?

A2: It controls hydraulic or pneumatic actuators (integrating/proportional types).

Q3: How many feedback devices can it support per actuator?

A3: It supports up to two position feedback devices per actuator.

Q4: What cable must be used with this module?

A4: It must use a MicroNet low-density discrete (gray) cable.

Q5: Can the output current be identified from the part number?

A5: Yes, the module's part number indicates its maximum output current capability.
