CEV65M PROFIBUS Absolute Rotary Encoder | 4096 x 4096 multi-turn position feedback with PROFIBUS DP

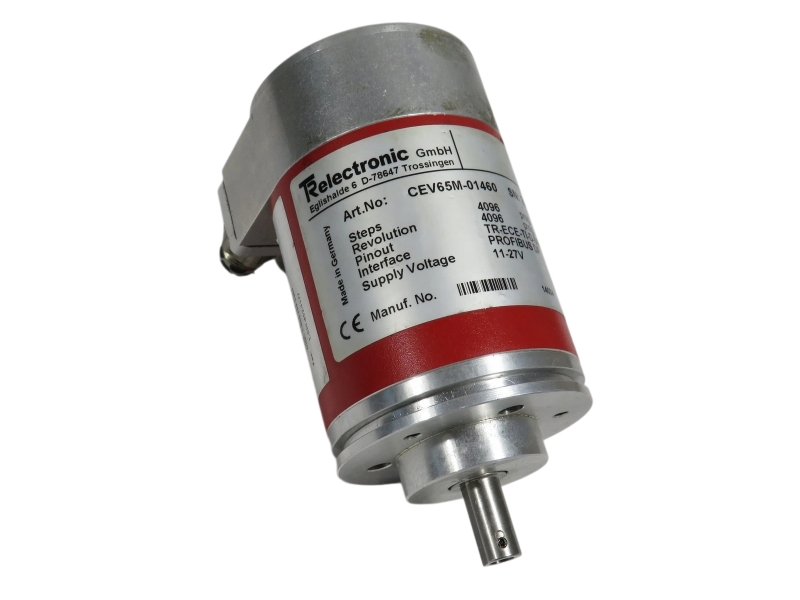

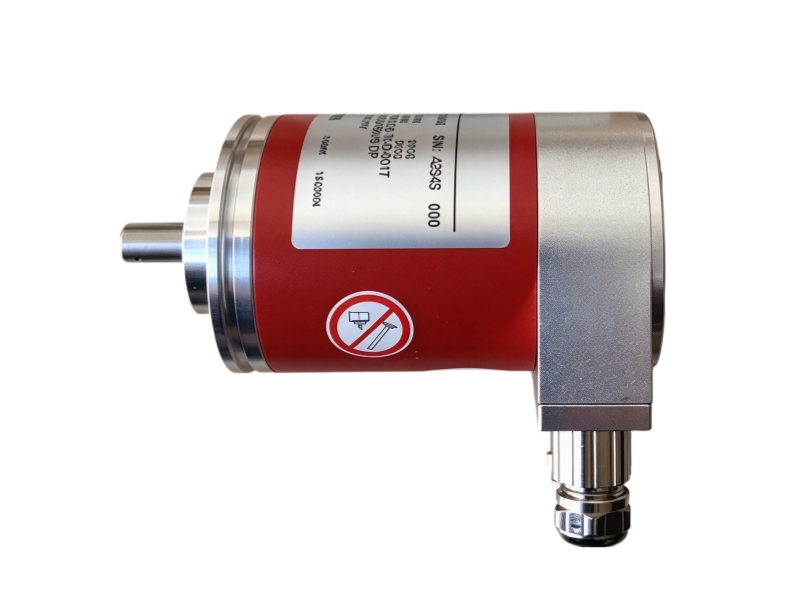

The TR-Electronic CEV65M-01460 is a multi-turn absolute rotary encoder configured for 4096 steps per revolution and 4096 revolutions. It communicates through PROFIBUS DP and supports the PNO encoder profile Class 2 for deterministic position feedback in industrial motion and machine systems. The exact configuration uses a 24 V DC nominal supply, radial cable glands, a ZB36 flange and the documented 10FL/19.5 shaft arrangement. Procurement and replacement checks should compare the complete order number, mechanical mounting, shaft geometry, electrical supply, PROFIBUS addressing, baud rate, profile parameters and surrounding machine configuration.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | No named lifecycle status stated in the current exact official datasheet |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Notice: Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | TR-Electronic |
| Complete Part Number | CEV65M-01460 |
| Official Designation | CEV65M*4096/4096 PB |
| Product Type | Multi-turn absolute rotary encoder |
| Resolution per Revolution | 4096 steps |
| Measuring Range | 4096 revolutions |
| Interface | PROFIBUS DP, PNO encoder profile Class 2 |
| Transfer Rate | 9.6 to 12000 kbit/s |
| Supply Voltage | 11 to 27 V DC; nominal 24 V DC |
| Typical Current | 120 mA, unloaded |
| Output | RS485 |
| Protection Rating | IP65 |
| Operating Temperature | -20 to 70 °C |

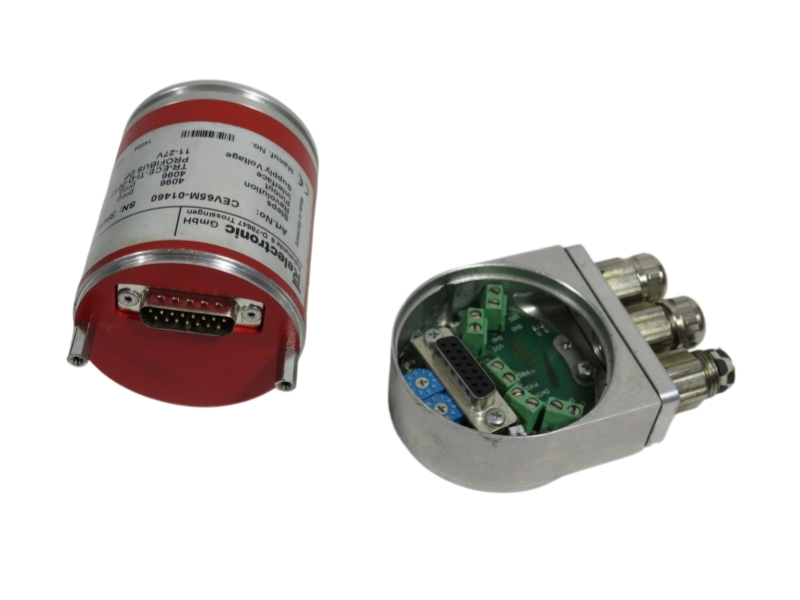

| Connection | 3 x PG9, radial |
| Flange | ZB36 |
| Shaft Configuration | 10FL/19.5 |
| Mechanical Speed | Up to 6000 rpm |
| Typical Mass | 0.7 kg |
| System Fit | Industrial position-control systems using PROFIBUS DP and PNO encoder profile Class 2 |
| System Role | Supplies absolute multi-turn shaft position to a compatible controller |
| Typical Applications | Machine axes, material handling, positioning equipment and encoder maintenance replacement |
| Critical Checks | Complete order number, 4096/4096 configuration, flange, shaft geometry, cable entry, supply, PROFIBUS address and baud rate, profile settings and mechanical coupling |
Confirm the complete CEV65M-01460 order code and suffix against the installed unit and current project documentation. Review only the hardware, firmware, electrical, interface, mounting and configuration items relevant to this product. Request clear label and packaging photographs before shipment, and do not assume that a similar family member is a direct replacement.
The current TR-Electronic datasheet for CEV65M-01460 provides exact configuration and technical data but does not state a named lifecycle classification. No lifecycle conclusion is inferred. Buyers should verify the exact label, order number, mechanical options, electrical connection and PROFIBUS parameterization before replacement.
