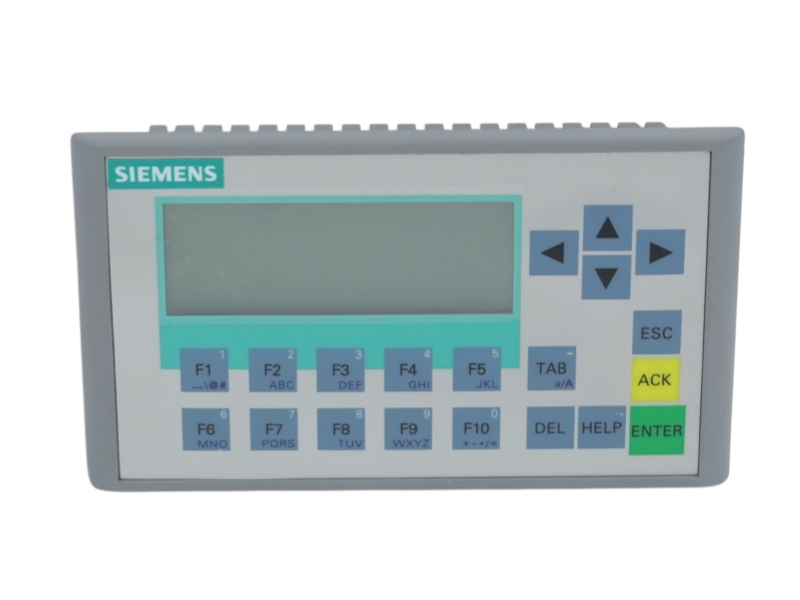

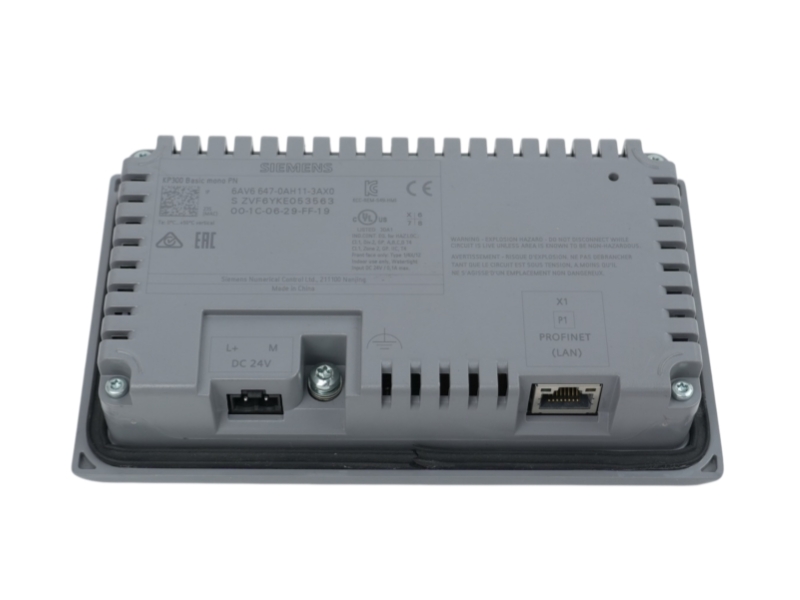

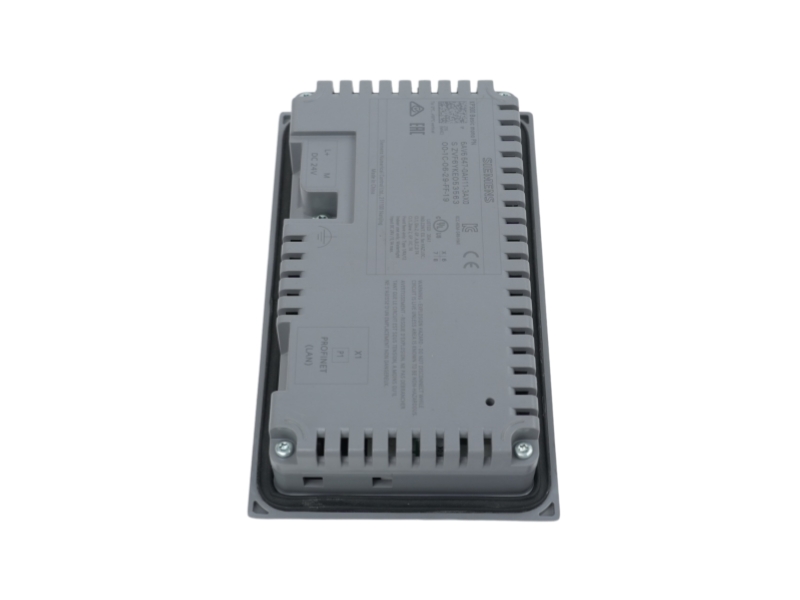

Compact key-operated Basic Panel with a 3-inch monochrome display and PROFINET interface.
Siemens 6AV6647-0AH11-3AX0 is a SIMATIC HMI KP300 Basic mono PN operator panel for compact machine visualization and key-based control. The panel uses a 3-inch black-and-white FSTN LCD and communicates through a PROFINET interface. Siemens specifies configuration from WinCC Basic V11 or STEP 7 Basic V11, while the technical data also supports WinCC Comfort, Advanced and Professional within TIA Portal. Its front provides IP65 protection, with IP20 at the rear. Procurement checks should confirm the complete suffix, panel cutout, PROFINET project, TIA Portal version, cable and power arrangement, stored project availability and the official Product Cancellation lifecycle.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Product Cancellation |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Article Number | 6AV6647-0AH11-3AX0 |
| Product Type | SIMATIC HMI KP300 Basic mono PN |
| Panel Class | SIMATIC Basic Panel |
| Operation | Key operation |
| Display | 3-inch FSTN LCD |
| Display Rendering | Black and white |
| Communication Interface | PROFINET |
| Minimum Configuration Software | WinCC Basic V11 / STEP 7 Basic V11 |
| Supported TIA Portal Engineering | WinCC Basic, Comfort, Advanced and Professional |
| Front Protection | IP65 |
| Rear Protection | IP20 |
| Operating Temperature | 0 to +50 °C for vertical installation |
| Storage and Transport Temperature | -20 to +60 °C |
| Maximum Operating Humidity | 90%, non-condensing |
| Successor Listed by Siemens | 6AV6647-0AH11-3AX1 |
| System Role | Compact local visualization and key-based machine operation |
|---|---|
| Network Fit | PROFINET-connected automation systems |
| Typical Use | Status display, alarms, setpoint entry and basic operator commands |
| Engineering Environment | TIA Portal with supported WinCC configuration software |
Siemens lists 6AV6647-0AH11-3AX0 with Product Cancellation status and identifies the unit as a spare part. The manufacturer lists 6AV6647-0AH11-3AX1 as the successor, subject to project and mechanical compatibility checks.
It is a SIMATIC HMI KP300 Basic mono PN key-operated Basic Panel.
The panel has a 3-inch black-and-white FSTN LCD and a PROFINET interface.
Siemens specifies configuration from WinCC Basic V11 or STEP 7 Basic V11.
Siemens lists the complete article number as Product Cancellation and a spare part.
Check the suffix, cutout, PROFINET project, engineering version, stored HMI project, power and cabling.
