Indoor 270-degree laser scanning with field evaluation, Ethernet, serial and digital I/O connectivity.

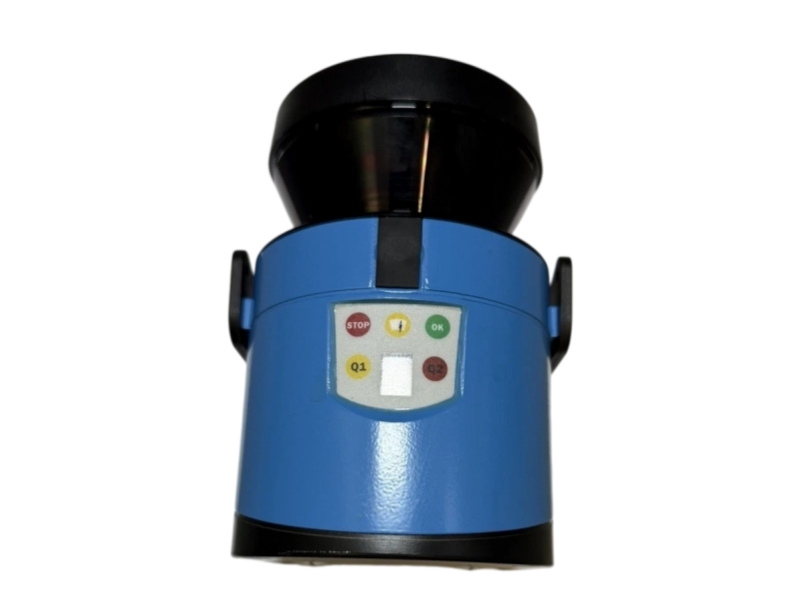

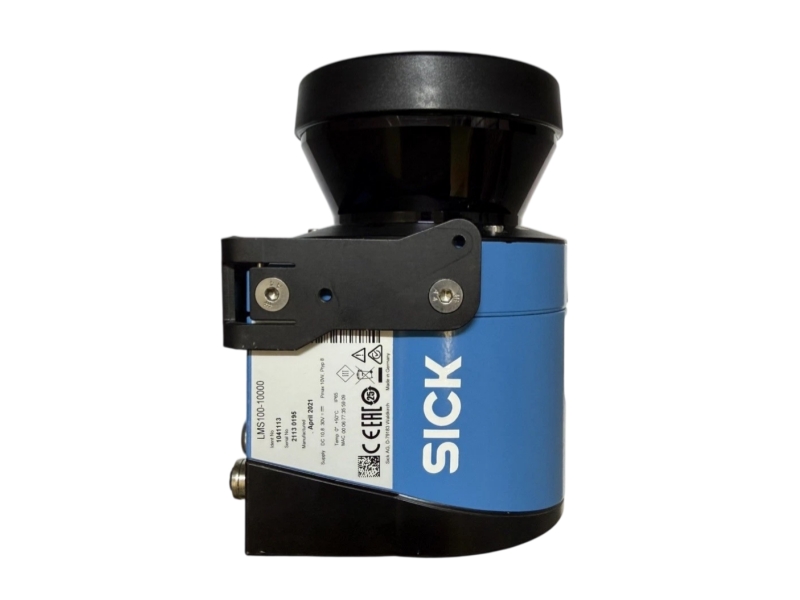

The SICK LMS100-10000 is an LMS1xx 2D LiDAR sensor designed for indoor object detection, contour measurement and configurable field evaluation. SICK specifies a 270-degree horizontal aperture angle, selectable 25 Hz or 50 Hz scanning frequency and a working range from 0.5 m to 20 m. The Class 1 infrared laser operates at 905 nm. Communication includes 10/100 Mbit/s Ethernet with TCP/IP, an RS-232 service and data interface, CAN for output extension, digital inputs and digital outputs. Procurement should verify the exact type and part number, mounting geometry, supply voltage, connector pinout, field configuration, scan settings, network parameters and environmental limits before installation.
| Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Parameter | Verified Detail |
|---|---|
| Manufacturer | SICK |
| Complete Part Number | LMS100-10000 |
| Manufacturer Part Number | 1041113 |
| Product Type | 2D LiDAR sensor |
| Product Family | LMS1xx |
| Application | Indoor |
| Light Source | Infrared, 905 nm |
| Laser Class | Class 1 |
| Horizontal Aperture Angle | 270° |
| Scanning Frequency | 25 Hz or 50 Hz |
| Angular Resolution | 0.25° or 0.5° |
| Working Range | 0.5 m to 20 m |
| Range at 10% Remission | 18 m |
| Supply Voltage | 10.8 V DC to 30 V DC |
| Power Consumption | 22 W |
| Ethernet | TCP/IP, 10/100 Mbit/s |
| Serial Interface | RS-232, 9.6 kBaud to 115.2 kBaud |
| Digital Inputs | 2 digital inputs and 2 encoder inputs |
| Digital Outputs | 3 |
| Enclosure Rating | IP65 |
| Operating Temperature | 0 °C to +50 °C |
| Dimensions | 105 × 102 × 152 mm |
| Weight | 1.1 kg |
| Area | Application Guidance |
|---|---|
| System Fit | Indoor automation systems requiring 2D contour measurement or field evaluation. |
| System Role | Scanning, object detection, measurement data output and configurable field monitoring. |
| Typical Use | Material handling, logistics, access monitoring, contour detection and machine-area observation. |
| Safety Limitation | The SICK datasheet states that this sensor is not a machine-safety component. |
It identifies a SICK LMS1xx indoor 2D LiDAR sensor with manufacturer part number 1041113.
SICK specifies a 0.5 m to 20 m working range, with 18 m at 10% remission.
The sensor supports Ethernet TCP/IP, RS-232, CAN output extension, digital inputs and digital outputs.
No. The SICK datasheet states that the sensor does not constitute a machine-safety component.
Verify the 10.8 V DC to 30 V DC supply range, 22 W consumption, system plug and connector pinout.
Check the exact type, part number, mounting, field sets, scan settings, network parameters, I/O configuration and environment.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Practical order review for LMS100-10000, from article verification through shipment follow-up.
| Service Stage | What We Review |
|---|---|
| Identification | Complete model and suffix, manufacturer label, revision details and visible configuration. |
| Condition | Sensor housing, optical window, system plug, Ethernet connector, seals and packaging evidence. |
| Technical Review | Supply, mounting, scan settings, field sets, interfaces, I/O configuration and environmental limits. |
| Order Documentation | Commercial terms, written warranty terms, packing details and customs documentation. |
| Logistics | Protective packaging, worldwide shipping coordination and shipment tracking. |
| After-Sales | After-sales response, documented issue review and return authorization process. |
We compare the full order code, suffix and label information with the purchasing request.
Condition, technical data and product photographs are reviewed before compatibility decisions.
Protective packing, shipping documents, tracking and after-sales contacts are coordinated after order review.
Product labels and visible identifiers are checked against the requested order code.
Technical documentation and installed system details are compared during compatibility review.
Visible condition and packing readiness are reviewed before protective packaging is arranged.
Look for complete article-code verification, consistent technical descriptions, clear condition evidence, written commercial terms and a documented after-sales process.
Review the quotation, full part number, label photographs, condition statement, packing scope, warranty terms, shipping documents, customs information and return authorization rules.
Engineers should compare the complete suffix, hardware or firmware revision, power arrangement, interfaces, connectors, mounting and installed project details.
Warning signs include an incomplete model, refusal to provide nameplate images, conflicting specifications, unclear condition, unsupported delivery promises or no stated return process.
