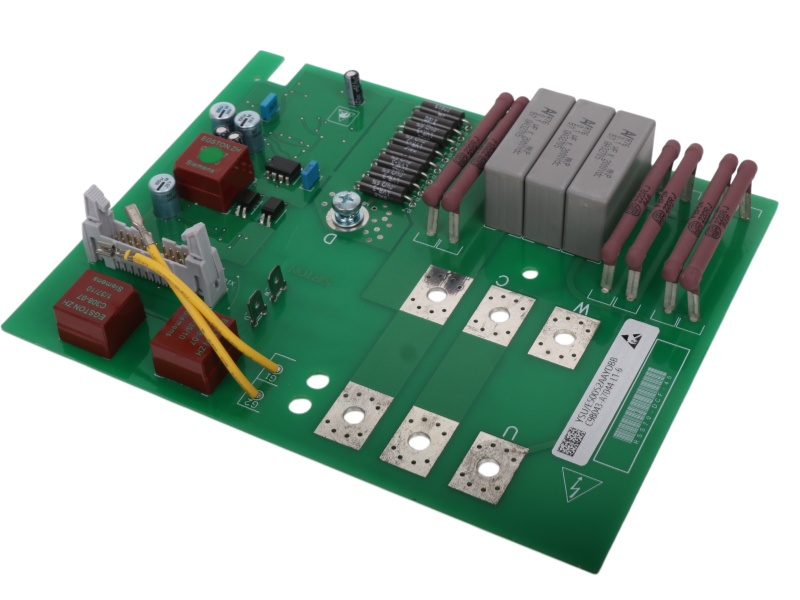

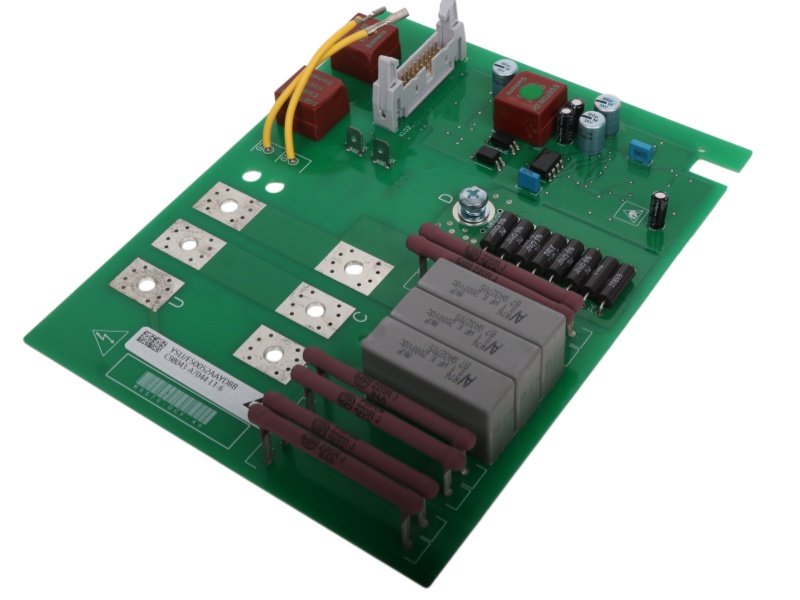

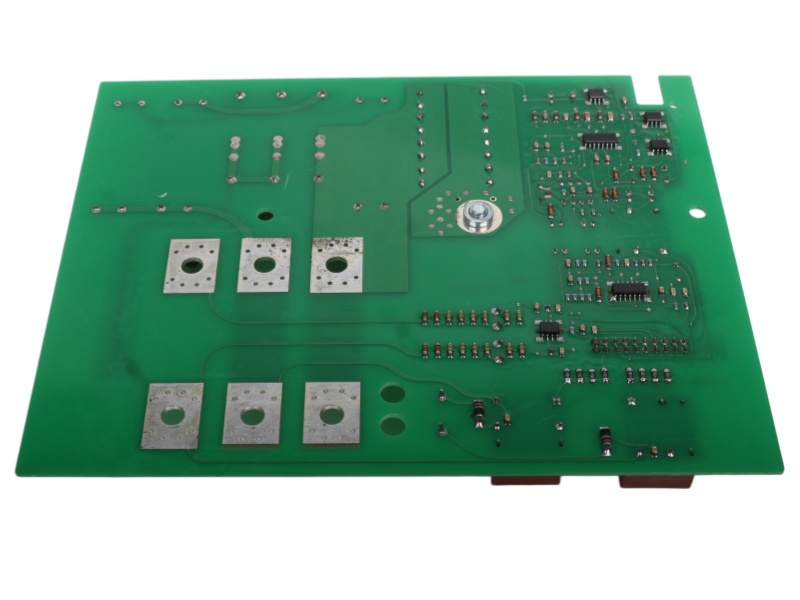

C98043-A7044-L1-6/RSS70-DCF-40 Overview

The PC Board Siemens C98043-A7044-L1-6/RSS70-DCF-40 is a PC board for industrial control. It operates on 24V DC with 0-600V detection range and ±1% accuracy.

Features and Benefits

Wide Voltage Detection: Measures 0-600 V AC/DC with high ±1% reading accuracy for reliable monitoring.

Dual Logic Supply: Operates on 24 V DC power with 3.3V/5V logic, ensuring versatile integration.

Compact & Lightweight: Weighs only 0.4 kg with compact 19.1x18.8x6.5cm size for easy installation.

Energy Efficient: Consumes just 3-8 W typical power, reducing operational costs.

Broad Temperature Range: Functions in 0°C to +60°C environments, stores from -40°C to +85°C.

Humidity Resistant: Operates reliably in 5-95% RH non-condensing conditions for industrial durability.

FAQ

Q1: What are the model numbers for this Siemens PC board?

A1: It is identified as RSS70-DCF-40, C98043-A7044-L1-6, and 6RY1703-0CM02.

Q2: What is the voltage detection range of this board?

A2: It detects voltages from 0 to 600 V AC/DC with ±1% reading accuracy.

Q3: What power supply is required for operation?

A3: It requires a 24 V DC power supply with typical consumption of 3-8 W.

Q4: What are the operating temperature limits?

A4: It operates reliably between 0°C and +60°C, with storage from -40°C to +85°C.

Q5: What are the physical dimensions and weight?

A5: It measures 19.1 x 18.8 x 6.5 cm and weighs approximately 0.4 kg.
