6ES7316-2AG00-0AB0 Overview

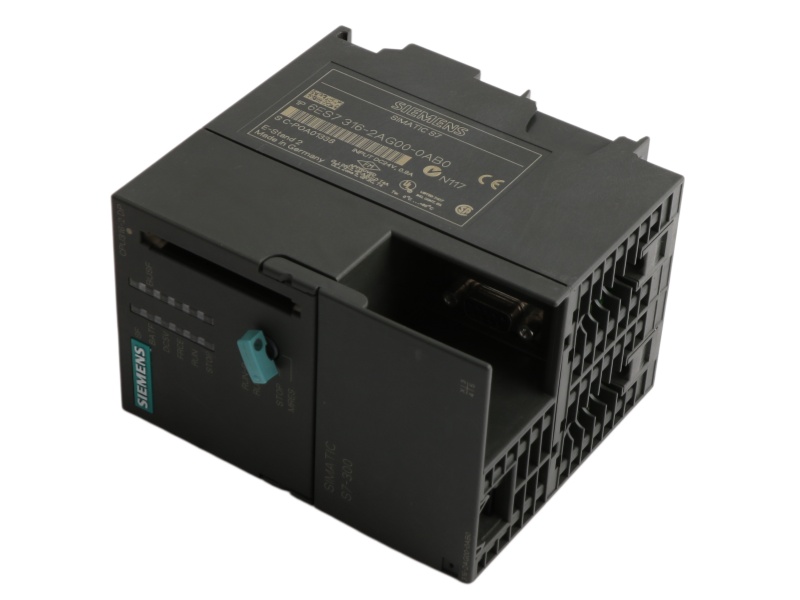

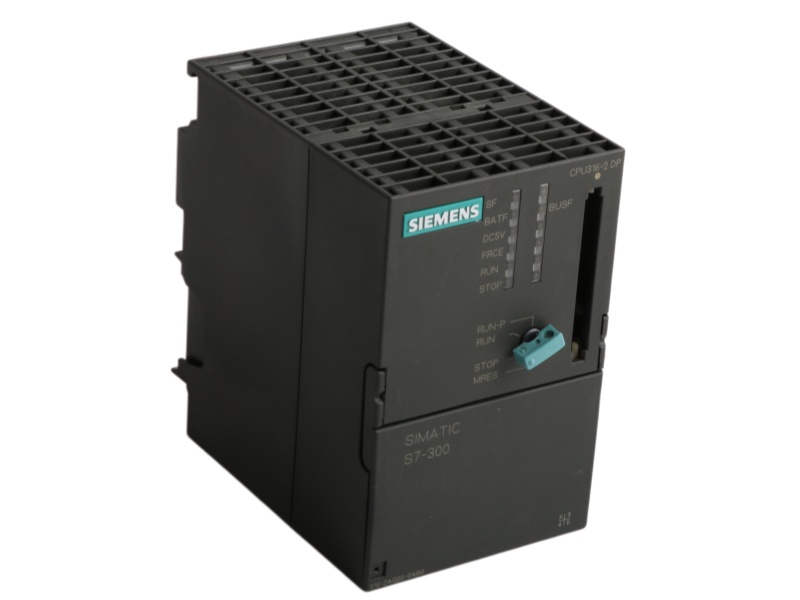

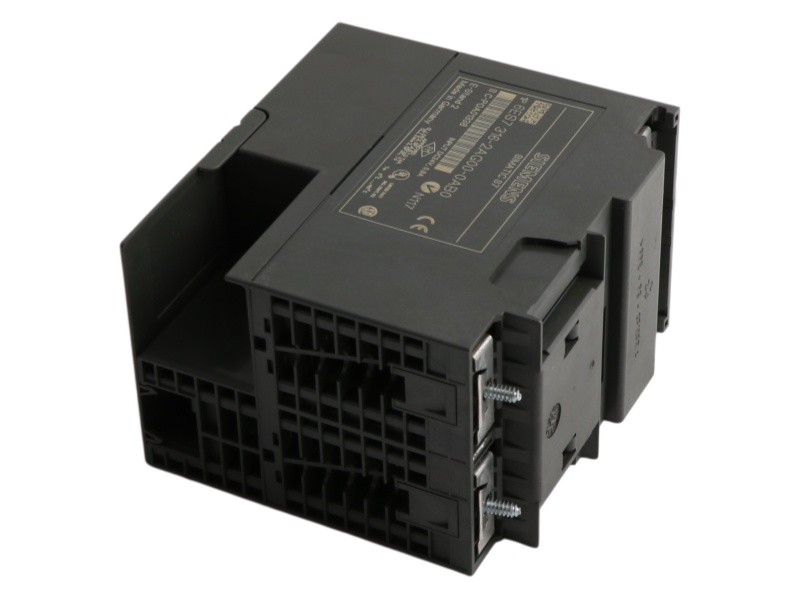

The CPU 316-2DP Processor Module Siemens 6ES7316-2AG00-0AB0 is a SIMATIC S7-300 CPU with 24V DC supply, 128KB memory, and DP master/slave interface for industrial automation.

Environmental Strength

Wide Voltage Range: Operates on 24V DC with a permissible range of 20.4V to 28.8V for supply flexibility.

Temperature Resistance: Suitable for industrial environments with robust design for continuous operation.

Power Efficiency: Maximum power loss of only 8W, ensuring energy-efficient performance.

Surge Protection: Typical inrush current of 8A managed effectively for stable startup.

Backup Reliability: Retains data with or without battery, preserving 4KB of memory during power loss.

Durable Construction: Built for demanding automation settings with long-term operational stability.

FAQ

Q1: What is the part number and type of this Siemens CPU?

A1: It is the Siemens 6ES7316-2AG00-0AB0, a SIMATIC S7-300 CPU 316-2DP.

Q2: What is the working memory size of this CPU?

A2: It features 128 KB of integrated working memory (42K instructions).

Q3: What communication interface does this module include?

A3: It includes a second interface for DP master/slave communication.

Q4: What is the typical processing speed for bit operations?

A4: Bit operations are processed in a typical time of 0.3 microseconds.

Q5: Does this CPU retain data without a backup battery?

A5: Yes, it retains 4 KB of bit memory, counters, timers, and data without battery.
