PCI-based PROFIBUS-DP communication for documented SIMATIC NET industrial PC applications.
Siemens official documentation identifies 6GK1561-3AA00 as the CP 5613 short PCI communication processor for PROFIBUS-DP. The supplied marking C79458-L8000-A77 is retained exactly in this page title and procurement record.

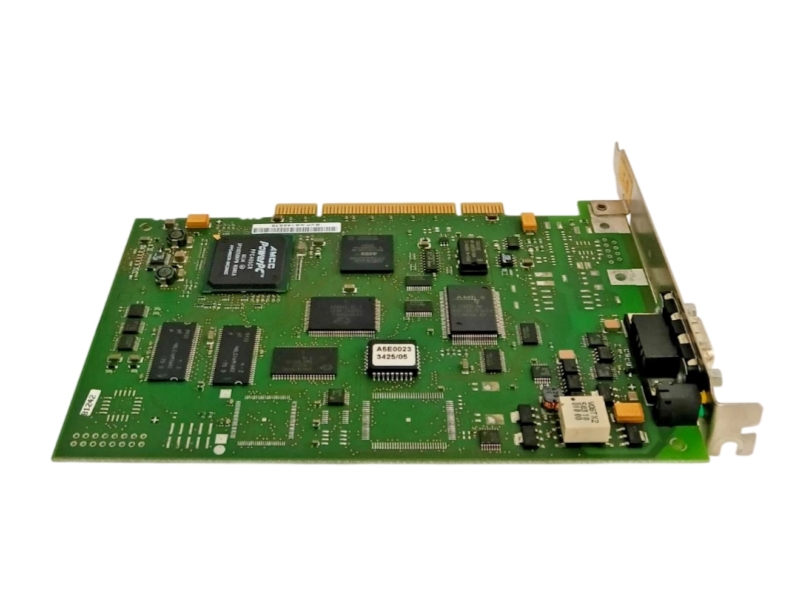

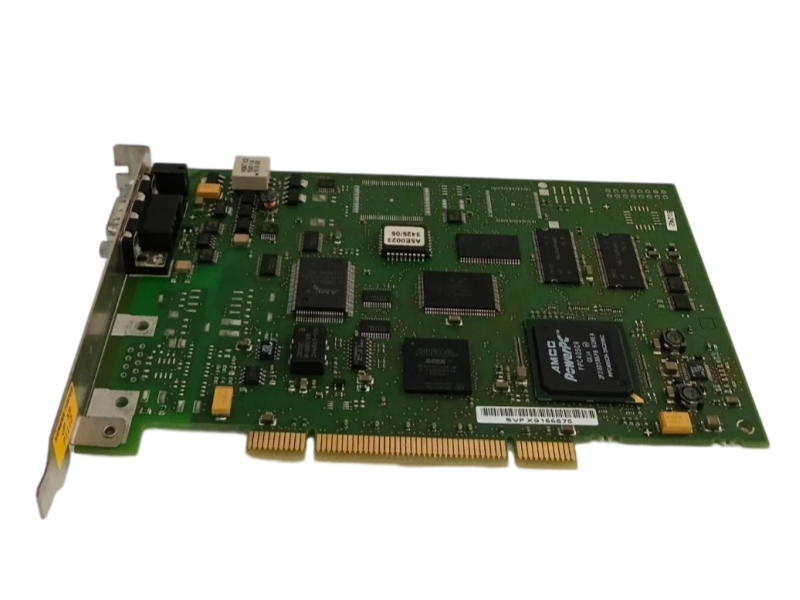

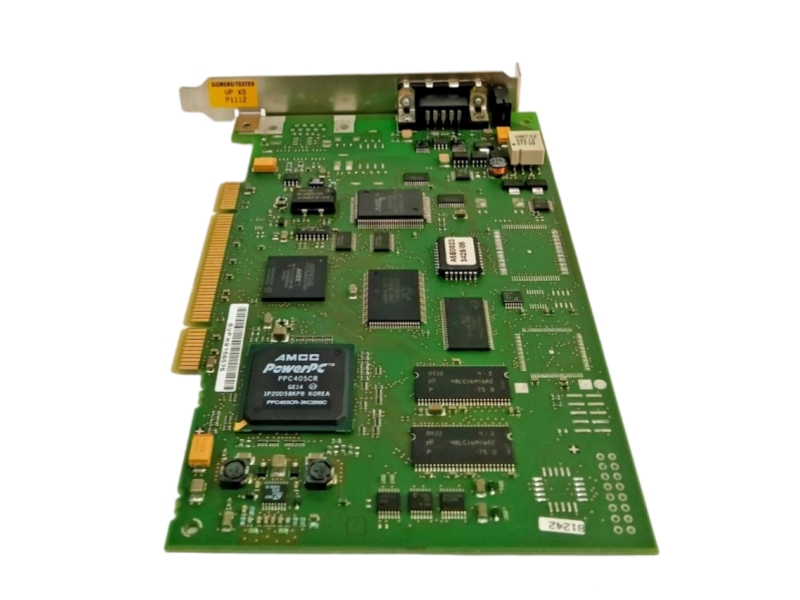

The card provides a 9-pin Sub-D female PROFIBUS connection, diagnostic LEDs and an ASPC2 StepE controller. Buyers should match the complete physical label, PCI host, software environment and PROFIBUS network requirements before replacement.
| Supplied complete marking | C79458-L8000-A77,6GK1561-3AA00 |
| Officially documented order number | 6GK1561-3AA00 |
| Official device designation | CP 5613 |
| Product class | PROFIBUS-DP PCI communication processor |
| Documentation boundary | Lifecycle is not asserted for the combined marking |
| Manufacturer | Siemens |
| Form factor | Short PCI card |
| Industrial bus | PROFIBUS-DP |
| Bus connector | 9-pin Sub-D female |
| Diagnostic indication | LEDs |
| Communication controller | ASPC2 StepE |
| Software context | SIMATIC NET DP-Base |
| Host context | Industrial PC with a suitable PCI slot |
Use current photographs to verify identity, interfaces and physical condition before procurement approval.
|
|
|
| Application Area | Procurement Relevance |
|---|---|
| Industrial PC PROFIBUS access | Links a compatible PCI host to a documented PROFIBUS-DP network. |
| SIMATIC NET communication | Supports applications using Siemens CP 5613 DP-Base documentation. |
| Installed-base replacement | Useful where the host, driver and fieldbus configuration match the existing card. |
Official documents retrieved for this page identify 6GK1561-3AA00 as CP 5613. The additional C79458-L8000-A77 marking is retained exactly for purchasing traceability and should be matched to the unit label. No lifecycle label is asserted for the combined marking.
The retrieved Siemens documents identify order number 6GK1561-3AA00 as the CP 5613 PROFIBUS-DP PCI communication processor.
Verify the PCI host interface and the 9-pin Sub-D female PROFIBUS connection against the installed system.
Send clear photos of both markings, the connector bracket, PCI edge and complete board.
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Model-specific review for identity, compatibility evidence, physical condition, packing and international delivery.
Exact Identity ReviewWe compare the supplied combined marking with the officially documented 6GK1561-3AA00 CP 5613 identity. |
Configuration EvidencePhotos should show both markings, PCI edge, Sub-D connector, LEDs and the complete card. |
Protected LogisticsSensitive interfaces and housings are protected before documented, trackable worldwide shipment. |
| Stage | Review Focus | Buyer Outcome |
|---|---|---|
| Identification | Full order number, designation and label evidence | Reduced model mismatch risk |
| Compatibility | PCI host, CP 5613 designation, PROFIBUS connector and software context | Clear pre-purchase checkpoints |
| Fulfilment | Condition, quantity, destination and packing needs | Traceable delivery planning |
For this combined marking, verification centers on the official 6GK1561-3AA00 CP 5613 identity plus readable evidence of the additional C79458-L8000-A77 marking, the PCI interface and PROFIBUS connector.
| Packing | Interface protection, anti-static measures where appropriate and reinforced outer packing |
| Delivery | Trackable international shipment arranged to the confirmed destination |
| Documentation | Model and condition evidence retained for the procurement record |
| Warranty | Warranty terms stated in the quotation for the offered unit |
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
