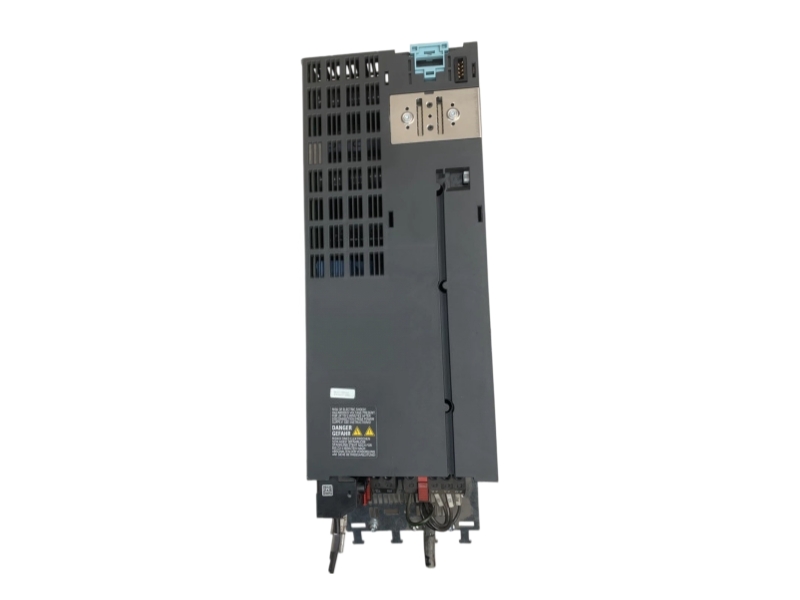

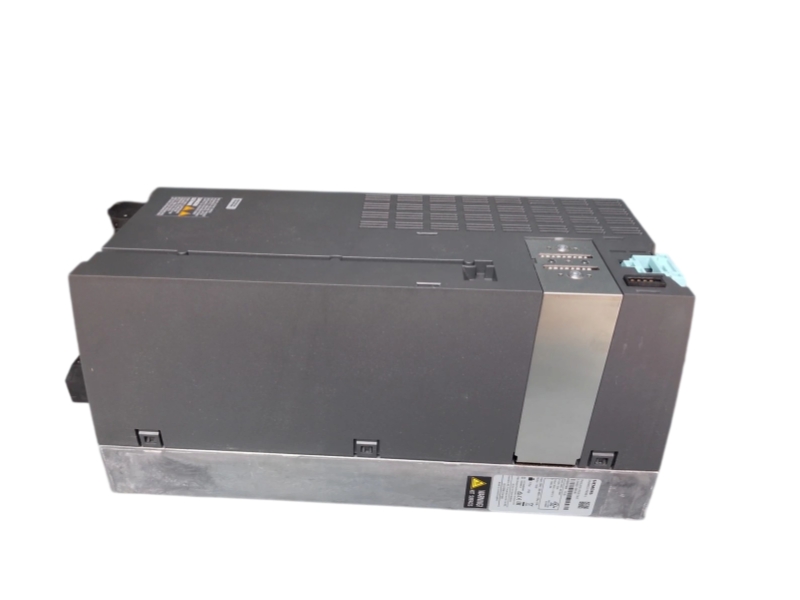

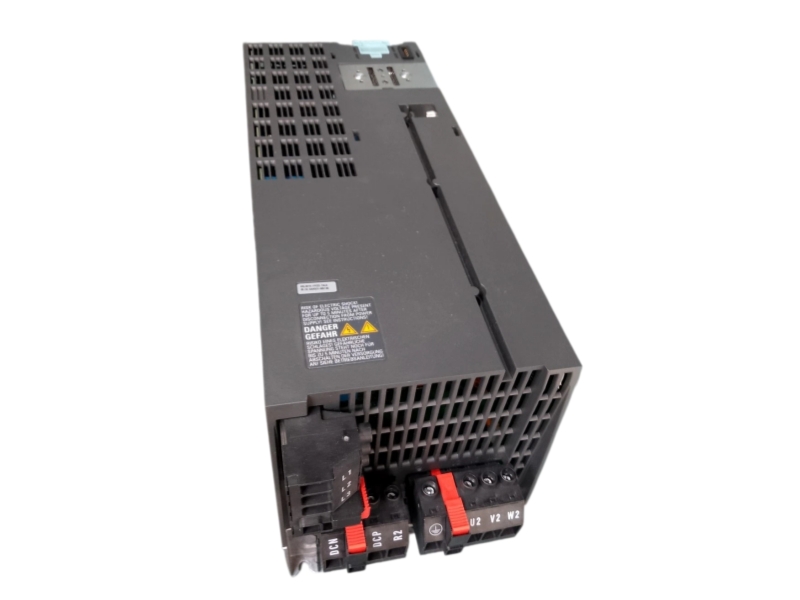

Air-cooled FSC power module with built-in Class A filter and braking chopper.
Siemens identifies 6SL3210-1PE22-7AL0 as a SINAMICS PM240-2 Power Module for 3 AC 380–480 V supplies. It integrates a Class A filter and a braking chopper in an IP20 frame-size FSC enclosure.
The module is rated for 7.5 kW in high-overload duty or 11 kW in low-overload duty. It is supplied without a control unit or operator panel, so those components and their firmware compatibility must be verified separately.
| Complete Siemens order number | 6SL3210-1PE22-7AL0 |
| Official designation | SINAMICS Power Module PM240-2 |
| Lifecycle | PM300: Active Product |
| Product family | Air-cooled Power Modules in blocksize format |
| Supply scope | Without control unit and operator panel |
| Input supply | 3 AC 380–480 V +10/-10%, 47–63 Hz |
| High-overload output | 7.5 kW; 200% for 3 s, 150% for 57 s, 100% for 240 s |
| Low-overload output | 11 kW; 150% for 3 s, 110% for 57 s, 100% for 240 s |
| Integrated features | Class A filter and braking chopper |
| Frame size | FSC |
| Degree of protection | IP20 |
| Dimensions (H × W × D) | 355 × 140 × 165 mm |
| Ambient temperature | HO: -10 to +50 °C; LO: -10 to +40 °C |
| Control-unit requirement | Approved for CU firmware V4.6 |
| Net weight | 5.3 kg |
Use current photographs to verify identity, interfaces and physical condition before procurement approval.
|
|
. |
| Application Area | Procurement Relevance |
|---|---|
| Variable-speed motor control | Provides the power stage for compatible SINAMICS drive configurations. |
| High-overload machinery | Supports duty requiring 7.5 kW high-overload capability. |
| Pumps and fans | Supports 11 kW low-overload duty where the load profile fits Siemens ratings. |
Siemens lists 6SL3210-1PE22-7AL0 as PM300: Active Product. Procurement should still verify the offered hardware version, control-unit firmware, duty rating and complete drive configuration.
No. Siemens specifies the PM240-2 power module without a control unit and operator panel.
The documented ratings are 7.5 kW high overload and 11 kW low overload under the stated duty cycles and ambient limits.
Match supply voltage, frame size FSC, overload duty, control-unit firmware, cooling and terminal configuration.
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Model-specific review for identity, compatibility evidence, physical condition, packing and international delivery.
Exact Identity ReviewWe check the complete order number, FSC frame, ratings, Class A filter and braking-chopper configuration. |
Configuration EvidencePhotos should show the rating plate, terminals, cooling path, housing and mounting condition. |
Protected LogisticsSensitive interfaces and housings are protected before documented, trackable worldwide shipment. |
| Stage | Review Focus | Buyer Outcome |
|---|---|---|
| Identification | Full order number, designation and label evidence | Reduced model mismatch risk |
| Compatibility | Supply voltage, HO/LO duty, FSC dimensions, control-unit firmware and cabinet conditions | Clear pre-purchase checkpoints |
| Fulfilment | Condition, quantity, destination and packing needs | Traceable delivery planning |
Verification covers the 3 AC 380–480 V supply, 7.5 kW high-overload or 11 kW low-overload selection, FSC mechanical fit, IP20 environment and compatible SINAMICS control unit.
| Packing | Interface protection, anti-static measures where appropriate and reinforced outer packing |
| Delivery | Trackable international shipment arranged to the confirmed destination |
| Documentation | Model and condition evidence retained for the procurement record |
| Warranty | Warranty terms stated in the quotation for the offered unit |
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
