Eight-channel floating analog acquisition for documented SIMATIC S5-135U and S5-155U measurement applications.
Siemens identifies 6ES5460-4UA13 as a SIMATIC S5 460 analog input module with eight floating analog inputs. Siemens documentation states that 6ES5 4xx-4UA13 modules function in the same manner as the corresponding -4UA12 modules and use the same technical data.
The module uses plug-in measuring-range submodules to adapt the channels for the required current, voltage or resistance-temperature measurement task. Exact submodule type, wiring, scanning mode, mains-frequency setting and signal format must be matched before replacement or migration.
| Complete Siemens order number | 6ES5460-4UA13 |
| Official module designation | SIMATIC S5 460 analog input module |
| Platform | SIMATIC S5-135U / S5-155U U-range I/O |
| Analog inputs | 8, floating |
| Documentation relationship | -4UA13 functions as -4UA12 with the same technical data |
| Lifecycle classification | No PLM label asserted from the retrieved exact-model documentation |
| Analog input channels | 8 |
| Input construction | Floating |
| Range configuration | Plug-in measuring-range submodules |
| Documented current range | 0/4–20 mA; overload range 0/4–40 mA |
| Current representation | 0 mA = 0 units; 4 mA = 512 units; 20 mA = 2048 units |
| Maximum input voltage | 18 V |
| Input selection | Relay multiplexer |
| Cycle time for 8 inputs | 0.48 s at 50 Hz |
| Integration time | 20 ms at 50 Hz; 16.67 ms at 60 Hz |
| Scanning selection | Single or cyclic scanning |
| Maximum shielded cable length | Less than 200 m |
| Slots required | 1 |
| Migration documentation | Siemens adapter guidance covers S7-300, S7-400 and S7-1500 measurement variants |

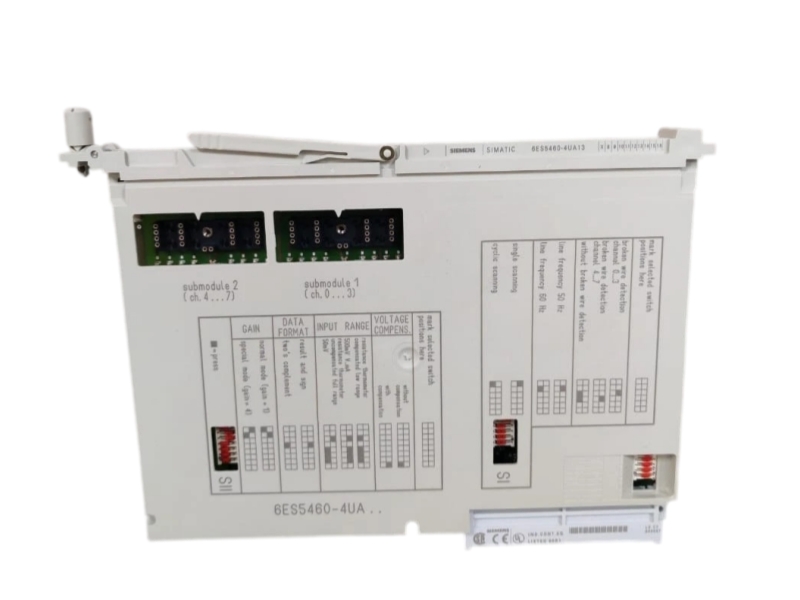

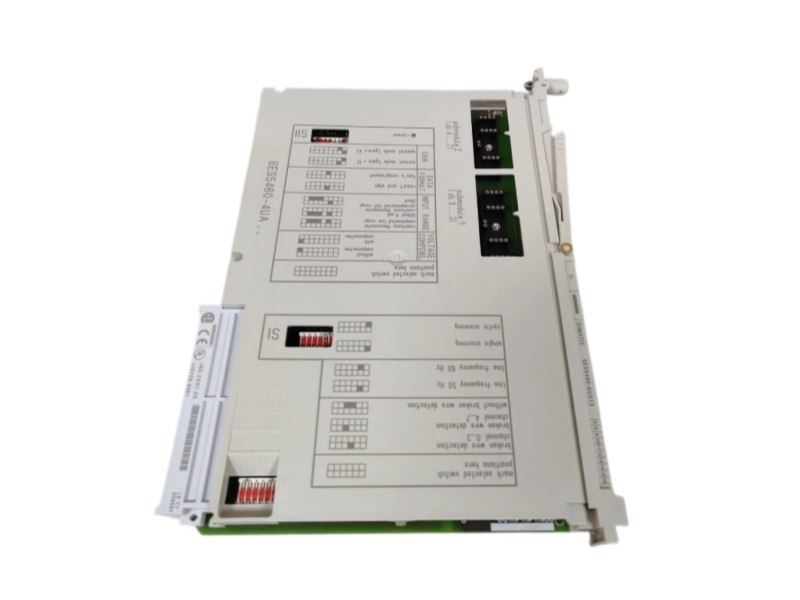

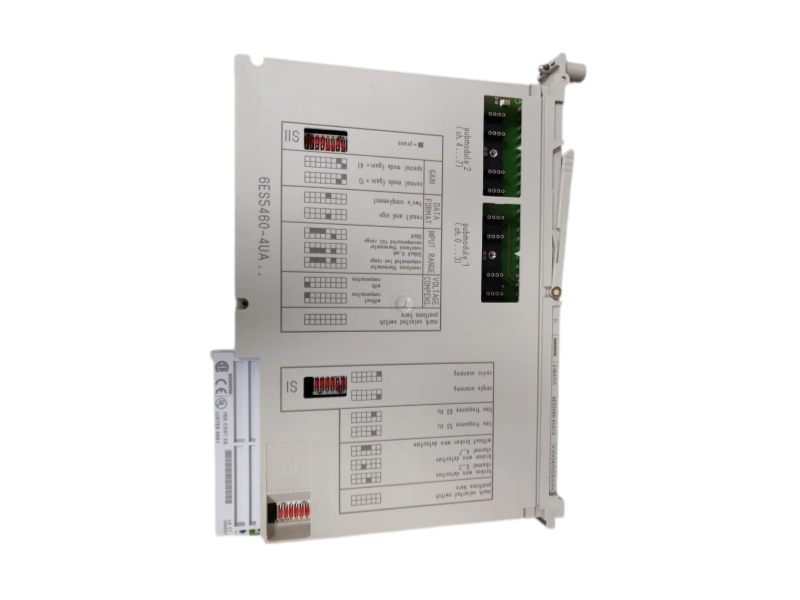

Use current photographs to verify identity, interfaces and physical condition before procurement approval.
|
|
|
| Application Area | Procurement Relevance |
|---|---|
| S5 process-current acquisition | Measures documented 0/4–20 mA signals when the correct range submodules and wiring are fitted. |
| Voltage and temperature measurement | Supports documented voltage or Pt100 configurations through the required measuring-range hardware. |
| S5-to-S7 migration planning | Siemens adapter guides map measurement-specific configurations to selected S7-300, S7-400 or S7-1500 modules. |
The retrieved Siemens exact-model documents identify the 6ES5460-4UA13 module, its eight floating inputs and migration paths, but do not state a current PLM lifecycle label for this order number. Accordingly, this page does not assign Active, Product Cancellation or Discontinued status without an exact official PLM record.
Siemens migration documentation identifies eight floating analog inputs.
No. The measurement task depends on the fitted plug-in measuring-range submodules and corresponding wiring.
No. Siemens publishes measurement-specific adapter mappings, but submodule type, wiring, ranges and project engineering must be reviewed.
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Model-specific review for identity, compatibility evidence, physical condition, packing and international delivery.
Exact Identity ReviewWe check the exact 6ES5460-4UA13 marking, eight-channel construction and installed range submodules. |
Configuration EvidencePhotos should show the label, range submodules, selector switches, front connector and backplane interface. |
Protected LogisticsSensitive interfaces and housings are protected before documented, trackable worldwide shipment. |
| Stage | Review Focus | Buyer Outcome |
|---|---|---|
| Identification | Full order number, designation and label evidence | Reduced model mismatch risk |
| Compatibility | Measurement type, range submodules, wiring, scanning mode, integration frequency and migration path | Clear pre-purchase checkpoints |
| Fulfilment | Condition, quantity, destination and packing needs | Traceable delivery planning |
Verification centers on the exact module code, floating eight-input design, installed measuring-range submodules, current or voltage signal type, selector settings and the intended S5 or adapter-based migration configuration.
| Packing | Interface protection, anti-static measures where appropriate and reinforced outer packing |
| Delivery | Trackable international shipment arranged to the confirmed destination |
| Documentation | Model and condition evidence retained for the procurement record |
| Warranty | Warranty terms stated in the quotation for the offered unit |
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
