RS-485 to plastic-fiber conversion for documented PROFIBUS optical networks and redundant ring topologies.
Siemens identifies the complete order number 6GK1503-3CA00 as the PROFIBUS OLM/P12 V4.0 optical link module. It connects one electrical RS-485 PROFIBUS interface to two plastic-fiber optical interfaces implemented through four BFOC sockets.
The unit includes a signaling contact and measuring output and supports ring redundancy. It is intended for documented PROFIBUS optical network structures where exact interface type, fiber medium, connector format, power supply and topology must be matched before replacement.
| Complete Siemens order number | 6GK1503-3CA00 |
| Official device designation | PROFIBUS OLM/P12 V4.0 |
| Lifecycle | PM410: Product cancellation |
| PLM effective date | Product is cancelled since 01.10.2016 |
| Official successor | 6GK1503-3CA01 — PROFIBUS OLM/P12 V4.1 |
| Procurement class | Siemens spare part |
| Manufacturer | Siemens |
| Exact order number | 6GK1503-3CA00 |
| Product type designation | PROFIBUS OLM P12 |
| Hardware version | V4.0 |
| Electrical interface | 1 × RS-485; 9-pin Sub-D socket |
| Optical interfaces | 2 × plastic-fiber interfaces; 4 BFOC sockets |
| PROFIBUS data rate | 9.6 kbit/s to 12 Mbit/s |
| PROFIBUS PA data rate | 45.45 kbit/s |
| Functions | Signaling contact, measuring output and ring redundancy |
| Supply reference | 24 V DC; max. 200 mA |
| Operating temperature | 0 to 60 °C |
| Protection class | IP40 |
| Dimensions | 39.5 × 112 × 74.5 mm |
| Net weight | 340 g |
| Mounting | 35 mm DIN rail or wall mounting |
| Country of origin | Germany |

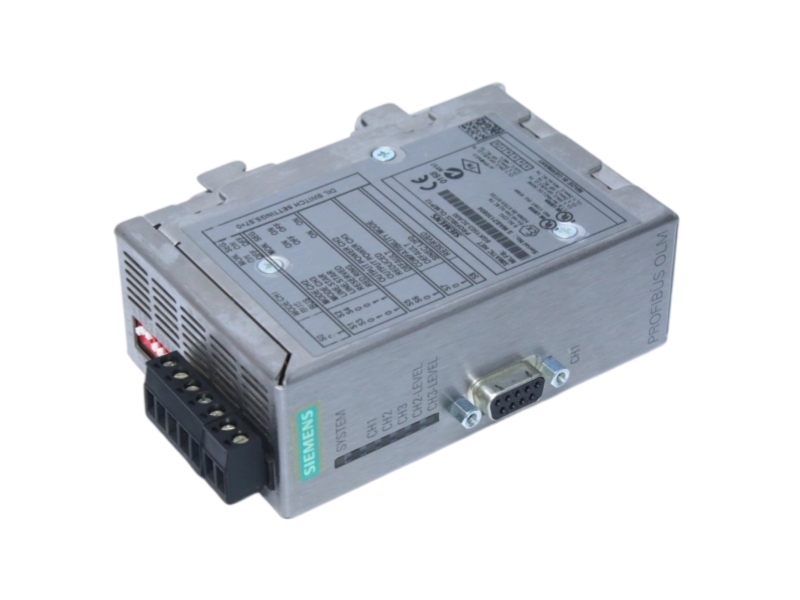

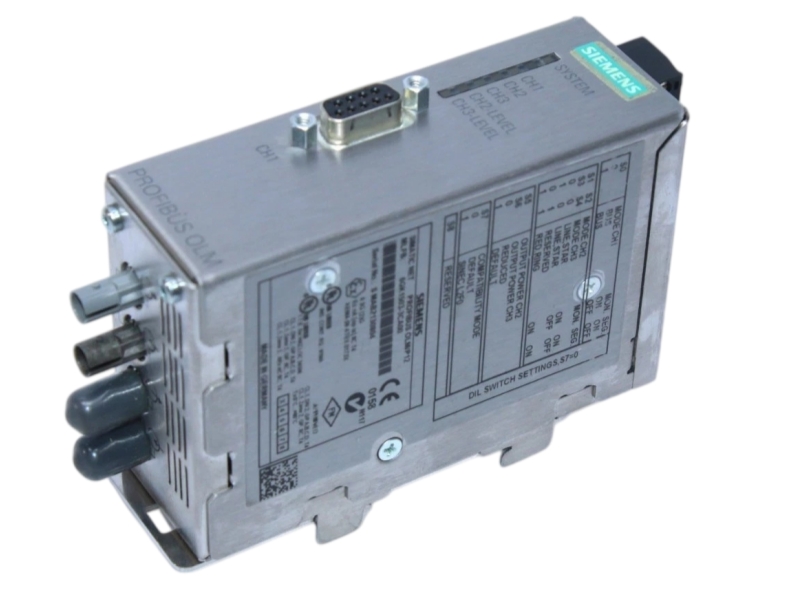

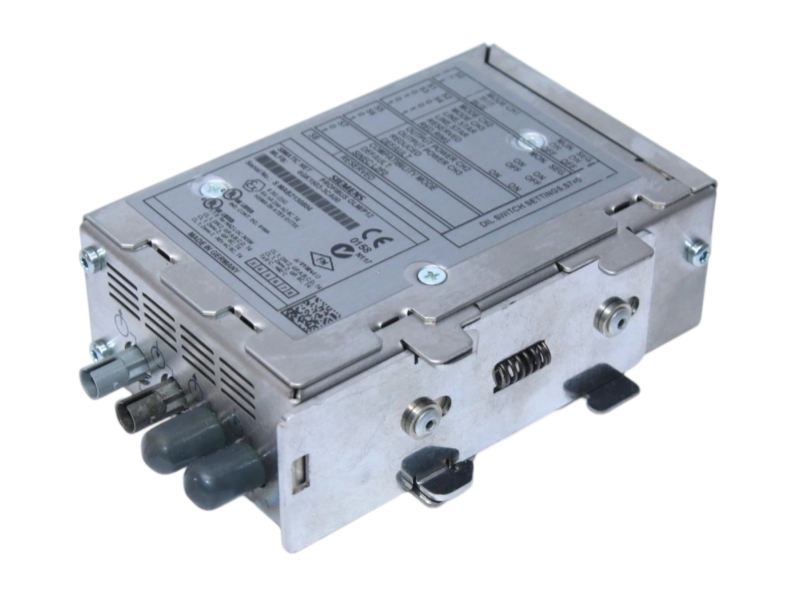

Insert three current photographs to verify identity, optical connections and the complete physical condition before approval.
 |
 |
 |
| Application | Engineering Relevance |
|---|---|
| PROFIBUS optical backbone | Converts the electrical RS-485 segment to two plastic-fiber optical channels for distributed network construction. |
| Redundant optical ring | Supports ring redundancy for higher network availability in documented PROFIBUS topologies. |
| Electrical isolation between plant areas | Uses fiber transmission to bridge electrically noisy or separated installation zones. |
| Legacy OLM/P12 maintenance | Provides an exact V4.0 reference for like-for-like spare-part planning and controlled migration. |
Siemens lists the exact 6GK1503-3CA00 as PM410: Product cancellation and states that the product is cancelled since 01.10.2016. The official successor is 6GK1503-3CA01, identified as PROFIBUS OLM/P12 V4.1. A migration decision should verify optical power budget, interfaces, topology and cabinet wiring.
It is the PROFIBUS OLM/P12 V4.0 optical link module with one RS-485 and two plastic-fiber interfaces.
The module has two optical interfaces implemented through four BFOC sockets.
Siemens specifies 9.6 kbit/s to 12 Mbit/s, plus 45.45 kbit/s for PROFIBUS PA.
Yes. Siemens lists ring redundancy as a product function.
Siemens lists PM410: Product cancellation, with cancellation effective from 01.10.2016.
Siemens identifies 6GK1503-3CA01, the PROFIBUS OLM/P12 V4.1, as the successor.
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Model-specific verification for OLM identity, fiber interfaces, topology evidence, packing and international delivery.
Exact Model ReviewWe compare the full 6GK1503-3CA00 marking, V4.0 version and OLM/P12 designation. |
Interface EvidencePhotos should show RS-485, all BFOC sockets, power terminals, signaling contact and housing. |
Protected LogisticsConnectors and terminals are protected before documented, trackable worldwide shipment. |
| Review | Evidence | Procurement Value |
|---|---|---|
| Identity | Complete model label and V4.0 marking | Avoids mixing P11, P12, P22 and later revisions |
| Interfaces | RS-485 port and four BFOC sockets | Confirms the physical network connection set |
| Topology | Ring, line and optical-link information | Keeps the spare aligned with the installed design |
| Condition | Housing, terminals, clips and connector faces | Supports approval before dispatch |
| Commercial terms | Quantity, condition, lead time and destination | Produces a clear written offer |
| Shipment | Packing, documents and tracking | Supports traceable international delivery |
| 01 Identify | 02 Validate | 03 Document | 04 Dispatch |
|---|---|---|---|
| Read label and version | Check fiber and topology fit | Confirm photos and terms | Protect and track shipment |
Provide the exact model, quantity, destination, required condition, installation photos, fiber type, approximate link length, network speed and whether the device is used in a line or redundant ring.
| Pre-shipment evidence | Available label, interface and condition photographs can be supplied for review. |
| Protective packing | BFOC interfaces, Sub-D connector and terminals are protected against impact and contamination. |
| Worldwide delivery | Carrier and routing options are reviewed for the destination and applicable restrictions. |
| Warranty | Eligible products carry a 12-month limited warranty unless different written terms are agreed. |
| After-sales reference | Keep the order reference, photographs and network fault description for support communication. |
Send the complete order number, quantity, condition, destination and available label photos for an availability and compatibility review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
