SENTRON PAC3220 · MODBUS TCP POWER MONITORING
Panel-mounted power monitoring device with a graphical display, integrated Modbus TCP communication and 690/400 V measuring inputs.

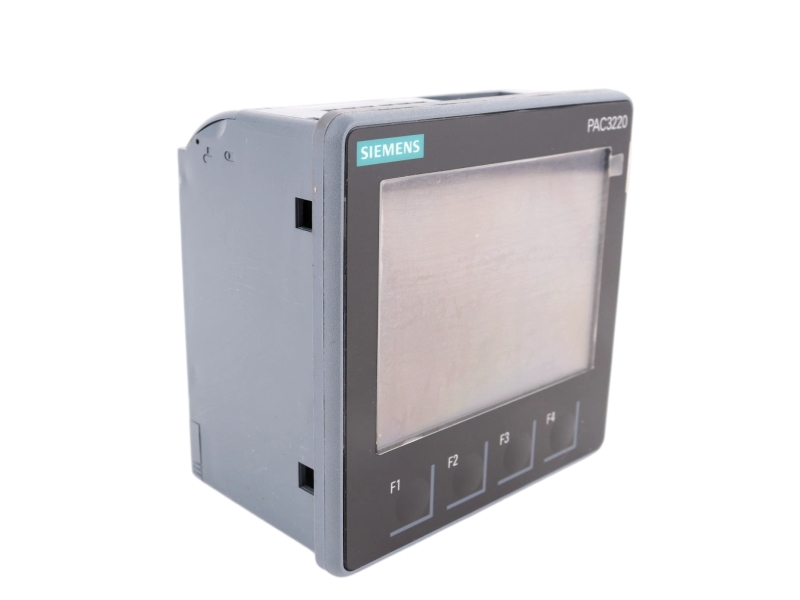

Siemens 7KM3220-1BA01-1EA0 is a SENTRON PAC3220 panel-mounted power monitoring device for measuring electrical variables in low-voltage distribution systems. The front format is 96 × 96 mm and the device includes a graphical display.
This exact variant provides integrated Modbus TCP communication, voltage measurement up to 690 V phase-to-phase or 400 V phase-to-neutral, and current measurement through X/1 A or X/5 A transformers. Its auxiliary supply is 24 to 60 V DC with the Siemens-specified tolerance.
| Commercial field | Verified Siemens record |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 7KM3220-1BA01-1EA0 |
| Product lifecycle | PM300:Active Product |
| Official designation | SENTRON PAC3220 LCD Power Monitoring Device |
| Product family | SENTRON 7KM PAC Measuring Devices |
| Product status note | Current active product |
| Country of origin | Germany |
| Technical field | Exact-model data |
|---|---|
| Display and front format | Graphical LCD, 96 × 96 mm |
| Mounting type | Control-panel mounting |
| Voltage measurement | 690/400 V AC rated, 45 to 65 Hz |
| Current measurement | X/1 A or X/5 A AC |
| Auxiliary power | 24 to 60 V DC, −20% / +10% |
| Communication protocol | Modbus TCP |
| Fast Ethernet interfaces | 2 |
| Ethernet transfer rate | 10 to 100 Mbit/s |
| Active Ethernet connections | 3 |
| Digital inputs / outputs | 2 inputs / 2 outputs |
| Active-energy accuracy | Class 0.5 according to IEC 62053-22 |
| Electrical connection | Screw-type terminals |
| Device dimensions (H × W × D) | 96 × 96 × 56 mm |
| Packaging dimensions | 96 × 58 × 96 mm |
| Siemens net weight | 0.4245 kg |
| Application | System fit |
|---|---|
| Panel power monitoring | Measures electrical variables from the front of a switchboard or distribution panel. |
| Energy transparency | Provides voltage, current, power and energy values for operational and consumption analysis. |
| Modbus TCP integration | Exchanges measured values with energy-management, SCADA or automation systems over Ethernet. |
| Retrofit metering projects | Fits a standard 96 × 96 mm panel opening when transformers, auxiliary power and wiring are qualified. |
Siemens lists the exact 7KM3220-1BA01-1EA0 as PM300:Active Product. Verify the measurement circuit, transformer ratios, auxiliary power and Modbus TCP integration before procurement or replacement.
It is a SENTRON PAC3220 panel power monitoring device with a graphical display and integrated Modbus TCP.
The exact model is rated for 690 V phase-to-phase and 400 V phase-to-neutral systems at 45 to 65 Hz.
The measuring inputs are intended for current transformers with X/1 A or X/5 A secondary ratings.
It provides two Fast Ethernet interfaces and supports Modbus TCP communication from 10 to 100 Mbit/s.
Confirm the cutout, auxiliary supply, transformer ratios, terminal wiring, Ethernet settings and register mapping.
