Siemens | SIMATIC NET IWLAN
Preassembled 1 m flexible RF cable with N-Connect male connectors for SIMATIC NET IWLAN installations.

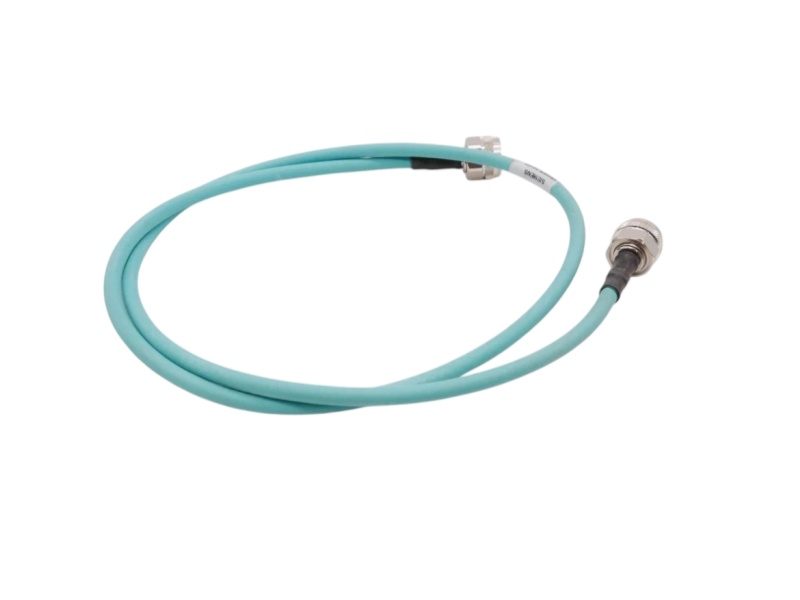

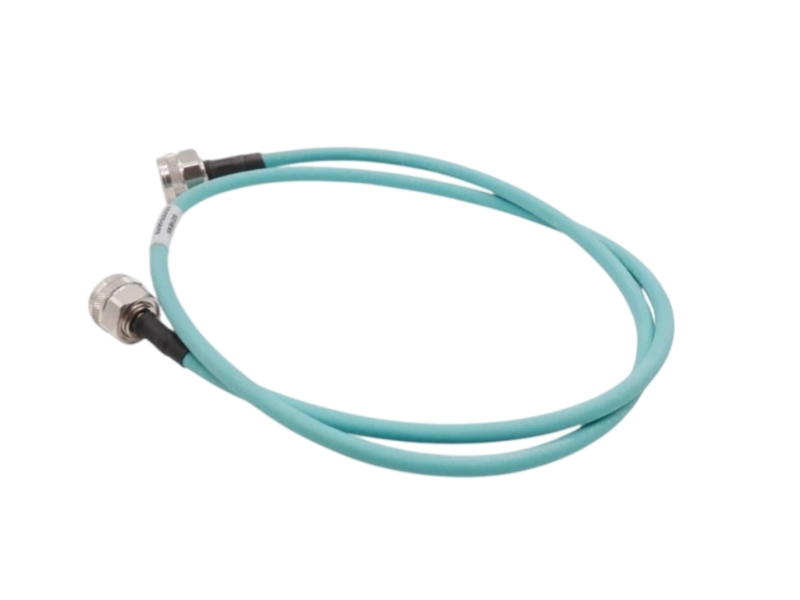

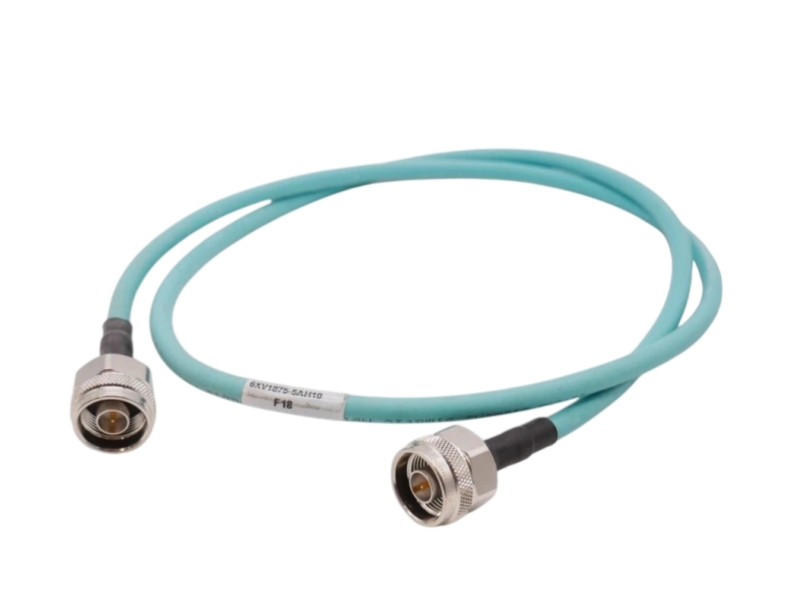

Siemens 6XV1875-5AH10 is a preassembled flexible antenna connection cable with N-Connect male connectors at both ends.
Siemens documents it for connecting an antenna or RCoax cable to SCALANCE M/W equipment, with a one-meter length and a transfer-frequency range up to 6000 MHz.
| Manufacturer | Siemens |
| Complete Part Number | 6XV1875-5AH10 |
| Product Family | SIMATIC NET IWLAN |
| Lifecycle | Not stated in the reviewed Siemens technical documentation |
| Product type | Antenna connection cable, N-Connect male/male |
| Cable length | 1 m |
| Electrical connections | 2 |
| Connector configuration | N-Connect / N-Connect male/male |
| Transfer frequency | 0 to 6000 MHz |
| Characteristic impedance | 50 Ω nominal |
| Typical attenuation at 2.4 GHz | 0.53 dB/m |
| Typical attenuation at 5.2 GHz | 0.83 dB/m |
| Typical attenuation at 5.85 GHz | 0.89 dB/m |
| Return loss | 23 dB minimum |
| Cable jacket diameter | 6.3 mm |
| Shield design | Braided shield of tinned copper wires |
| Minimum bend radius | 32 mm single bend; 45 mm repeated bending |
| Maximum tensile load | 80 N |
| Jacket material | FRNC |
Connect a compatible antenna to a SCALANCE M or W device through N-Connect interfaces.
Provide a flexible one-meter link between RCoax infrastructure and supported wireless network equipment.
Route a preassembled RF connection where connector type, bend radius and cable length have been checked.
The reviewed Siemens data sheet and IWLAN manual verify the exact cable configuration but do not provide a formal lifecycle phrase. Procurement status should be checked without converting document age into a lifecycle claim.
It is preassembled with N-Connect male connectors at both ends.
The exact 5AH10 variant is documented as 1 meter long.
Siemens specifies use between an antenna or RCoax cable and compatible SCALANCE M/W equipment.
The Siemens data sheet states a transfer-frequency range from 0 to 6000 MHz.
Confirm route length, connector clearance, bend radius and tensile loading before installation.
Share the complete part number, quantity, destination and installed-system details for a documented procurement review.
Practical support from part-number review through packing and international dispatch.
We cross-check the complete 6XV1875-5AH10 marking, manufacturer identity and visible condition before quotation.
We review interface, electrical, system and accessory requirements against the documented SIMATIC NET IWLAN configuration.
Packing, warranty scope and worldwide dispatch details are confirmed for each order before shipment.
