Siemens | SIMATIC S5 U Periphery
Four-channel isolated analog acquisition for SIMATIC S5 U-periphery systems and 50 Hz installations.

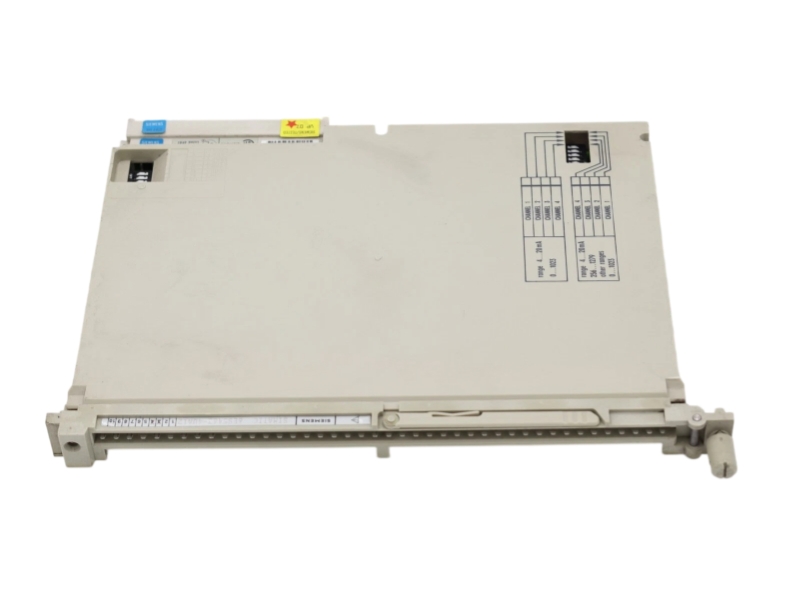

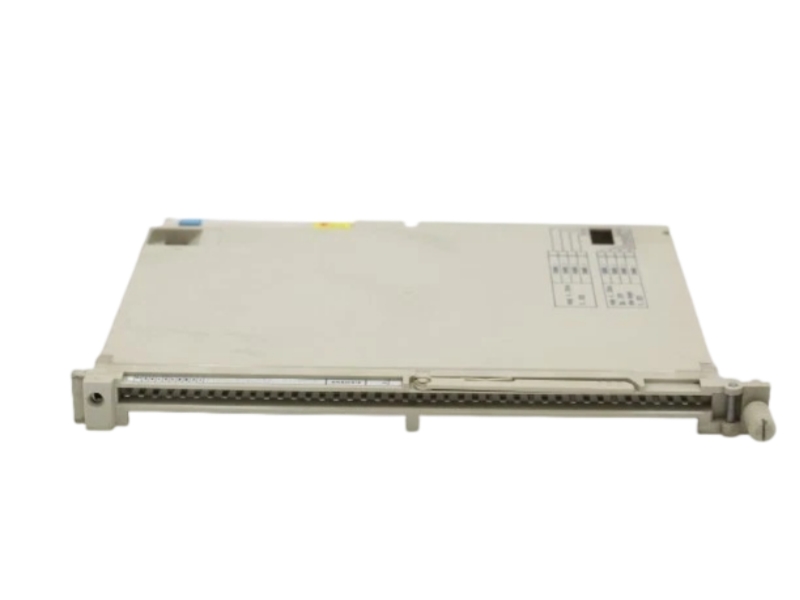

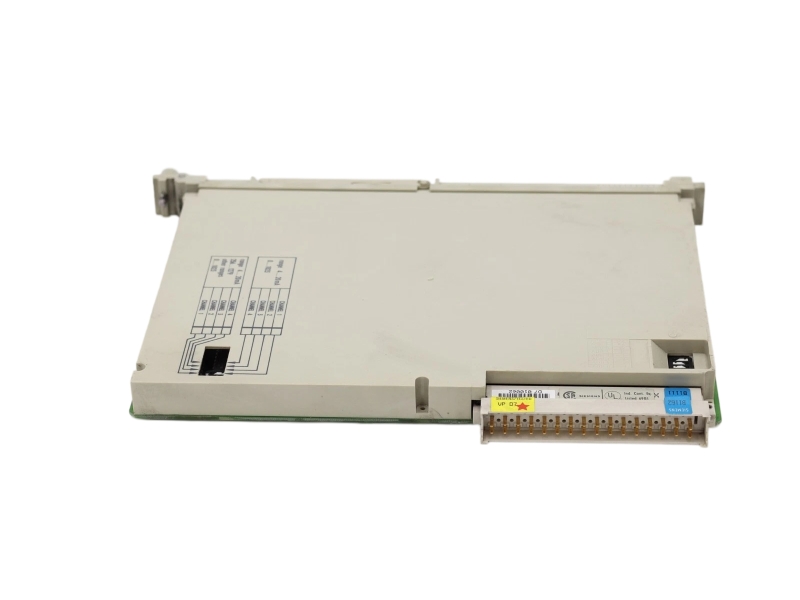

Siemens 6ES5463-4UA12 is a SIMATIC S5 463 analog input module in compact U design with four electrically isolated inputs.
The official SIMATIC S5 analog-module documentation lists fixed input ranges of 1 V, 10 V, 20 mA and 4 to 20 mA; the exact -4UA12 variant is designated for 50 Hz power systems.
| Manufacturer | Siemens |
| Complete Part Number | 6ES5463-4UA12 |
| Product Family | SIMATIC S5 U Periphery |
| Lifecycle | Not stated in the reviewed Siemens technical documentation |
| Product family | SIMATIC S5 463 analog input |
| Module design | Compact U version |
| Number of analog inputs | 4 |
| Electrical isolation | Each input isolated from 0 V and from the other inputs |
| Voltage ranges | 1 V and 10 V |
| Current ranges | 20 mA and 4 to 20 mA |
| Power-system variant | 50 Hz |
| Signal purpose | Acquisition of isolated process voltage and current signals |
| Documentation family | SIMATIC S5 U-periphery analog input modules |
Acquire four isolated analog process values in an installed SIMATIC S5 U-periphery configuration.
Connect documented 1 V or 10 V measurement signals after wiring and scaling review.
Integrate 20 mA or 4–20 mA process loops with channel isolation checks.
The reviewed Siemens module instructions confirm the exact 6ES5463-4UA12 configuration but do not state a formal lifecycle label. No lifecycle conclusion is inferred from product age or from related order numbers.
It provides four analog inputs.
Siemens documents the four inputs as isolated from 0 V and from one another.
The listed ranges are 1 V, 10 V, 20 mA and 4 to 20 mA.
The exact -4UA12 designation is the 50 Hz power-system variant.
Verify the full suffix, rack compatibility, signal ranges, isolation, wiring and software scaling.
Share the complete part number, quantity, destination and installed-system details for a documented procurement review.
Practical support from part-number review through packing and international dispatch.
We cross-check the complete 6ES5463-4UA12 marking, manufacturer identity and visible condition before quotation.
We review interface, electrical, system and accessory requirements against the documented SIMATIC S5 U Periphery configuration.
Packing, warranty scope and worldwide dispatch details are confirmed for each order before shipment.
Share the complete part number, quantity, destination and installed-system details for a documented procurement review.
