Siemens | SIMATIC DP PROFIBUS
90-degree SIMATIC DP FastConnect plug with PG receptacle for PROFIBUS links up to 12 Mbit/s.

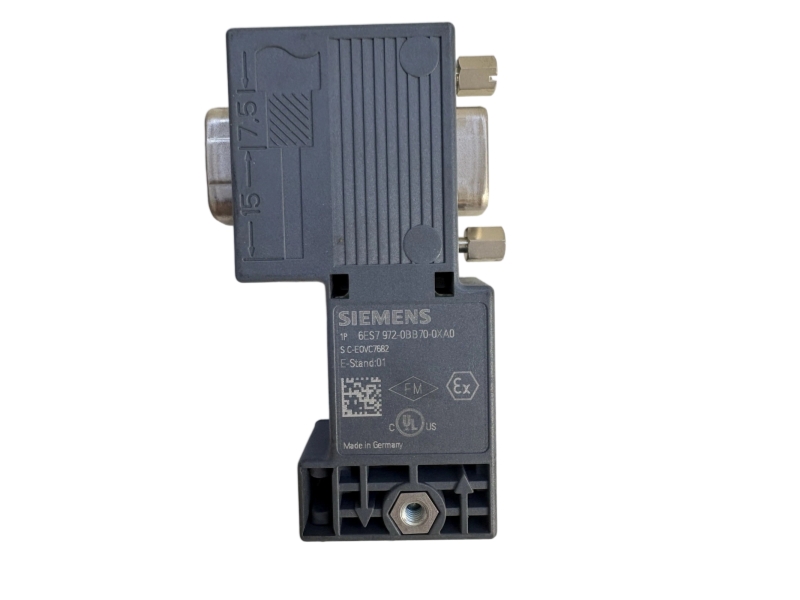

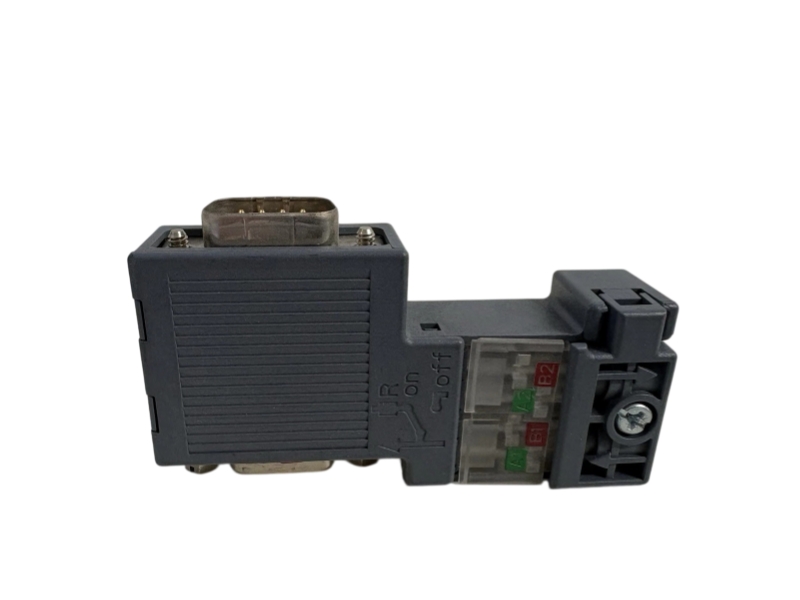

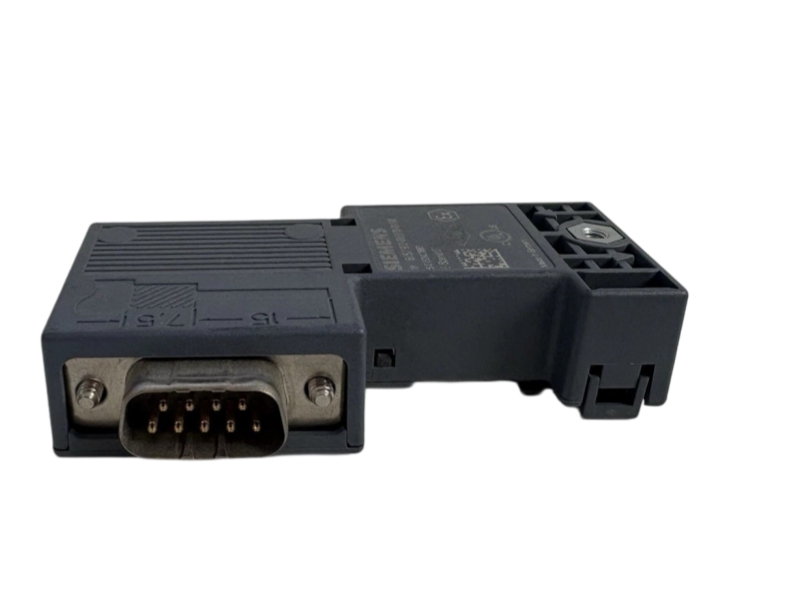

Siemens 6ES7972-0BB70-0XA0 is a SIMATIC DP PROFIBUS RS 485 bus connector with a 90-degree cable outlet, FastConnect insulation-displacement terminals and a PG receptacle.
It connects PROFIBUS stations to two-core PB FC installation cable and supports PROFIBUS DP transfer rates from 9.6 kbit/s to 12 Mbit/s.
| Manufacturer | Siemens |
| Complete Part Number | 6ES7972-0BB70-0XA0 |
| Product Family | SIMATIC DP PROFIBUS |
| Lifecycle | Not stated in the reviewed Siemens technical documentation |
| Product type | PROFIBUS bus connector, RS 485 |
| Cable outlet | 90 degrees |
| PROFIBUS DP transfer rate | 9.6 kbit/s to 12 Mbit/s |
| PROFIBUS cable connections | 2 |
| Equipment connection | 1 × 9-pin Sub-D connector |
| Cable termination method | Integrated insulation-displacement terminals for 2-core PB FC cable |
| FastConnect | Yes |
| PG connection socket | Yes |
| Terminating resistor | Integrated, switchable by slide switch |
| Locking method | Screwed joint |
| Dimensions (W × H × D) | 15.8 × 72 × 36.4 mm |
| Net weight | 45 g |
| Operating temperature | -25 to +60 °C |
| Degree of protection | IP20 |
| Strain relief | Yes |
Attach a compatible PLC, remote I/O or network device to a PROFIBUS DP cable segment.
Use the integrated PG socket when supported commissioning or diagnostic access is required.
Terminate two-core PB FC cable through the documented insulation-displacement connection method.
The reviewed Siemens product data sheet and PROFIBUS connector manual verify the exact configuration but do not provide a formal lifecycle phrase. Procurement status should be checked without assigning an unsupported label.
Yes. The exact 0BB70 version includes a PG connection receptacle.
It supports PROFIBUS DP transfer rates from 9.6 kbit/s to 12 Mbit/s.
Two-core PB FC cable is terminated with integrated FastConnect insulation-displacement terminals.
Yes. A resistor combination is integrated and switched with a slide switch.
Verify the full suffix, PG-socket need, 90-degree outlet, FastConnect cable and cabinet clearance.
Share the complete part number, quantity, destination and installed-system details for a documented procurement review.
Practical support from part-number review through packing and international dispatch.
We cross-check the complete 6ES7972-0BB70-0XA0 marking, manufacturer identity and visible condition before quotation.
We review interface, electrical, system and accessory requirements against the documented SIMATIC DP PROFIBUS configuration.
Packing, warranty scope and worldwide dispatch details are confirmed for each order before shipment.
Share the complete part number, quantity, destination and installed-system details for a documented procurement review.
