Three-port 10/100BASE-TX switching for factory-automation Ethernet networks with EtherNet/IP QoS.

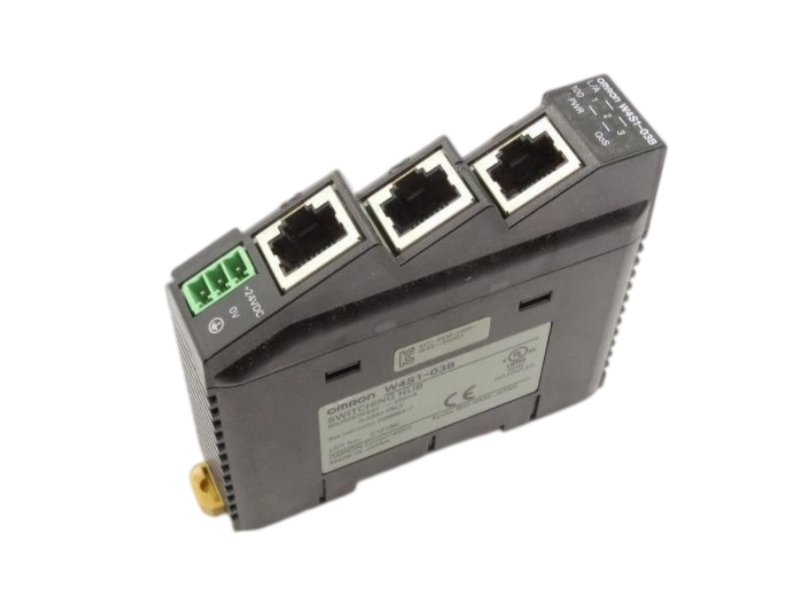

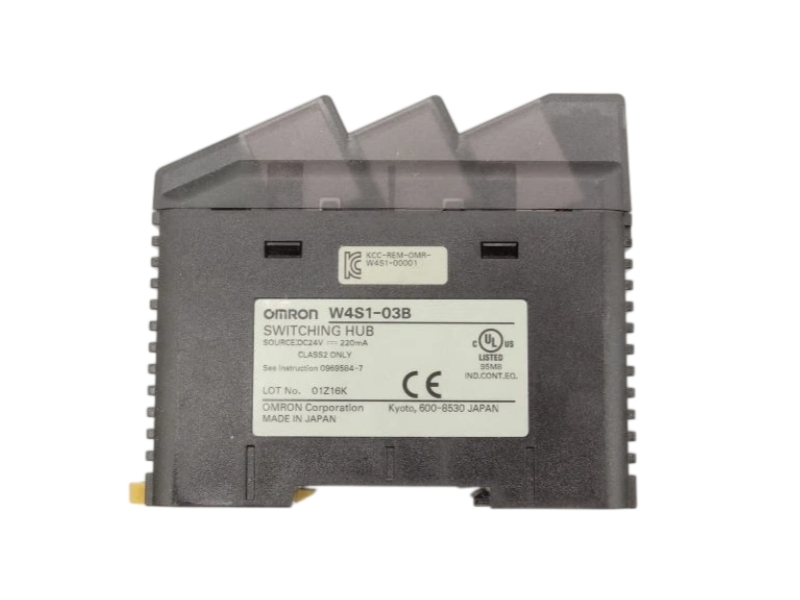

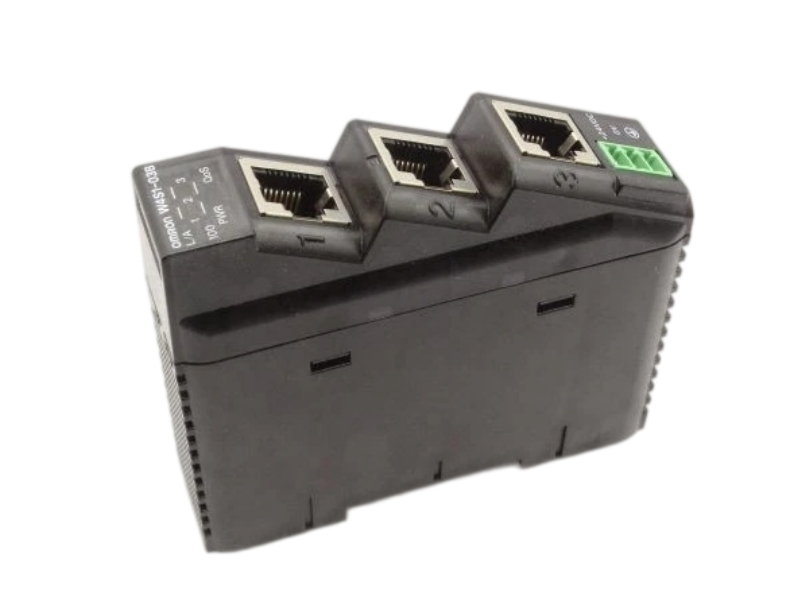

The OMRON W4S1-03B is an industrial switching hub designed for factory-automation networks. It provides three RJ45 ports for 10BASE-T and 100BASE-TX communications and supports Auto MDI/MDI-X, Auto-Negotiation and Store-and-Forward switching.
Its QoS function gives priority to EtherNet/IP implicit messages. The W4S1-03B is an unmanaged switch: SNMP, VLAN, STP, IGMP Snooping and port mirroring are not supported, so procurement checks should focus on the required port count, 24 VDC power, installation space and network architecture.
| Manufacturer | OMRON |
| Complete Model | W4S1-03B |
| Product Family | W4S1 Industrial Switching Hubs |
| Lifecycle | Discontinued — OMRON states “Discontinued On Aug. 2022.” |
| Product Type | Industrial switching hub |
| Ports | 3 × RJ45 |
| Ethernet Standards | IEEE 802.3 10BASE-T and 100BASE-TX |
| Transmission Functions | Auto MDI/MDI-X, Auto-Negotiation, Store-and-Forward |
| QoS | EtherNet/IP implicit-message priority supported |
| Buffer / MAC Addresses | 80 KB / 2,000 addresses |
| Supply | 24 VDC ±5%; 0.22 A; less than 5.28 W |
| Operating Environment | 0 to +55 °C; 10% to 90% RH, non-condensing |
| Storage Temperature | -20 to +75 °C, non-condensing |
| Dimensions | 25 × 90 × 78 mm (W × H × D) |
| Failure Detection | Not supported on W4S1-03B |
| Advanced Management | SNMP, VLAN, STP, IGMP Snooping and port mirroring not supported |
Connects PLCs, remote I/O, HMIs and other Ethernet devices within a compact automation cell.
QoS prioritizes implicit I/O messages when the function is enabled.
Suitable where three copper ports and straightforward plug-and-play switching are required.
OMRON’s official W4S1 product page lists the series as Discontinued On Aug. 2022. This page therefore uses the manufacturer’s lifecycle meaning Discontinued and does not replace it with “Obsolete” or another status. Confirm support needs and replacement engineering before procurement.
It is a three-port industrial switching hub for factory-automation Ethernet networks.
It supports IEEE 802.3 10BASE-T and 100BASE-TX with Auto-Negotiation.
Yes. The documented QoS function prioritizes EtherNet/IP implicit messages.
No. Broadcast-storm and internal error detection are documented for W4S1-05C, not W4S1-03B.
Confirm the three-port requirement, 24 VDC supply, mounting space, connector wiring and supported unmanaged-switch functions.
