SIMODRIVE 611 / DRIVE CONTROL
Encoder feedback and speed-setpoint control within a configured drive system.

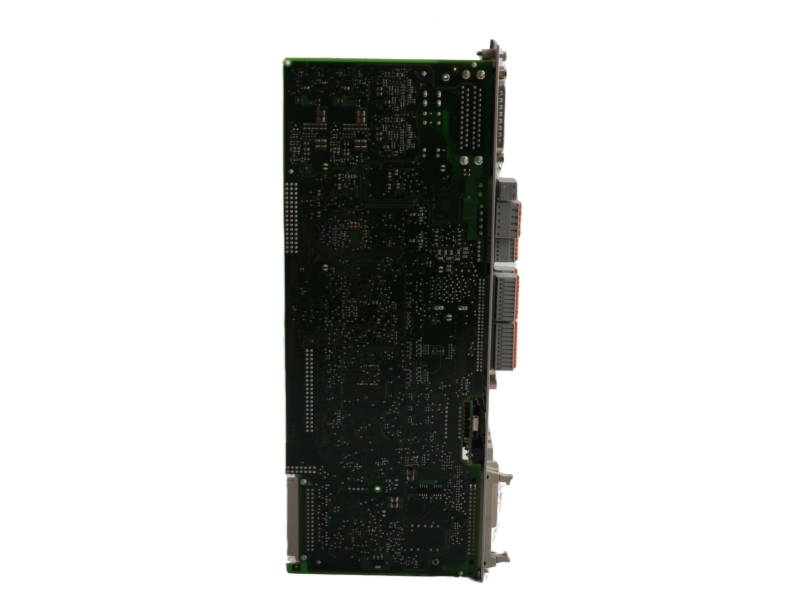

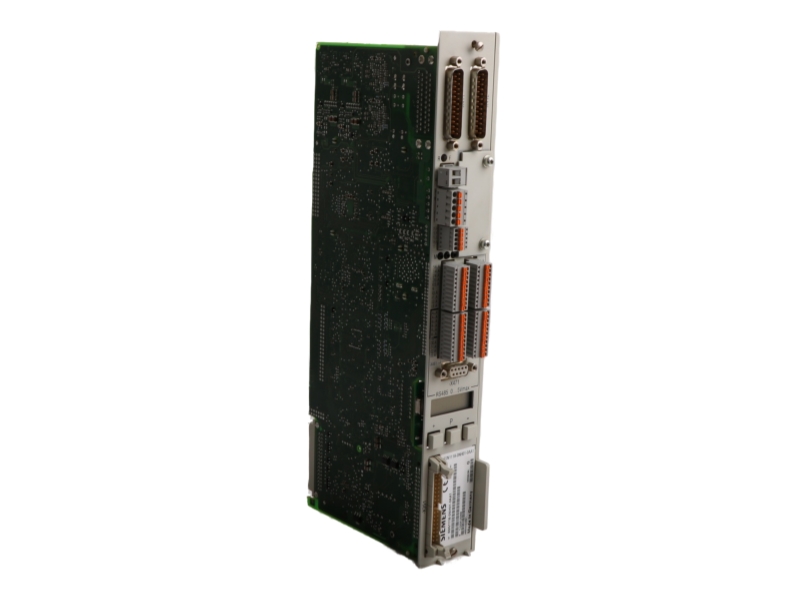

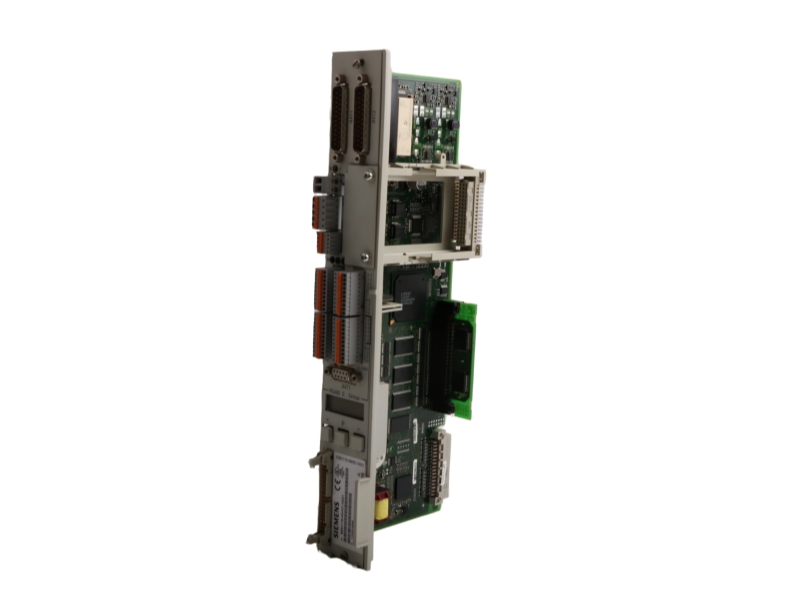

The Siemens 6SN1118-0NH01-0AA1 is a SIMODRIVE 611 universal HRS closed-loop control board. Its two drive controls operate independently, and the board can also be used in single-axis applications. This order code is the speed-setpoint variant for encoders with sin/cos 1 Vpp signals. It is a control component, not a complete drive or a power module. Before replacement, compare the installed board, feedback arrangement, drive firmware and power module configuration. Stockoems helps coordinate condition details, photographs and the supply scope so maintenance and purchasing teams can evaluate the item against the existing machine documentation.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
Review the encoder type and configured control function together. The requested order code is not the resolver or positioning variant; a similar board appearance does not establish compatibility.
| Parameter | 6SN1118-0NH01-0AA1 |
|---|---|
| Manufacturer | Siemens |
| Complete part number | 6SN1118-0NH01-0AA1 |
| Product designation | SIMODRIVE 611 universal HRS |
| Product type | Closed-loop control board |
| Drive controls | Two independent controls |
| Axis configuration | Two-axis; single-axis operation is also possible |
| Encoder signals | sin/cos 1 Vpp |
| Control variant | Speed setpoint (n-set) |
| Drive system | SIMODRIVE 611 |
| Country of origin | GERMANY |
The board forms part of a SIMODRIVE 611 drive configuration and controls the associated axes. Power conversion equipment, motors, feedback devices and any option module must be assessed as part of the complete system rather than inferred from the control board alone.
Single-axis use is possible, including use with a single-axis power module as described for the control board. Confirm the actual power module, drive firmware and machine parameters before planning installation or commissioning.
Compare 6SN1118-0NH01-0AA1 with the installed label, feedback interface, control function, power module and firmware. Preserve the machine parameter backup and confirm the option-module configuration. Resolver and positioning variants must not be assumed interchangeable.
It identifies a SIMODRIVE 611 universal HRS closed-loop control board for speed-setpoint operation.
This variant is specified for sin/cos 1 Vpp encoder signals, not the resolver variant.
Yes. Siemens describes single-axis operation for the two-axis control board, subject to the complete drive configuration.
No. It is a control board. The required power module and other system components must be specified separately.
Preserve the machine and drive parameters and record the installed firmware, feedback devices and option-module arrangement.
Record the fault indication and encoder details. Qualified personnel should inspect the configured feedback path using the applicable drive instructions and site isolation procedure.
