SINAMICS S120 · Safety Integrated Terminal Module
Cabinet terminal module with 10 fail-safe digital inputs and 4 fail-safe digital outputs for DRIVE-CLiQ safety integration.

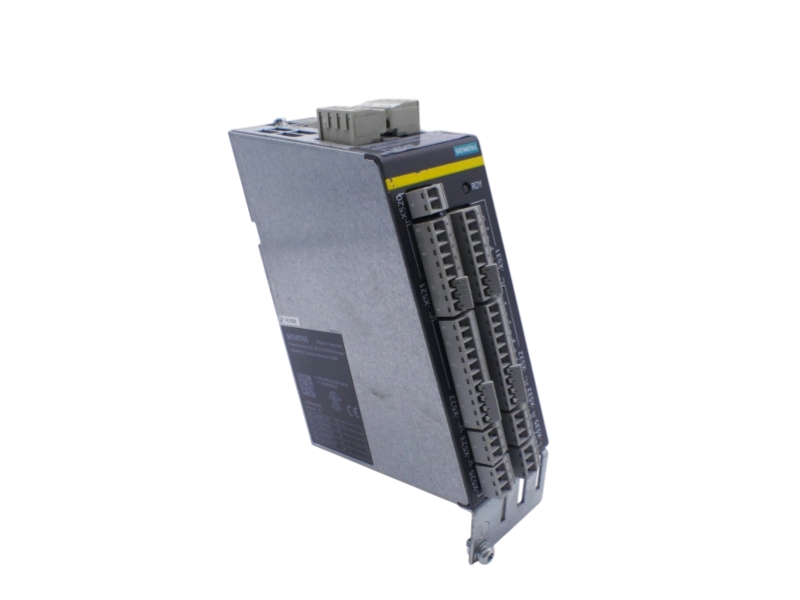

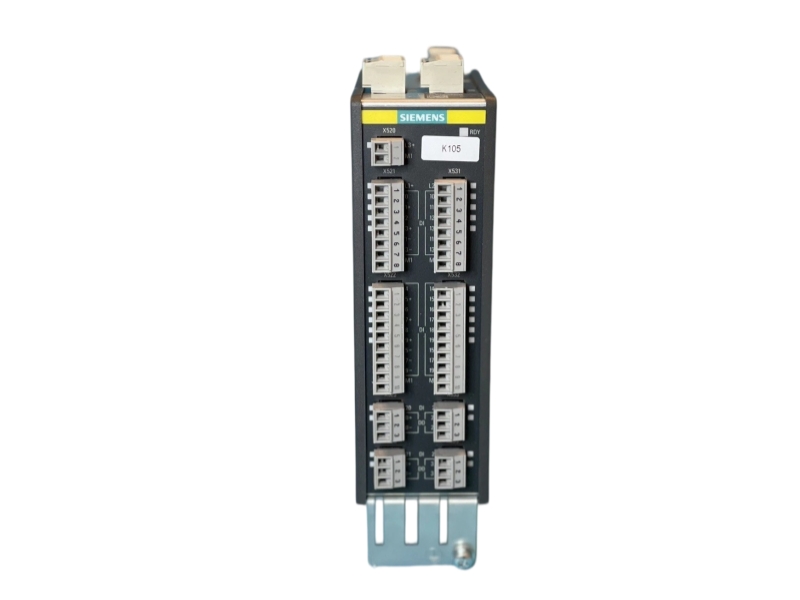

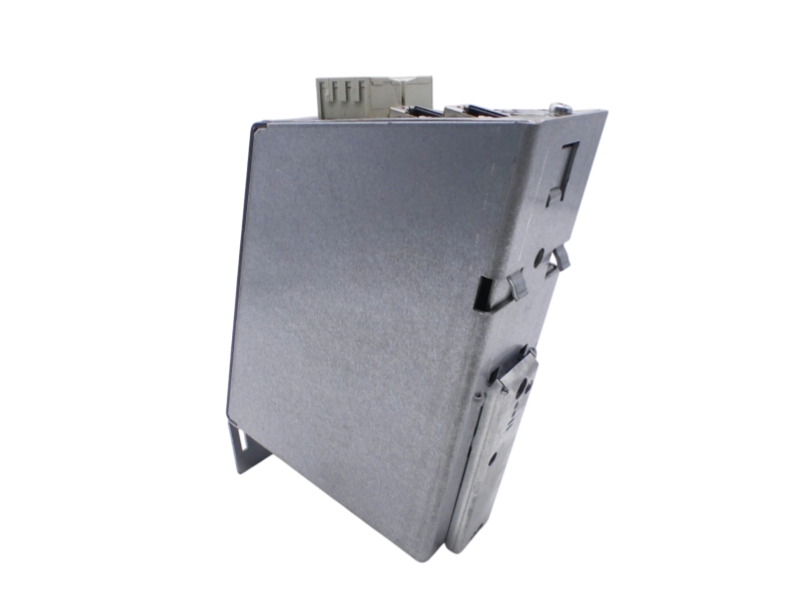

The Siemens 6SL3055-0AA00-3BA0 TM54F is a SINAMICS S120 cabinet terminal module that extends a compatible drive system with fail-safe digital inputs and outputs. It provides 10 F-DI, 4 F-DO and three 24 V sensor supplies, communicating with the control unit through DRIVE-CLiQ. The module supports machine-safety signal integration without requiring an external safety I/O interface for the assigned drive functions.
| Commercial Check | Verified Detail |
|---|---|
| Official Siemens lifecycle | PM300: Active Product |
| Ordering identity | Complete MLFB: 6SL3055-0AA00-3BA0 |
| Procurement basis | Confirm the exact TM54F MLFB, compatible DRIVE-CLiQ control unit, safety program, terminal wiring and cable requirement. |
| Parameter | Officially Verified Value |
|---|---|
| Article number | 6SL3055-0AA00-3BA0 |
| Product family | SINAMICS S120 TM54F Terminal Module |
| Fail-safe digital inputs | 10 |
| Fail-safe digital outputs | 4 |
| Sensor supplies | 3 × 24 V; two can be temporarily switched off for input dynamization |
| Input voltage range | -3 to +30 V DC; high level 15 to 30 V; low level -3 to +5 V |
| F-DO voltage / load | 24 V DC; maximum 0.5 A per fail-safe output |
| Input delay | Typically 30 µs L→H and 60 µs H→L |
| Output delay | Typically 300 µs L→H and 350 µs H→L |
| Safety sampling cycle | 4 to 25 ms, adjustable |
| Internal current requirement | 0.2 A at 24 V DC without DRIVE-CLiQ supply |
| Power loss | Maximum 4.5 W at 24 V DC |
| Interface | DRIVE-CLiQ; plug-in screw-type terminals for I/O |
| Safety rating | IEC 61508 SIL 2; EN ISO 13849-1 PL d and Category 3 |
| Dimensions | 50 × 151 × 110 mm (W × H × D) |
| Net weight | 0.483 kg |
Connects safety switches, emergency stops and drive-related safe-state signals.
Consolidates fail-safe inputs and outputs inside SINAMICS control cabinets.
Links field safety signals to compatible SINAMICS, SINUMERIK or SIMOTION control units.
Official Siemens product information lists 6SL3055-0AA00-3BA0 as PM300: Active Product.
The TM54F provides 10 fail-safe digital inputs and 4 fail-safe digital outputs.
It communicates through DRIVE-CLiQ.
Each 24 V DC fail-safe output supports a maximum load current of 0.5 A.
Official data lists IEC 61508 SIL 2 and EN ISO 13849-1 PL d, Category 3.
The module measures 50 × 151 × 110 mm and the exact article has a listed net weight of 0.483 kg.
Send the full MLFB, installed hardware, required quantity and destination. We will check availability, configuration fit, inspection scope, warranty terms and global delivery options.
Submit your inquiry for Siemens 6SL3055-0AA00-3BA0.
Industrial Spare Parts Support
Our service process focuses on traceable identification, configuration matching, condition inspection and practical delivery planning for Siemens SINAMICS TM54F safety terminal modules.
We compare the complete order number, product family, label details and requested revision.
DRIVE-CLiQ control unit, safety configuration, wiring and cable requirement are checked against the requested application.
Installed system context and replacement requirements are reviewed before shipment.
ESD-conscious packing, shipment documentation and global delivery options are arranged.
Real workplace images show our team reviewing industrial components, checking shipment details and handling automation spares before dispatch.
Visual review of industrial modules and traceability details.
Order and packing checks performed by the handling team.
Careful handling and visible-condition review before shipment.
| Service Item | What We Check | Purchasing Value |
|---|---|---|
| MLFB verification | Complete 6SL3055-0AA00-3BA0 marking and traceability details | Avoids family-level mismatch |
| System fit | DRIVE-CLiQ control unit, safety configuration, wiring and cable requirement | Supports installation planning |
| Application review | Control unit, F-DI/F-DO assignments, required safety level and cable details | Protects compatibility |
| Condition inspection | Housing, terminals, contacts, label readability and visible handling condition | Provides receiving criteria |
| ESD-conscious packing | Protective materials suitable for electronic modules | Reduces handling risk |
| Global delivery support | Destination, carrier options and shipment documents | Simplifies procurement |
A clear label image and the complete article number.
Controller, interface or surrounding system order numbers.
Control unit, F-DI/F-DO assignments, required safety level and cable details.
Quantity, destination, required date and requested warranty terms.
Retain the installed hardware configuration, parameter set and wiring information. Share the surrounding system context so compatibility can be reviewed before shipment and commissioning delays can be reduced.
Send your 6SL3055-0AA00-3BA0 requirement for availability verification, configuration review, inspection scope, warranty information and global shipping support.
Include the quantity and delivery destination for an efficient response.
