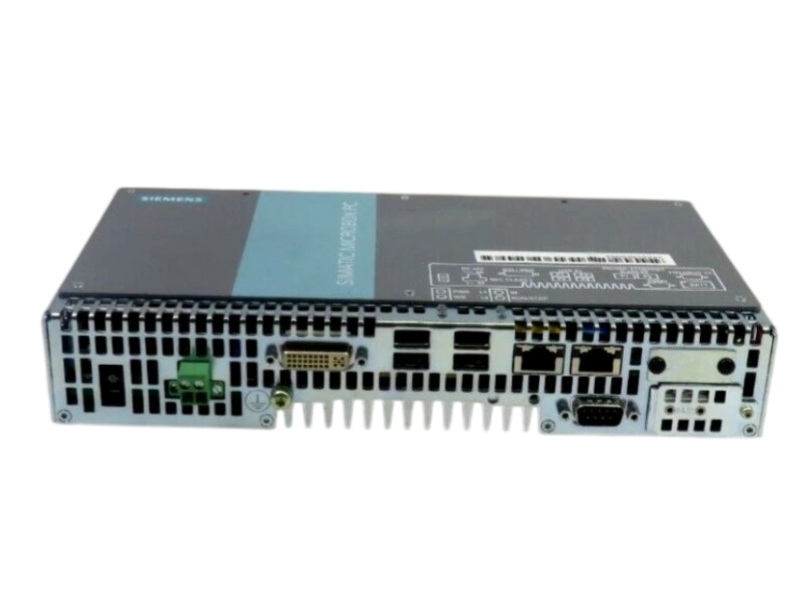

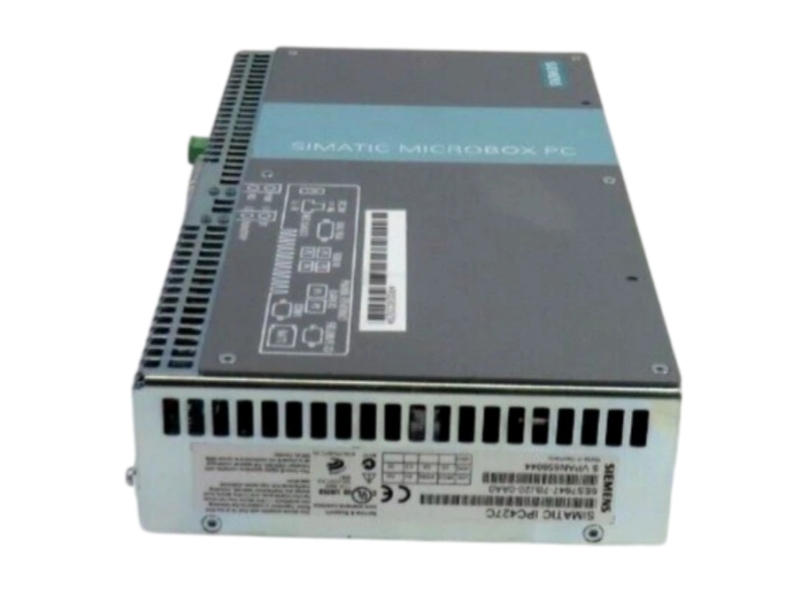

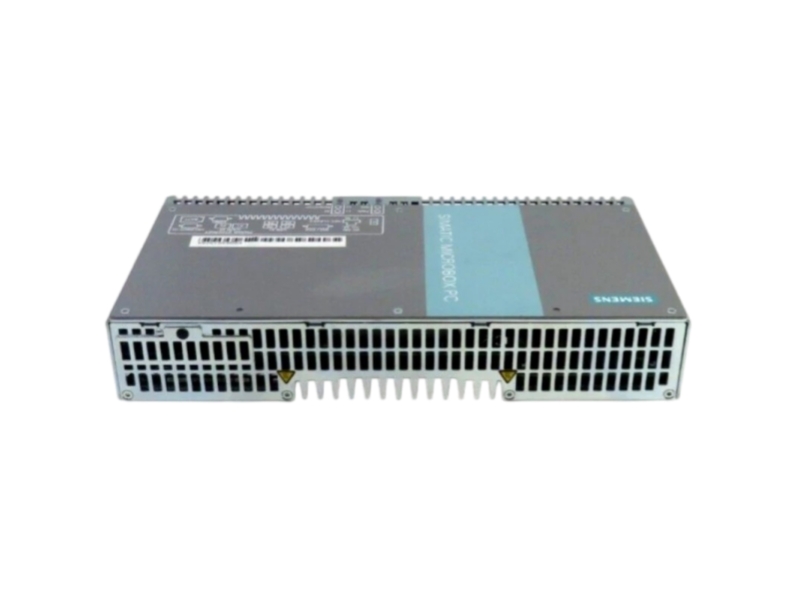

A compact fanless IPC427C platform for PC-based control, visualization and industrial data-processing tasks.
6ES7647-7BJ40-3XM0 belongs to the SIMATIC IPC427C Microbox PC family. Siemens IPC427C documentation confirms a compact 24 V DC industrial computer platform with DVI-I, serial and USB connectivity, buffered SRAM and optional PC/104 expansion. The fitted processor, memory, storage, communication options and software must be read from the exact device label and order record because they are configuration-dependent.
| Official lifecycle | |
| Procurement approach | Verify the complete 6ES7647-7BJ40-3XM0 label and its configured processor, memory, storage, interfaces and software before quotation. |
| Parameter | Official value |
|---|---|
| Complete configuration code | 6ES7647-7BJ40-3XM0 |
| Confirmed product family | SIMATIC IPC427C Microbox PC |
| Supply voltage | 24 V DC; 19.2 to 28.8 V |
| USB interfaces | 4 x USB 2.0 |
| Serial interface | COM1 RS-232; 9-pin D-sub |
| Display connection | DVI-I with integrated VGA |
| Buffered SRAM | 2 MB |
| Maximum PC/104 expansion modules | 3 |
| Enclosure protection | IP20 |
| Dimensions (W x H x D) | 262 x 142 x 47 mm |
| Weight, approx. | 2 kg |
Runs compatible control or automation software for machine-level tasks.
Connects to compatible displays through DVI-I or VGA.
Provides compact computing for approved data acquisition and processing workloads.
Use the applicable Siemens IPC427C manuals and the original device order record for lifecycle and replacement planning. This page does not assign a lifecycle classification to the complete 3XM0 configuration.
It identifies a configured device from the SIMATIC IPC427C Microbox PC family.
The IPC427C platform includes DVI-I with VGA, four USB 2.0 ports and a COM1 RS-232 interface.
Siemens IPC427C documentation gives 262 x 142 x 47 mm and an approximate weight of 2 kg.
No. Processor, memory, storage and software depend on the supplied configuration and must be checked from the device record.
Back up the operating system image, application data, licenses, network settings and automation configuration.
Send the complete part number, installed-system details, quantity and destination for stock verification, compatibility review, warranty terms and global delivery options.
Configuration review, condition inspection, packing and global delivery coordination for 6ES7647-7BJ40-3XM0.
| Review stage | What we check | Procurement value |
|---|---|---|
| MLFB verification | Complete 6ES7647-7BJ40-3XM0 suffix, label and hardware identity | Reduces substitution risk |
| System matching | Configured processor, RAM, storage, expansion hardware, operating system and licenses | Confirms functional fit |
| Electrical review | 24 V DC supply, protective earth and every connected peripheral or network interface | Confirms application suitability |
| Condition inspection | Housing, connectors, terminals and traceability markings | Documents offered condition |
| Protective packing | ESD protection, connector covers, moisture control and impact-resistant packing | Protects equipment in transit |
| Delivery follow-up | Quantity, destination, documents, tracking and warranty procedure | Supports planned maintenance |
Readable MLFB, serial or traceability label and installed hardware version.
Device label, processor, RAM, storage, operating system, licenses, ports and application image.
Supply, connectors, network media and adjacent equipment.
Quantity, destination, required date and preferred equipment condition.
Create a verified system image and record licenses, network settings, port assignments and expansion hardware before replacing the configured IPC427C.
Send the 6ES7647-7BJ40-3XM0 label, system context, quantity and destination for a configuration-focused response.
