Siemens confirms the SCALANCE W788-1 M12 configuration, industrial interfaces and PM400 phase-out status.

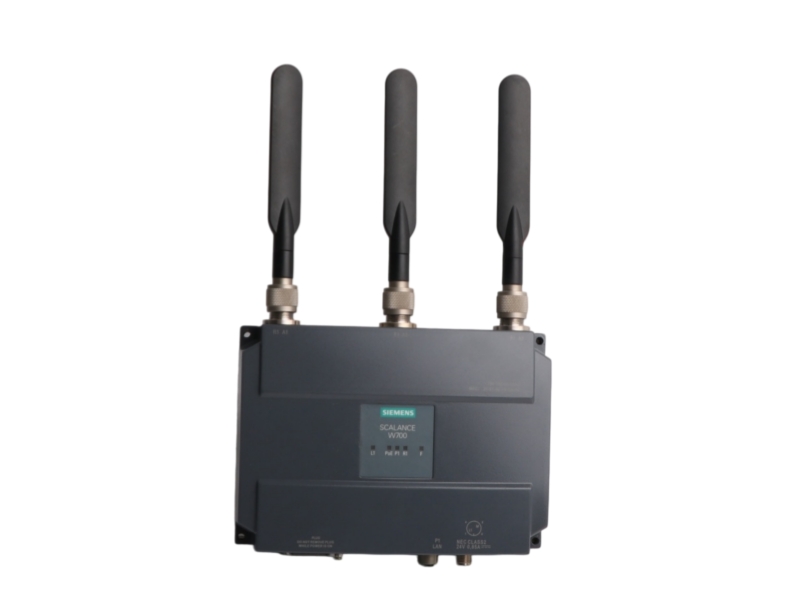

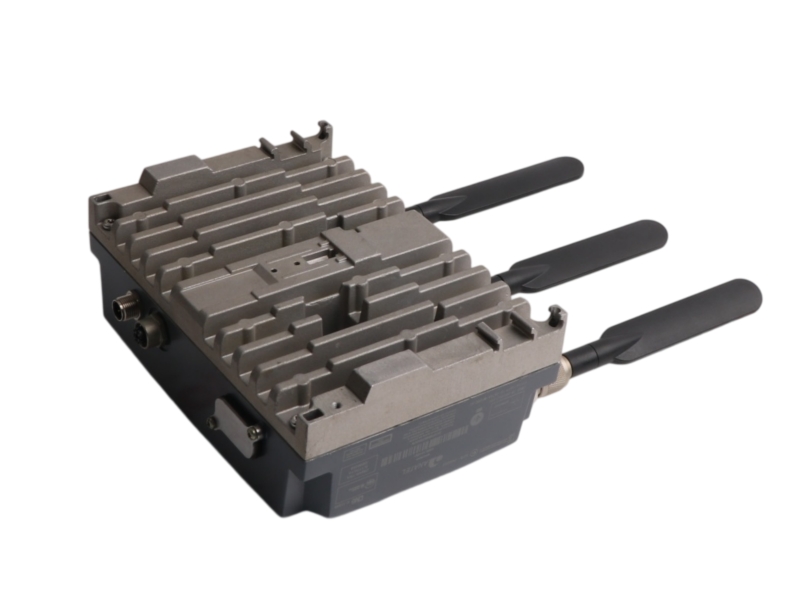

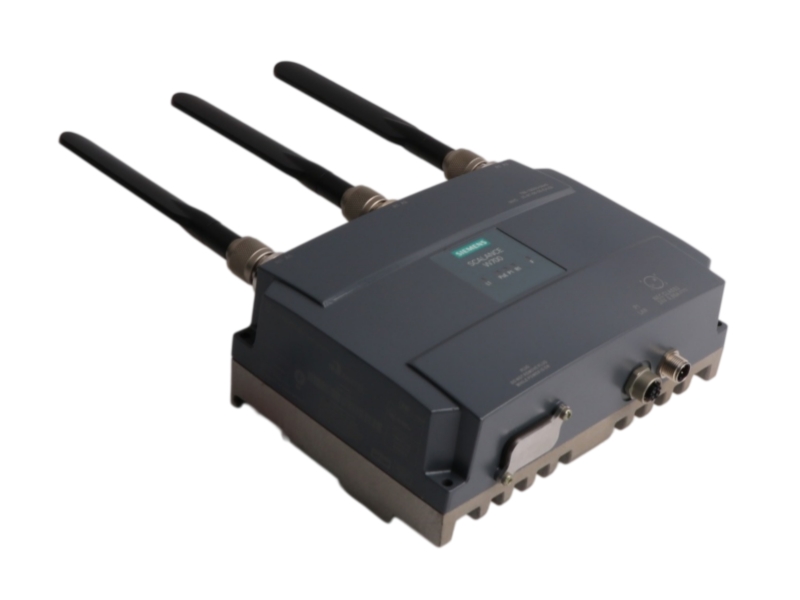

Siemens 6GK5788-1GD00-0AA0 is a SCALANCE W788-1 M12 Industrial Wireless LAN access point for indoor industrial environments. The official catalog specifies one radio, three N-CON antenna connections, IEEE 802.11a/b/g/h/n support, 2.4 and 5 GHz operation, and up to 450 Mbit/s gross data rate per radio. The unit provides one M12 Ethernet interface up to 1 Gbit/s, PoE, redundant 24 V DC supply, IP65 protection and WPA2 security support. Procurement should verify country approvals, antenna arrangement, power method, connector coding, firmware features and whether the officially identified successor is suitable for the engineered network.
| Commercial Item | Status |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Information |
|---|---|
| Manufacturer | Siemens |
| Manufacturer | Siemens |
| Complete Part Number | 6GK5788-1GD00-0AA0 |
| Product Type | SCALANCE W788-1 M12 IWLAN access point |
| Radio Modules | 1 |
| Antenna Connections | 3 × N-CON |
| Wireless Standards | IEEE 802.11a/b/g/h/n |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Gross Data Rate | Up to 450 Mbit/s per radio |
| Ethernet Interface | 1 × M12, up to 1 Gbit/s |
| Power | PoE or redundant 24 V DC via M12 A-coded connection |
| Protection Rating | IP65 |
| Operating Temperature | -20 °C to +60 °C |
| Security | WPA2 / IEEE 802.11i/e |
| Official Successor | 6GK5766-1GE00-7DA0 |
| Official Lifecycle | PM400: Phase Out Started; product phase-out since 2022-05-01 |
| Net Weight | 1.971 kg |
| Country of Origin | GERMANY |
| Application Context | Required Review |
|---|---|
| M7-400 interface expansion | Confirm the host module and available expansion position. |
| Industrial WLAN access point | Confirm coverage design, approved channels and country settings. |
| Mobile machine communication | Review roaming behavior, antenna placement and radio planning. |
| IP65 indoor wireless node | Check enclosure mounting, M12 cabling and environmental limits. |
| Legacy network migration | Compare the installed configuration with the official successor. |
Siemens lists 6GK5788-1GD00-0AA0 as PM400: Phase Out Started, with product phase-out since 2022-05-01. The official catalog identifies 6GK5766-1GE00-7DA0 as a successor; suitability still requires a network, approval, interface and configuration review.
It is a SCALANCE W788-1 M12 industrial wireless access point with one radio and M12 interfaces.
Siemens specifies IEEE 802.11a/b/g/h/n operation in the 2.4 GHz and 5 GHz bands.
The official catalog lists PoE and redundant 24 V DC supply through an M12 A-coded connection.
Siemens states PM400: Phase Out Started, with product phase-out since 2022-05-01.
The official catalog identifies 6GK5766-1GE00-7DA0, subject to network and approval checks.
Check label data, antennas, country approvals, power, M12 cabling, firmware settings and the wireless design.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Structured checks for Siemens 6GK5788-1GD00-0AA0 identity, wireless configuration, visible condition and international shipment preparation.
Request exact model verification, readable label photographs, condition evidence, written commercial terms, traceable contact information and a documented return process.
Review the installed system, hardware revision, electrical interfaces, connectors, software records and installation constraints.
Risks include incomplete suffixes, reused photographs, unverifiable claims, pressure to accept a similar model and promises of stock or delivery without evidence.
They help protect sensitive industrial electronics and create a traceable handover from inspection through delivery.
