Dual-band industrial wireless client connectivity with M12 Ethernet, PoE and redundant 24 V DC supply.
Siemens 6GK5738-1GY00-0AA0 is a SCALANCE W738-1 M12 industrial WLAN client module for connecting Ethernet devices to industrial wireless networks. It supports IEEE 802.11a/b/g/h/n on 2.4 and 5 GHz bands with gross data rates up to 300 Mbit/s, one integrated radio, 2x2 MIMO and two N-Connect antenna sockets. Two 10/100 Mbit/s M12 Ethernet ports form an integrated switch, with PoE on port 2, while the A-coded M12 supply supports redundant 24 V DC operation. Procurement should verify national approvals, firmware, antenna selection, KEY-PLUG licensing, power method, M12 cable pinout, mounting arrangement and the existing network configuration.
PM300: Active Product
Siemens lists the complete order code as an active product.
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
| Complete Part Number | 6GK5738-1GY00-0AA0 |
| Product Family | SCALANCE W738 M12 |
| Product Type | W738-1 M12 industrial WLAN client module |
| Wireless Standards | IEEE 802.11a/b/g/h/n |
| Frequency Bands | 2.4 GHz and 5 GHz |
| Wireless Data Rate | Up to 300 Mbit/s gross |
| Radio Architecture | 1 radio; 2x2 MIMO; 2 spatial streams |
| Antenna Connections | 2 N-Connect sockets, 50 Ω nominal |

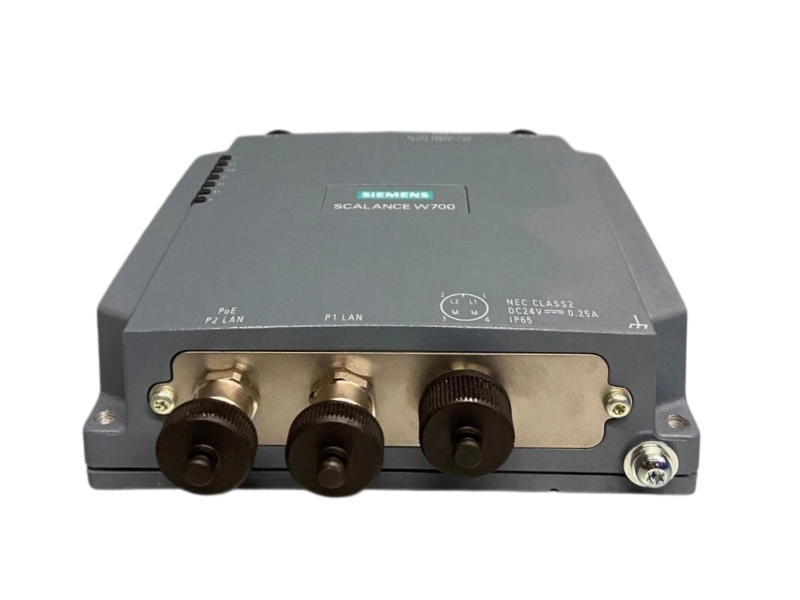

| Industrial Ethernet | 2 M12 sockets, 10/100 Mbit/s, integrated 2-port switch; PoE on port 2 |
| Direct Power Supply | 24 V DC via A-coded M12; 16.8 to 31.2 V DC; electrically isolated redundant design |
| PoE Supply | 48 V DC; permitted range 36 to 57 V DC; IEEE 802.3af/at Class 2 |
| Typical Current | 250 mA at 24 V DC; 125 mA with PoE |
| Power Loss | 3.6 W typical at 24 V DC; 6 W maximum; 6 W typical with PoE |
| Plug Support | C-PLUG and KEY-PLUG |
| Protection Rating | IP65 |
| Operating Temperature | -20 °C to +60 °C |
| Dimensions | 140 × 160 × 45 mm |
| Net Weight | 0.600 kg |
| Official Lifecycle | PM300: Active Product |
| Country of Origin | Germany |
| Application Area | How the Client Module Is Used |
|---|---|
| Mobile machine connectivity | Connects compatible Ethernet equipment to an industrial WLAN where cable movement is impractical. |
| Automated guided systems | Supports wireless Ethernet communication when radio planning, roaming and national approvals are correctly configured. |
| IP65 machine installation | Provides protected M12 and N-Connect interfaces for suitable industrial mounting locations. |
| Installed-base maintenance | Supports like-for-like service after firmware, KEY-PLUG, antenna, power and network settings are verified. |
It identifies the Siemens SCALANCE W738-1 M12 industrial WLAN client module for operation outside the USA and Israel.
Siemens specifies IEEE 802.11a/b/g/h/n operation on 2.4 GHz and 5 GHz bands, with gross data rates up to 300 Mbit/s.
It supports redundant 24 V DC through an A-coded M12 connector or PoE through Ethernet port 2.

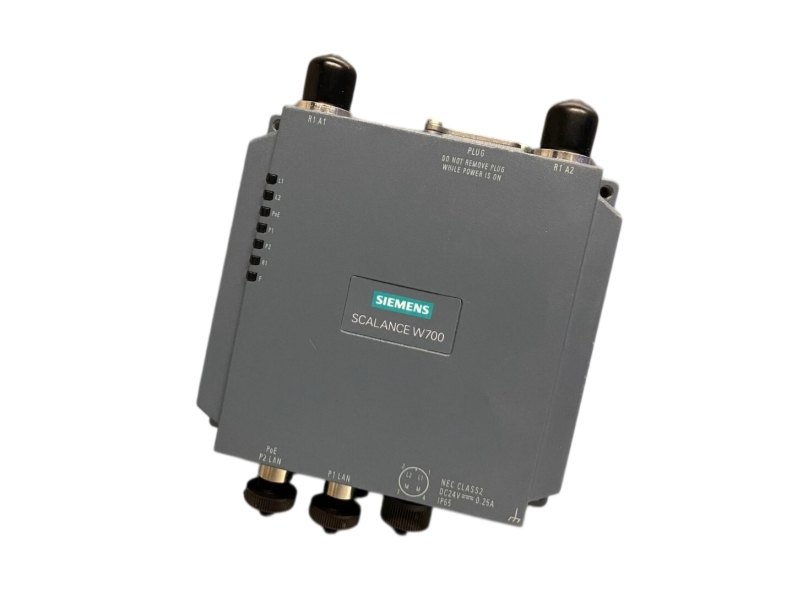

The device has two N-Connect antenna sockets for the single-radio 2x2 MIMO architecture.
No. Siemens currently lists the complete order code as PM300: Active Product.
Verify firmware, national approvals, KEY-PLUG or C-PLUG data, antennas, M12 cabling, power method, mounting and the saved network configuration.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
A documented procurement workflow for Siemens 6GK5738-1GY00-0AA0 and SCALANCE industrial wireless client replacement planning.
The full order code, suffix, certification marking and visible condition are checked against the inquiry.
Firmware, country approvals, antennas, M12 interfaces, power method and configuration data are reviewed.
Connector protection, antistatic handling, shipment documents and tracking are coordinated before dispatch.
| Control Point | What We Review |
|---|---|
| Identity | Brand, complete order code, suffix, readable nameplate and approval markings |
| Technical context | Firmware, antennas, KEY-PLUG or C-PLUG, M12 Ethernet, power, IP settings and WLAN security |
| Visual inspection | Housing, seals, LED area, M12 sockets, N-Connect sockets, grounding point and visible condition |
| Packaging | Protective caps, antistatic handling, cushioning and outer-carton protection |
| Logistics | Destination, carrier option, tracking and customs paperwork |
| After-sales | Written warranty, order record, inspection evidence and return authorization route |
Check whether the supplier records the complete part number, provides readable product and label photos, states condition and warranty terms in writing and avoids unsupported compatibility claims.
Request the commercial offer, complete order code, condition statement, inspection photos, packaging plan, shipping method, warranty terms and return authorization procedure.
Review firmware, radio approvals, antenna system, KEY-PLUG or C-PLUG, M12 Ethernet pinout, PoE or 24 V DC supply and saved network configuration.
Risk signals include incomplete suffixes, hidden nameplates, unclear national approvals, unsupported compatibility claims, vague warranty wording and promises of unverified stock quantities or delivery dates.

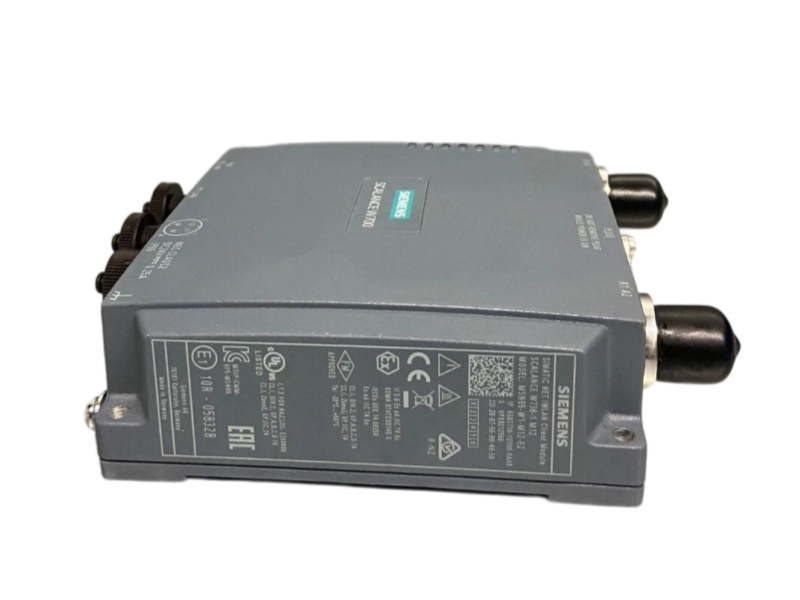

Yes. Available photos can cover the complete unit, readable label, M12 and N-Connect interfaces, grounding point, packaging and visible accessories.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
