Eight-port Gigabit Ethernet and PoE extender for SCALANCE XM-400 switches
Siemens 6GK5408-0PA00-8AP2 is the SCALANCE PE408PoE port extender for compatible XM-400 managed modular Industrial Ethernet switches. It expands the host switch with eight RJ45 ports supporting 10, 100 and 1000 Mbit/s data rates and Power over Ethernet according to IEEE 802.3at. A separate power supply is required for PoE operation. The extender supports demanding industrial network installations where additional copper Ethernet and powered device connections are required. Procurement checks should confirm the exact order code, host switch compatibility, PoE power budget, external supply, port requirements, mounting arrangement, network topology and environmental conditions.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Phase Out Announce |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5408-0PA00-8AP2 |
| Product Type | Port extender with Power over Ethernet |
| Product Type Designation | PE408PoE |
| Product Family | SCALANCE XM-400 port extenders |
| Ethernet Ports | 8 x RJ45 |
| Transfer Rates | 10 / 100 / 1000 Mbit/s |
| PoE Ports | Up to 8 |
| PoE Standard | IEEE 802.3at |
| PoE Power per Port | Up to 30 W |
| Total PoE Power | Up to 180 W |
| External PoE Supply | Required |
| Maximum Current Consumption | 0.2 A |
| Power Loss at 24 V DC | 4.8 W |
| Degree of Protection | IP20 |
| Operating Temperature | -40 to +60 °C |
| Net Weight | 0.832 kg |
| Country of Origin | Germany |
| Applicable System | Compatible SCALANCE XM-400 managed modular Industrial Ethernet switch |
|---|---|
| System Role | Adds eight copper Gigabit Ethernet ports with optional PoE delivery |
| Typical Applications | Industrial network expansion, cameras, access points and powered Ethernet field devices |
| Replacement Focus | Host switch, PoE budget, external supply, firmware, mounting and network topology |
A matching enclosure or partial order number does not confirm compatibility. Compare project records and product-label evidence before replacement.
Siemens currently lists 6GK5408-0PA00-8AP2 with the lifecycle wording Phase Out Announce. This is not the same as Discontinued. Procurement and migration planning should verify the host switch, PoE power supply, port allocation, firmware, mounting and network topology without assuming a replacement model.
It identifies the Siemens SCALANCE PE408PoE port extender for compatible XM-400 modular switches.
The extender adds eight RJ45 ports supporting 10, 100 and 1000 Mbit/s.
The ports support Power over Ethernet according to IEEE 802.3at when the required external supply is provided.
Check the host XM-400 switch, external PoE supply, total power budget, port allocation, mounting and network topology.
Siemens currently uses the lifecycle wording Phase Out Announce for this exact model.

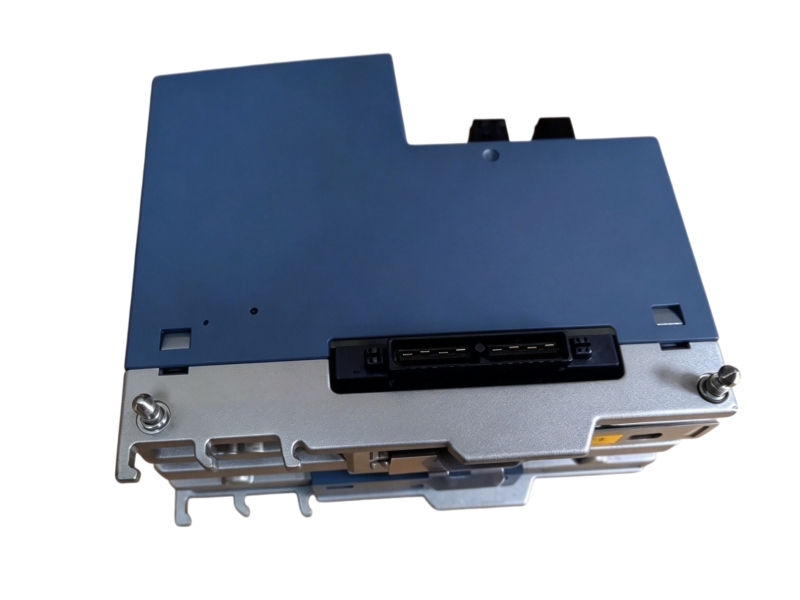

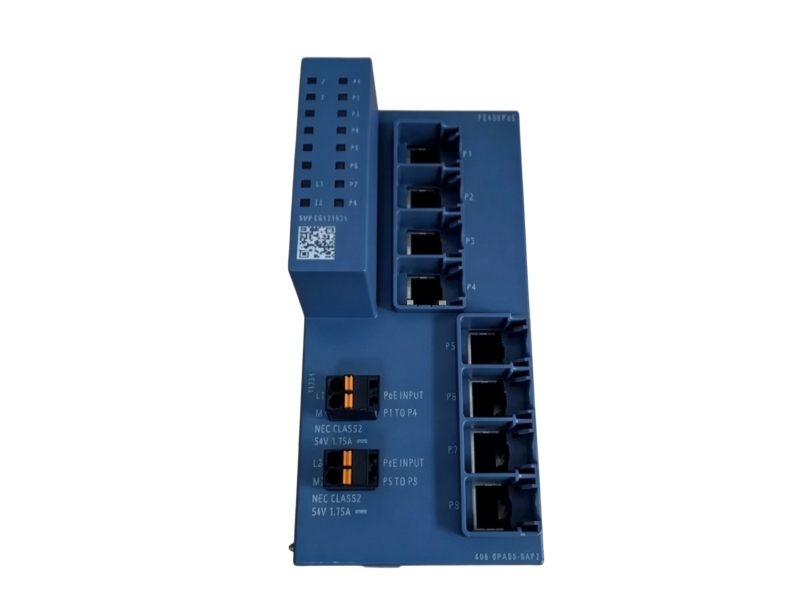

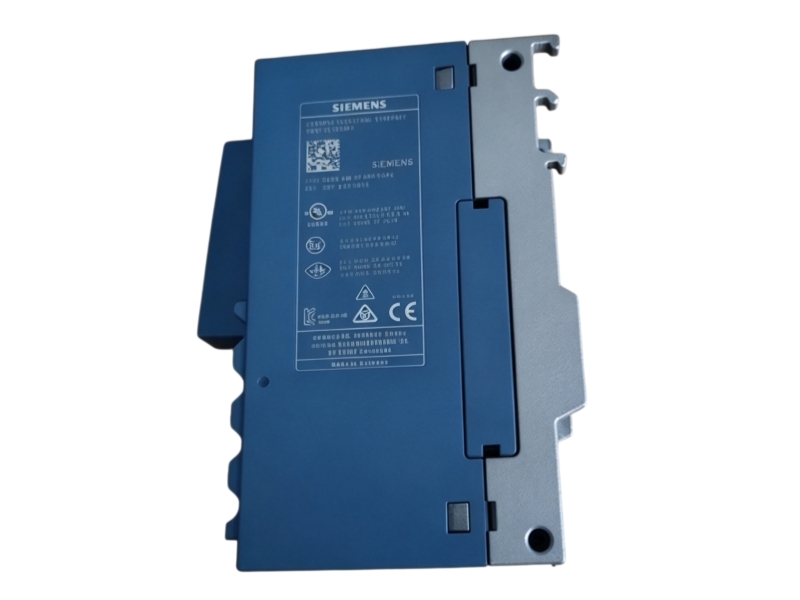

Available product, label, connector and packaging photographs can be reviewed during order verification.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for Siemens 6GK5408-0PA00-8AP2.
| Model and suffix verification | The complete order code and suffix are checked against the inquiry, label evidence and supporting records. |
|---|---|
| Condition confirmation | Visible condition, packaging status and supplied accessories are reviewed before shipment. |
| Technical compatibility review | Engineers compare system fit, interfaces, electrical requirements and project documentation. |
| Product and label photo confirmation | Available product, nameplate and packaging photographs can be reviewed for order-code and condition checks. |
| Protective packaging | The unit is prepared with suitable protective materials to reduce handling and transit risk. |
| Worldwide shipping | International shipping options are coordinated according to destination and order requirements. |
| Shipment tracking | Tracking information is provided when issued by the selected carrier. |
| Customs documentation | Commercial and shipping documents are prepared for the agreed delivery arrangement. |
| Written warranty terms | Applicable Stockoems warranty scope and terms are documented with the commercial offer. |
| Return authorization process | Return requests are reviewed through a documented authorization process and agreed conditions. |
| After-sales response | Our team supports order-document, shipment and product-identification questions after delivery. |
Confirm the exact PE408PoE order code, compatible XM-400 host switch, eight RJ45 ports, IEEE 802.3at requirements, external PoE supply, total power budget, mounting and network design. Similar housings or partial model numbers do not establish compatibility.
Look for consistent model identification, clear condition statements, traceable commercial documents, product-label evidence, written warranty terms and a defined return process.
Review the quotation, complete order code, manufacturer label, condition photographs, packing information, warranty scope, shipping terms, customs documents and return authorization conditions.
Match 6GK5408-0PA00-8AP2 in full and compare firmware, interfaces, electrical requirements, wiring and project records with the installed system.
Warning signs include incomplete model numbers, refusal to provide nameplate evidence, conflicting technical statements, unclear condition descriptions and an undefined return process.
