Two-channel high-speed voltage output module for SIMATIC ET 200S
Siemens 6ES7135-4FB52-0AB0 is a 15 mm SIMATIC ET 200S electronic module with two high-speed analog voltage outputs. The 2AO U HS module supports ±10 V, ±5 V and 1 to 5 V output ranges with 16-bit resolution and a 0.1 ms cycle time. It provides diagnostics through the group-fault LED and supports isochronous operation and identification data functions. The module is used where fast, precise voltage commands are required in distributed control or motion-related applications. Procurement checks should confirm the complete suffix, terminal module, IM 151 High Feature compatibility, output range, wiring, load supply and STEP 7 configuration.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | Product Cancellation |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6ES7135-4FB52-0AB0 |
| Product Type | High-speed analog output electronic module |
| Product Family | SIMATIC ET 200S |
| Module Designation | 2AO U HS |
| Number of Analog Outputs | 2 |
| Output Ranges | ±10 V, ±5 V, 1 to 5 V |
| Resolution | 16 bit |
| Cycle Time | 0.1 ms |
| Rated Load Voltage | 24 V DC |
| Isochronous Operation | Supported |
| Diagnostics | Group fault LED and readable diagnostic information |
| Module Width | 15 mm |
| Shielded Cable Length | Up to 200 m; up to 20 m at 100 µs |
| Net Weight | 0.056 kg |
| Country of Origin | Germany |
| Applicable System | SIMATIC ET 200S with compatible IM 151 High Feature interface module |
|---|---|
| System Role | Generates two high-speed analog voltage command signals |
| Typical Applications | Fast actuator references, motion-related control and distributed analog output tasks |
| Replacement Focus | Terminal module, interface module, output range, wiring and STEP 7 parameters |
A matching enclosure or partial order number does not confirm compatibility. Compare project records and product-label evidence before replacement.
Siemens lists 6ES7135-4FB52-0AB0 under Product Cancellation and identifies it as a spare part. This status must not be rewritten as Active or assumed to mean direct interchangeability with another module. Confirm the terminal module, IM 151 interface, output ranges, wiring and project configuration before replacement.
It identifies the Siemens ET 200S 2AO U HS high-speed analog voltage output module.
The two channels support ±10 V, ±5 V and 1 to 5 V output ranges.
Siemens specifies a 0.1 ms cycle time for this high-speed module.
Check the terminal module, compatible IM 151 High Feature interface, output range, wiring, shielding and STEP 7 parameters.
Siemens lists this exact model under Product Cancellation and identifies it as a spare part.

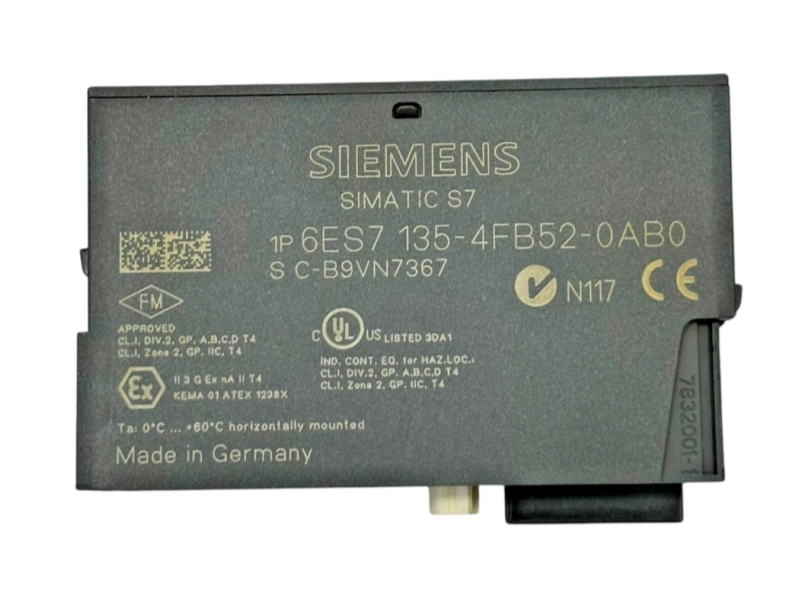

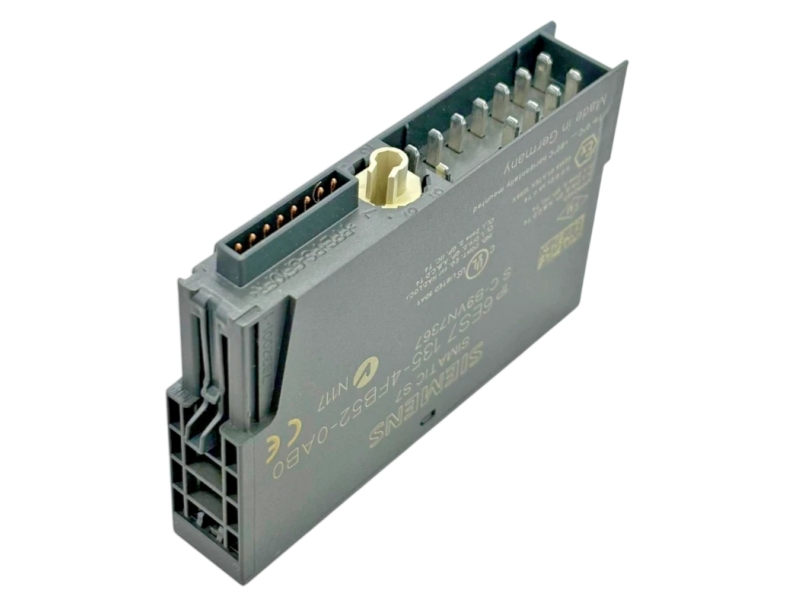

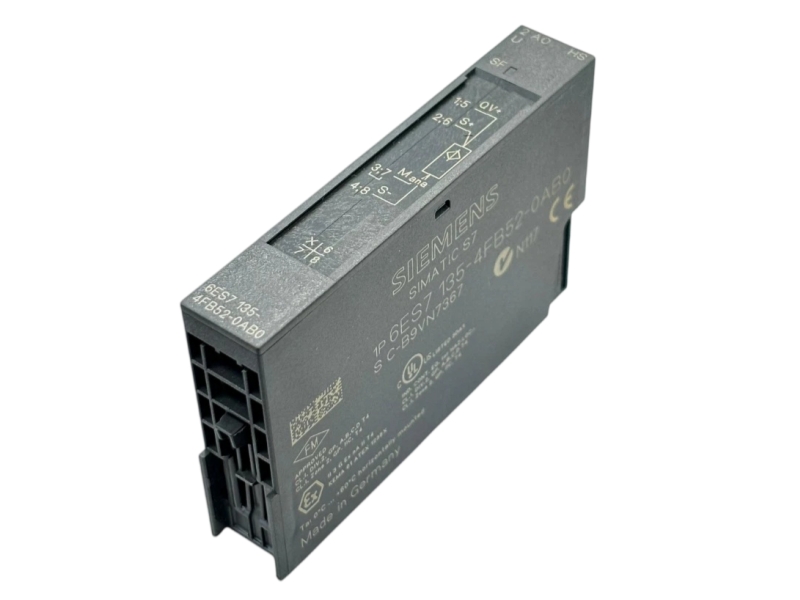

Available product, label, terminal and packaging photographs can be reviewed during order verification.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com
WhatsApp: +86 18159889985
Structured verification, inspection, documentation and delivery support for Siemens 6ES7135-4FB52-0AB0.
| Model and suffix verification | The complete order code and suffix are checked against the inquiry, label evidence and supporting records. |
|---|---|
| Condition confirmation | Visible condition, packaging status and supplied accessories are reviewed before shipment. |
| Technical compatibility review | Engineers compare system fit, interfaces, electrical requirements and project documentation. |
| Product and label photo confirmation | Available product, nameplate and packaging photographs can be reviewed for order-code and condition checks. |
| Protective packaging | The unit is prepared with suitable protective materials to reduce handling and transit risk. |
| Worldwide shipping | International shipping options are coordinated according to destination and order requirements. |
| Shipment tracking | Tracking information is provided when issued by the selected carrier. |
| Customs documentation | Commercial and shipping documents are prepared for the agreed delivery arrangement. |
| Written warranty terms | Applicable Stockoems warranty scope and terms are documented with the commercial offer. |
| Return authorization process | Return requests are reviewed through a documented authorization process and agreed conditions. |
| After-sales response | Our team supports order-document, shipment and product-identification questions after delivery. |
Confirm the exact suffix, 2AO U HS identity, compatible IM 151 High Feature interface, terminal module, ±10 V, ±5 V or 1 to 5 V range, wiring, shielding and STEP 7 parameters. Similar housings or partial model numbers do not establish compatibility.
Look for consistent model identification, clear condition statements, traceable commercial documents, product-label evidence, written warranty terms and a defined return process.
Review the quotation, complete order code, manufacturer label, condition photographs, packing information, warranty scope, shipping terms, customs documents and return authorization conditions.
Match 6ES7135-4FB52-0AB0 in full and compare firmware, interfaces, electrical requirements, wiring and project records with the installed system.
Warning signs include incomplete model numbers, refusal to provide nameplate evidence, conflicting technical statements, unclear condition descriptions and an undefined return process.
