24-port managed Layer 2 industrial Ethernet switch for resilient control networks

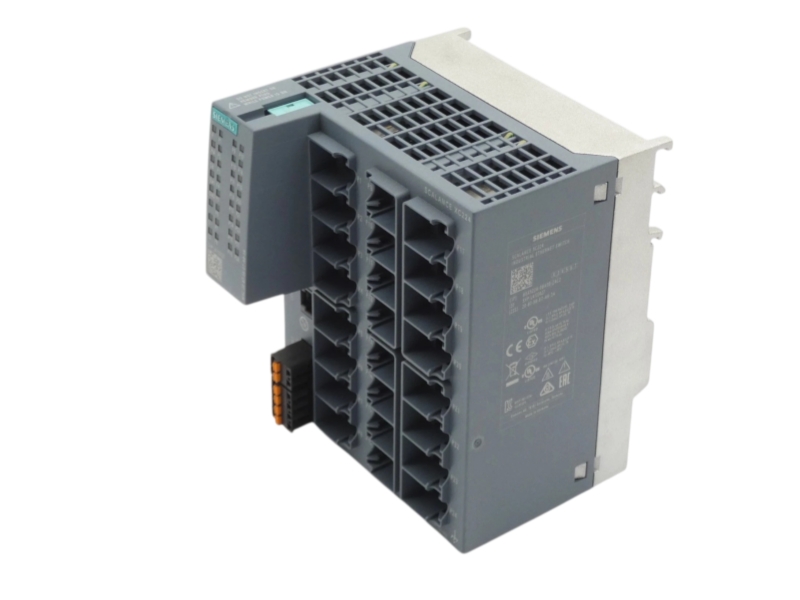

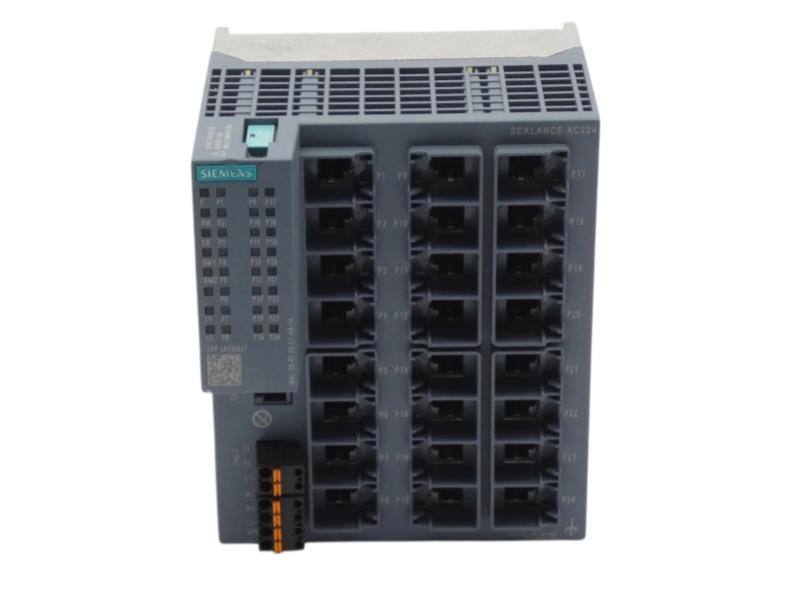

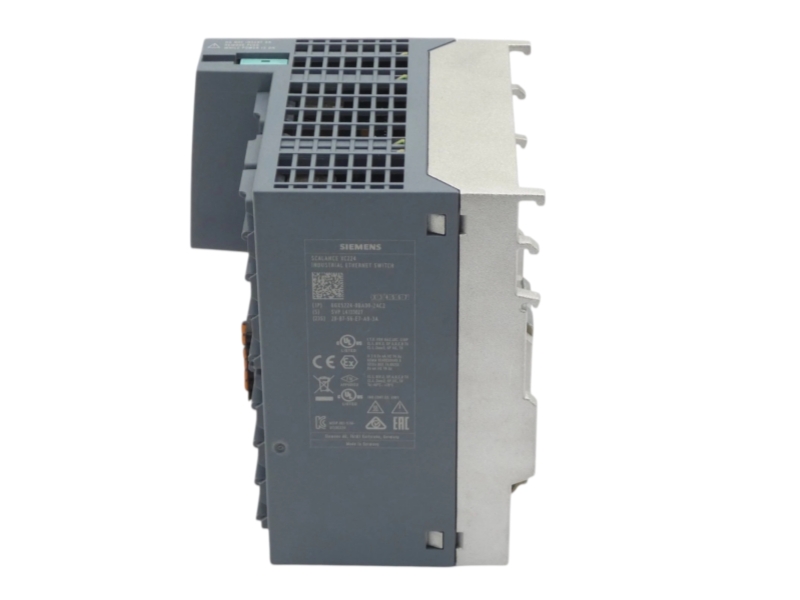

Siemens 6GK5224-0BA00-2AC2 is a SCALANCE XC224 managed Layer 2 Industrial Ethernet switch for control-network segmentation and resilient plant communication. The unit provides 24 RJ45 ports at 10/100 Mbps, one console port, diagnostic LEDs and a redundant power supply arrangement. Siemens specifies an operating range from -40 °C to +70 °C and mounting on DIN rail, S7 mounting rail or wall. It supports functions including RSTP and VLAN, operates as a PROFINET IO device, is EtherNet/IP-compliant and includes a C-PLUG slot. Verify firmware, topology, power, mounting and project settings before replacement.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | PM300: Active Product |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6GK5224-0BA00-2AC2 |
| Product Type | SCALANCE XC224 managed Layer 2 IE switch |
| Series | SCALANCE XC-200 managed |
| Security Certification | IEC 62443-4-2 certified |
| Ethernet Ports | 24 × RJ45, 10/100 Mbps |
| Console Interface | 1 console port |
| Diagnostics | Diagnostic LEDs |
| Power Arrangement | Redundant power supply |
| Operating Temperature | -40 °C to +70 °C |
| Mounting | DIN rail, S7 mounting rail or wall |
| Network Functions | RSTP, VLAN, PROFINET IO device and EtherNet/IP compliance |
| Configuration Storage | C-PLUG slot |
| Packaging Dimensions | 120 × 123 × 125 mm |
| Net Weight | 0.880 kg |
| Official Lifecycle | PM300: Active Product |
| Country of Origin | GERMANY |
| Use Area | Procurement Relevance |
|---|---|
| Industrial Ethernet aggregation | Provides 24 managed copper ports for machine and cell networks. |
| Network segmentation | VLAN functions support planned separation of industrial traffic. |
| Redundant control networks | RSTP and redundant power support resilient topology design. |
| Harsh industrial environments | Specified temperature range supports demanding cabinet locations. |
Siemens lists 6GK5224-0BA00-2AC2 as PM300: Active Product. Replacement planning should still verify firmware, configuration, network protocols, power wiring, C-PLUG data and mounting conditions.
It identifies the SCALANCE XC224 managed Layer 2 Industrial Ethernet switch variant.
Siemens specifies 24 RJ45 ports operating at 10/100 Mbps.
The official description includes RSTP, VLAN, PROFINET IO device operation and EtherNet/IP compliance.
Siemens specifies DIN rail, S7 mounting rail or wall mounting.
Siemens lists this complete order number as PM300: Active Product.
Check firmware, 24-port requirement, power wiring, topology, configuration, C-PLUG data and label photos.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6GK5224-0BA00-2AC2.
| Stage | What We Check | Buyer Input |
|---|---|---|
| 1. Order-code review | Brand, complete part number and suffix | Installed label photos |
| 2. Technical review | Hardware, connections and project requirements | Installed-system details |
| 3. Physical inspection | Housing, labels, interfaces and included hardware | Requested photo angles |
| 4. Dispatch preparation | Protective packing, documents and tracking | Destination and consignee requirements |
For this XC224 switch, provide the network topology, firmware, VLAN and redundancy settings, power wiring, C-PLUG information, mounting method and clear label and port photos.
Look for complete order-code verification, clear condition statements, traceable product and label photos, written warranty terms, a defined return authorization process and technical claims tied to the exact model.
Altered labels, unclear suffixes, reused photos, unverified compatibility, missing return terms and pressure around delivery or payment are common risk signals.
Compare the full suffix, hardware configuration, connectors, supply data, engineering software, project requirements and revision before accepting any alternative.
