LED-backlit text operator panel with PROFIBUS DP communication

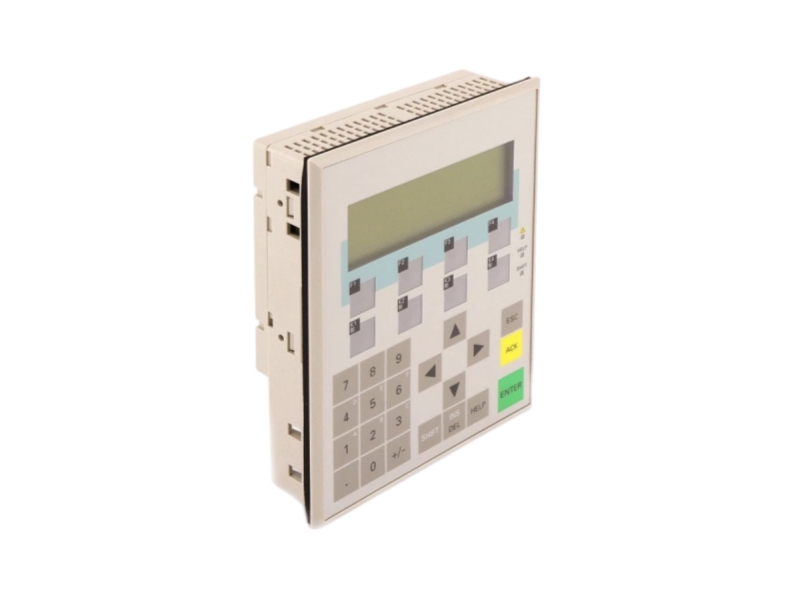

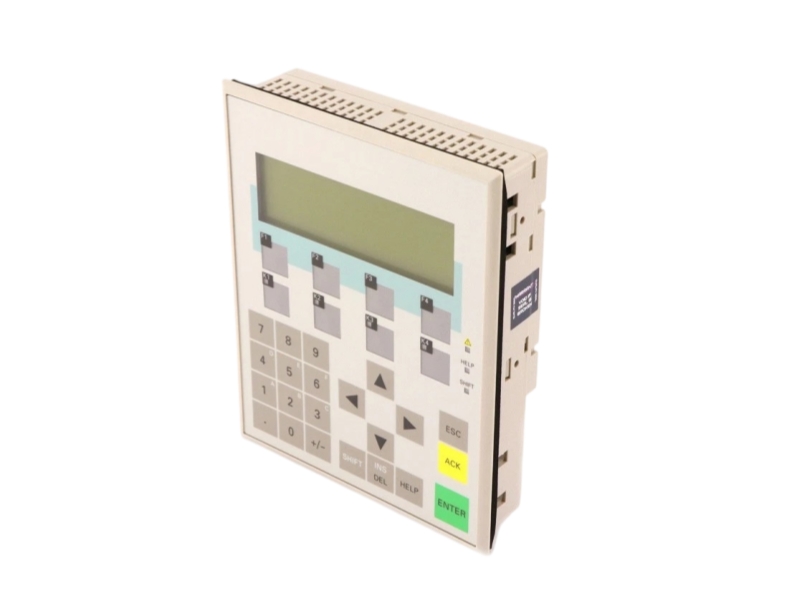

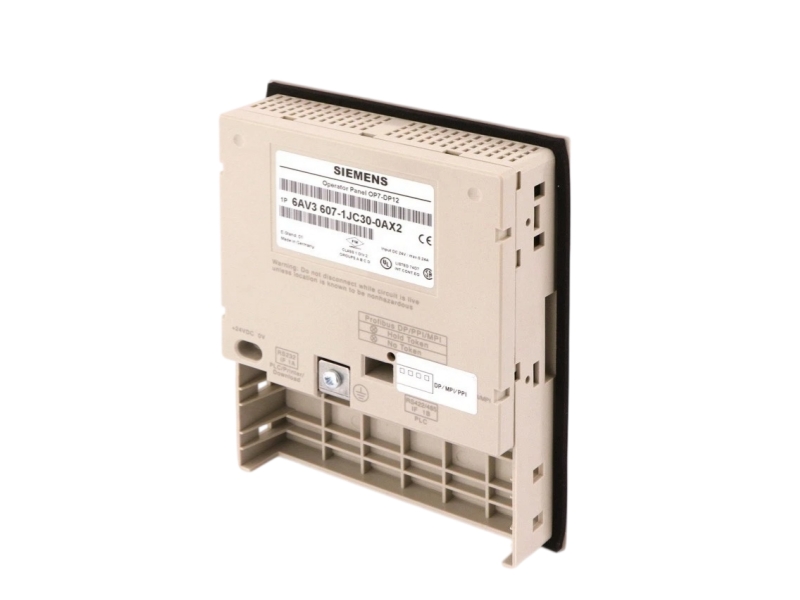

Siemens 6AV3607-1JC30-0AX2 is a SIMATIC OP7/DP12 operator panel supplied as a spare part for established machine-control installations. Siemens specifies an LED-backlit LC display arranged in four lines with 20 characters per line. The panel supports native drivers for SIMATIC S5, 505, S7 and M7 systems and communicates through PROFIBUS DP at up to 12 Mbaud. It carries UL and CSA approval. When sourcing a replacement, verify the complete suffix, mounting cutout, supply and connector details, network address, existing configuration backup and panel label. Siemens states that the product is cancelled without a replacement product.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Official Lifecycle | End Product Lifecycle |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Siemens |
|---|---|
| Complete Part Number | 6AV3607-1JC30-0AX2 |
| Product Type | OP7/DP12 operator panel |
| Series | SIMATIC OP7 |
| Display | LC display with LED backlight |
| Text Layout | 4 lines, 20 characters per line |
| Supported Native Drivers | SIMATIC S5, 505, S7 and M7 |
| Communication | PROFIBUS DP, 12 Mbaud |
| Approvals | UL and CSA |
| Packaging Dimensions | 18.7 × 15.4 × 5.6 cm |
| Net Weight | 0.503 kg |
| Official Lifecycle | End Product Lifecycle |
| Country of Origin | GERMANY |
| Use Area | Procurement Relevance |
|---|---|
| Legacy machine visualization | Maintains operator access in installed OP7-based machines. |
| PROFIBUS DP operator stations | Supports established DP networks at the specified communication rate. |
| SIMATIC system maintenance | Applies to validated S5, 505, S7 or M7 configurations. |
| Installed-base replacement | Requires mechanical, electrical and project-level matching. |
Siemens SiePortal lists 6AV3607-1JC30-0AX2 as End Product Lifecycle and states that it is cancelled without a replacement product. Preserve the original configuration and verify the installed network and mechanical details before replacement.
It identifies the Siemens OP7/DP12 operator-panel variant with PROFIBUS DP communication.
Siemens specifies an LED-backlit LC display with four lines and 20 characters per line.
The official description lists SIMATIC S5, 505, S7 and M7.
The official product description states PROFIBUS DP at 12 Mbaud.
Siemens lists the product as End Product Lifecycle and cancelled without a replacement product.
Do not assume interchangeability; compare the suffix, cutout, connectors, network settings, drivers and project backup.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
Verification, inspection, packaging and logistics support for Siemens 6AV3607-1JC30-0AX2.
| Stage | What We Check | Buyer Input |
|---|---|---|
| 1. Order-code review | Brand, complete part number and suffix | Installed label photos |
| 2. Technical review | Hardware, connections and project requirements | Installed-system details |
| 3. Physical inspection | Housing, labels, interfaces and included hardware | Requested photo angles |
| 4. Dispatch preparation | Protective packing, documents and tracking | Destination and consignee requirements |
For this OP7/DP12 panel, provide the controller family, PROFIBUS DP address, connector and supply details, cutout measurements, configuration backup and clear front, rear and label photos.
Look for complete order-code verification, clear condition statements, traceable product and label photos, written warranty terms, a defined return authorization process and technical claims tied to the exact model.
Altered labels, unclear suffixes, reused photos, unverified compatibility, missing return terms and pressure around delivery or payment are common risk signals.
Compare the full suffix, hardware configuration, connectors, supply data, engineering software, project requirements and revision before accepting any alternative.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
