SCALANCE XC-200
Managed Layer 2 Industrial Ethernet switch
Siemens Industrial Ethernet
Eight 10/100/1000 Mbit/s RJ45 ports with EtherNet/IP default operation and managed network functions.
Siemens 6GK5208-0GA00-2TC2 is the EtherNet/IP-default version of the SCALANCE XC208G managed Layer 2 Industrial Ethernet switch. Its eight electrical RJ45 ports support 10, 100 and 1000 Mbit/s connections for industrial network segments.
The switch combines redundant power connection, LED diagnostics, a console interface, redundancy functions and IEEE 1588v2 PTP. Procurement checks should preserve the complete -2TC2 suffix because Siemens lists protocol-specific XC208G variants under different article numbers.
| Item | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Article number | 6GK5208-0GA00-2TC2 |
| Official designation | SCALANCE XC208G (E/IP) manageable Layer 2 IE switch |
| Product family | SCALANCE XC-200 managed |
| Lifecycle | PM300: Active Product |
| Country of origin | GERMANY |
| Technical Item | Official Data |
|---|---|
| Ethernet ports | 8 |
| Port type | RJ45 electrical |
| Supported rates | 10/100/1000 Mbit/s per port |
| Default protocol | EtherNet/IP |
| Device class | Managed Layer 2 Industrial Ethernet switch |
| Console interface | 1 console port |
| Power connection | Redundant 24 V DC supply |
| Time synchronization | IEEE 1588v2 PTP |
| Diagnostics | Status and diagnostic LEDs |
| Protection rating | IP20 |
| Operating temperature | -40 to +70 °C |

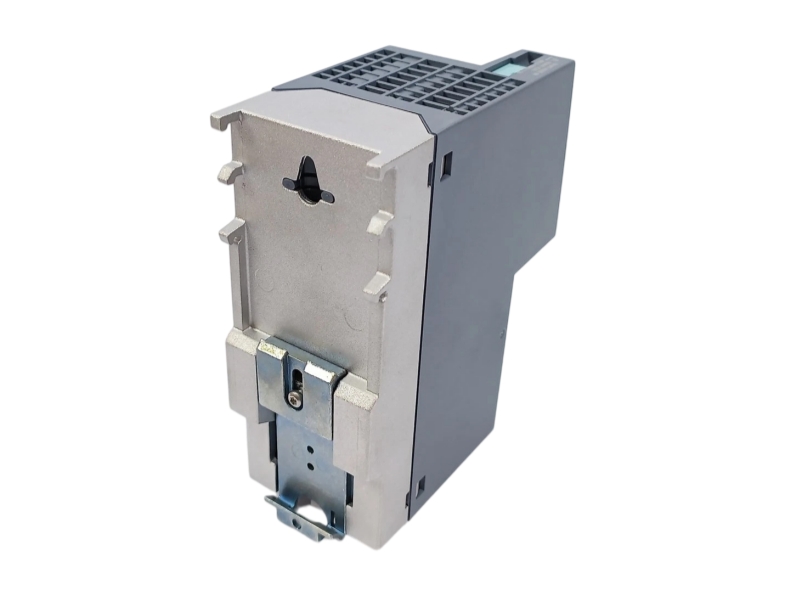

| Mounting | DIN rail, S7 mounting rail or wall mounting |
| Net weight | 0.520 kg |

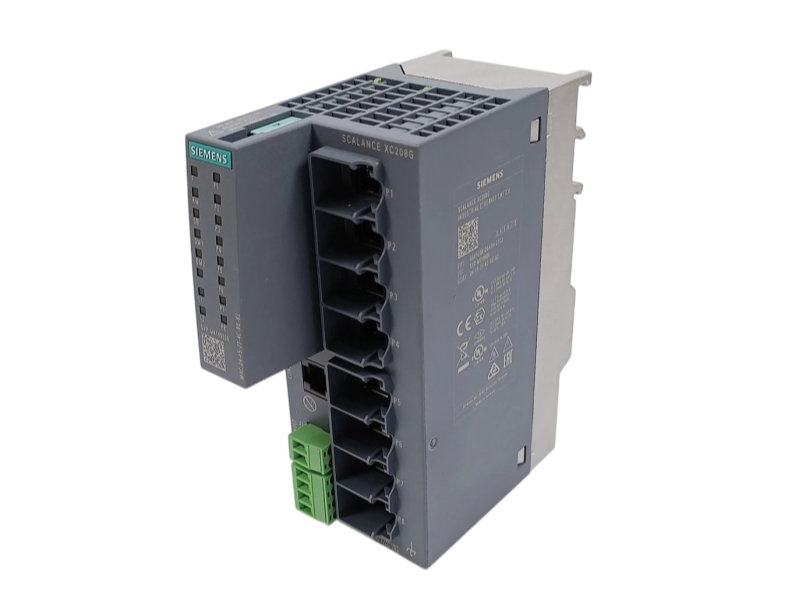

Use current photographs to verify the complete article number, port bank and terminal arrangement before supply.
| Application | Engineering Relevance |
|---|---|
| EtherNet/IP machine networks | Provides eight Gigabit-capable RJ45 ports for compatible EtherNet/IP automation nodes. |
| Managed plant-cell switching | Supports VLAN, redundancy and diagnostic functions within an engineered Layer 2 topology. |
| Time-aware industrial networks | IEEE 1588v2 PTP supports projects that require documented network time synchronization. |
| Harsh-temperature cabinets | The official operating range supports installations designed for -40 to +70 °C service. |
The -2TC2 article is the EtherNet/IP-default XC208G variant; do not substitute a PROFINET-coded version without review.
Confirm that eight copper RJ45 ports and 10/100/1000 Mbit/s operation match the network design.
Match the installed firmware, configuration backup and site cybersecurity requirements before replacement.
Verify rail or wall arrangement, dual 24 V DC feeds, grounding and available cabinet space.
PM300: Active Product. Confirm the current Siemens product-status field and firmware support information for 6GK5208-0GA00-2TC2 when the quotation is prepared.
It is the EtherNet/IP-default SCALANCE XC208G version with eight 10/100/1000 Mbit/s RJ45 ports.
No. Siemens identifies it as a manageable Layer 2 Industrial Ethernet switch with network and redundancy functions.
Yes. Siemens specifies a redundant power supply connection for the XC208G.
No. Protocol default, environmental version and hardware coding must be checked against the complete article number.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Service for 6GK5208-0GA00-2TC2
A focused review path for protocol identity, eight-port hardware condition, firmware evidence and protected dispatch.
| Step | Control Point | Review Scope |
|---|---|---|
| 01 | Requirement capture | Record topology, protocol, port use, power feeds, firmware, quantity and destination. |
| 02 | Identity evidence | Compare the full article number, XC208G label, RJ45 bank and console area. |
| 03 | Configuration alignment | Review EtherNet/IP default operation, VLAN or redundancy needs and site firmware baseline. |
| 04 | Dispatch record | Document port protection, terminal blocks, packing controls and shipping handover. |
Confirms the XC208G nameplate, complete -2TC2 suffix and housing condition.

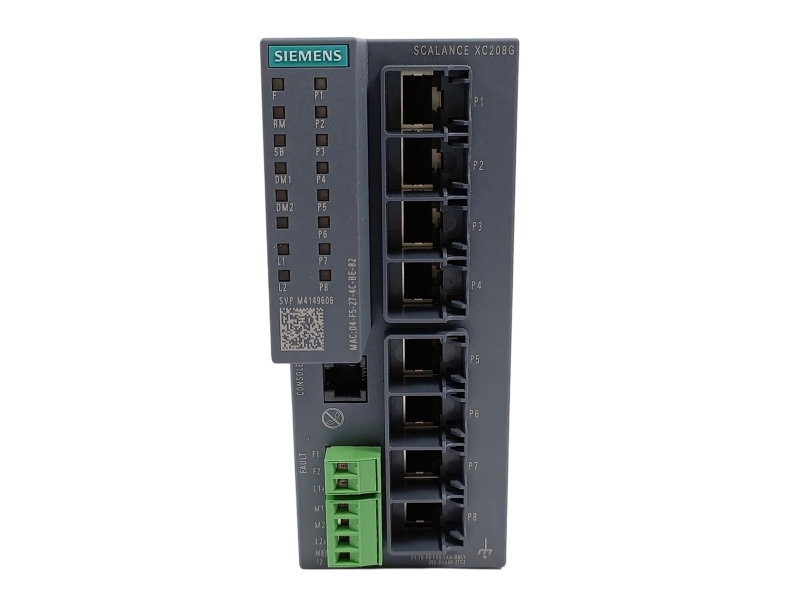

Checks all eight RJ45 interfaces, LEDs and connector faces.
Records terminal protection, cushioning and carton labeling.
| Record | Purpose |
|---|---|
| Exact-order-code photo | Distinguishes the EtherNet/IP -2TC2 version from other XC208G variants. |
| Port and LED evidence | Shows RJ45 numbering, interface condition and status indicators. |
| Firmware and topology notes | Supports review against the installed managed-network configuration. |
| Packing and label record | Provides traceable evidence before international dispatch. |
Availability, hardware condition, firmware evidence and destination are reviewed before the offer.
Warranty terms are stated on the quotation and matched to the offered condition and supply route.
