SCALANCE XF-200IRT
Flat managed PROFINET IRT switch
Siemens Industrial Ethernet
Four 10/100 Mbit/s RJ45 ports, integrated redundancy management and PROFINET IO device functions.
Siemens 6GK5204-0BA00-2BF2 is the SCALANCE XF204IRT flat managed Industrial Ethernet switch. Official Siemens documentation identifies four 10/100 Mbit/s RJ45 ports, PROFINET IO device operation, network management and an integrated redundancy manager.
The flat XF housing is intended for DIN-rail installation where deterministic IRT communication and managed diagnostics are required. The complete -2BF2 suffix should be retained because visually similar XF204 and X204 variants use different hardware and functions.
| Item | Verified Detail |
|---|---|
| Manufacturer | Siemens |
| Article number | 6GK5204-0BA00-2BF2 |
| Official designation | SCALANCE XF204IRT |
| Product family | SCALANCE XF-200IRT managed |
| Product class | Flat managed Industrial Ethernet IRT switch |
| Country of origin | GERMANY |
| Technical Item | Official Data |
|---|---|
| Electrical Ethernet ports | 4 |
| Port type | RJ45 |
| Data rate | 10/100 Mbit/s |
| Real-time function | PROFINET IRT capability |
| PROFINET role | PROFINET IO device |
| Redundancy | Integrated redundancy manager |
| Network management | Supported |
| C-PLUG | Optional |
| Rated supply voltage | 24 V DC |
| Permitted supply range | 18.5 to 30.2 V DC including ripple |
| Power loss at 24 V DC | 4.8 W |
| Current consumption | 200 mA |
| Dimensions (W × H × D) | 75 × 125 × 73 mm |
| Approximate device weight | 250 g |
| Mounting | DIN rail |

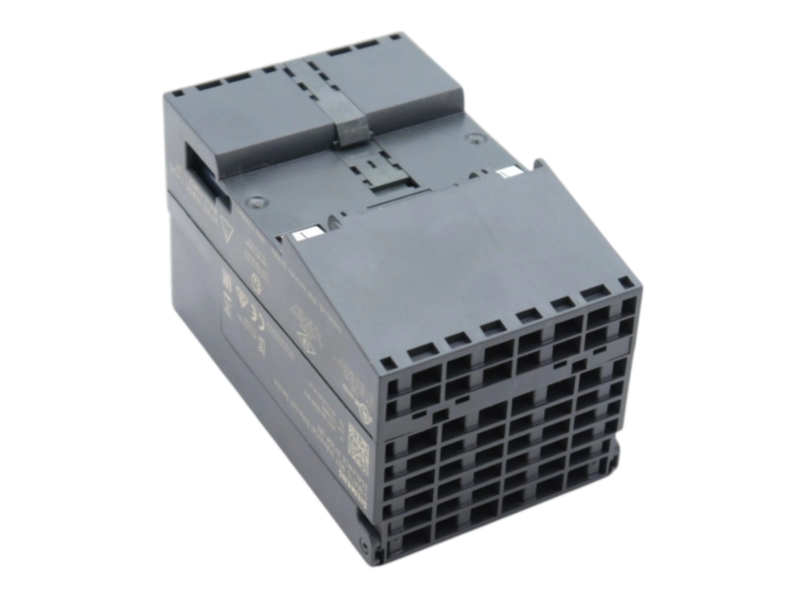

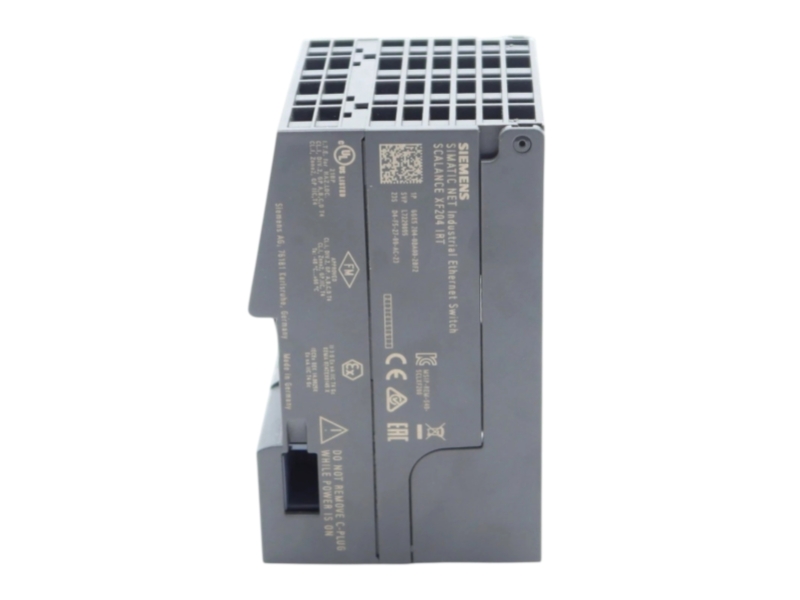

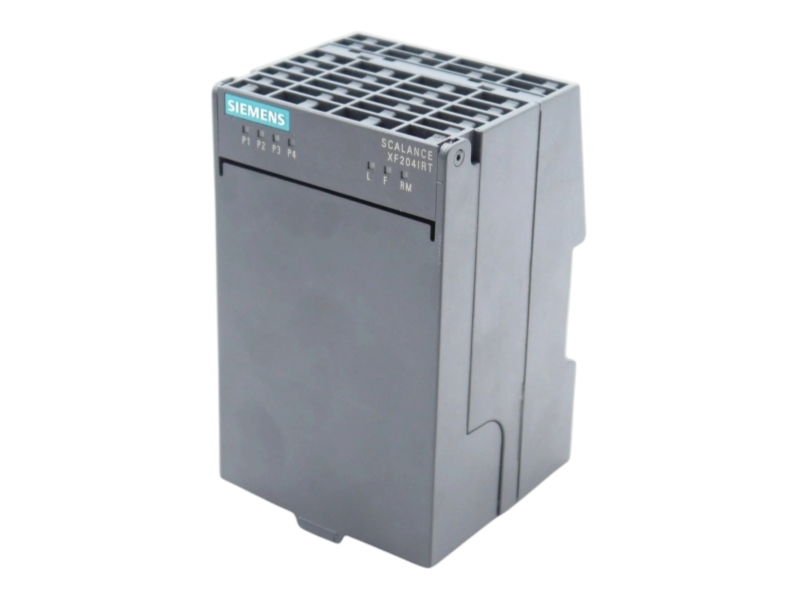

Use current photographs to compare the complete article number, four-port face and flat housing before supply.
| Application | Engineering Relevance |
|---|---|
| PROFINET IRT cells | Provides four electrical ports for engineered deterministic PROFINET communication. |
| Compact cabinet networking | The flat XF form factor supports space-conscious control-panel layouts. |
| Ring redundancy projects | The integrated redundancy manager supports documented resilient network architectures. |
| Managed machine switching | Network management and diagnostics support commissioning and maintenance workflows. |
Do not confuse the flat XF204IRT with X204IRT or non-IRT XF204 versions.
Confirm IRT topology, update times, controller project and device configuration.
Record firmware, saved configuration and C-PLUG use before replacement.
Confirm redundant 24 V DC wiring, signaling contact, DIN rail and clearances.
For lifecycle-sensitive procurement, use the current Siemens product-status field for the exact article number 6GK5204-0BA00-2BF2 at the time of order.
It is a managed flat Industrial Ethernet switch with PROFINET IRT and four electrical RJ45 ports.
Siemens documentation specifies four 10/100 Mbit/s RJ45 ports.
Yes. The XF204IRT technical data specifies redundant 24 V DC supply connections.
No. Housing, mounting, article suffix, firmware and project configuration must all be checked.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
Service for 6GK5204-0BA00-2BF2
A focused service path for exact XF identity, deterministic-network evidence, configuration records and protected dispatch.
| Step | Control Point | Review Scope |
|---|---|---|
| 01 | Requirement capture | Record IRT topology, four-port usage, controller project, power wiring and destination. |
| 02 | Identity evidence | Compare the -2BF2 label, flat XF housing, RJ45 interfaces and signaling area. |
| 03 | Configuration alignment | Review firmware, C-PLUG, redundancy role and PROFINET project requirements. |
| 04 | Dispatch record | Document terminal protection, housing condition, packing method and handover. |
Confirms the complete order code and XF204IRT face layout.
Shows four RJ45 ports, LEDs, set control and signaling components.
Records connector caps, rail latch protection and cushioning.
| Record | Purpose |
|---|---|
| Exact-order-code photo | Separates 6GK5204-0BA00-2BF2 from similar X204 and XF204 versions. |
| Port and terminal evidence | Shows RJ45 faces, supply terminals and signaling contact condition. |
| Project and firmware notes | Supports IRT, redundancy and C-PLUG configuration review. |
| Packing and label record | Provides traceable evidence before international dispatch. |
Availability, exact hardware identity, configuration evidence and destination are reviewed before quotation.
Warranty terms are stated on the quotation and tied to the offered condition and service scope.
Send the complete part number, quantity, destination and current nameplate photographs for an exact review.
Email: sales6@apterpower.com | WhatsApp: +86 181 5988 9985
