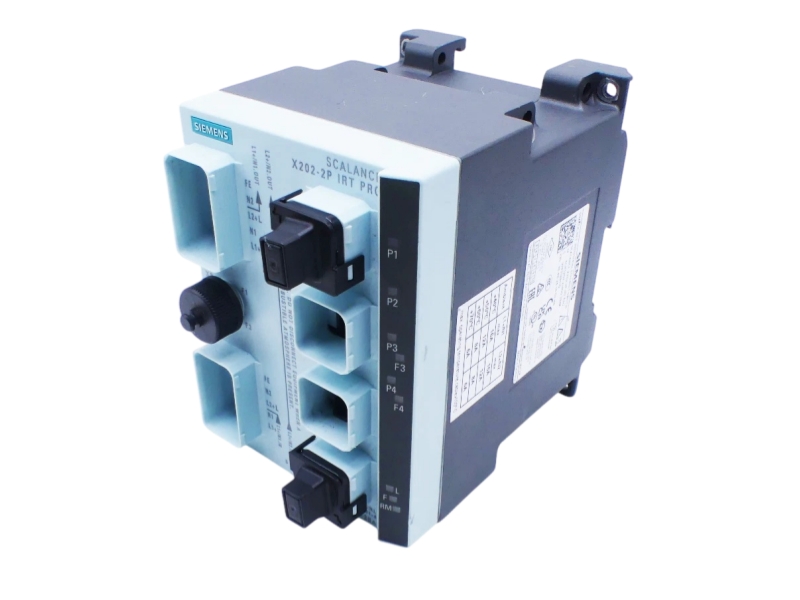

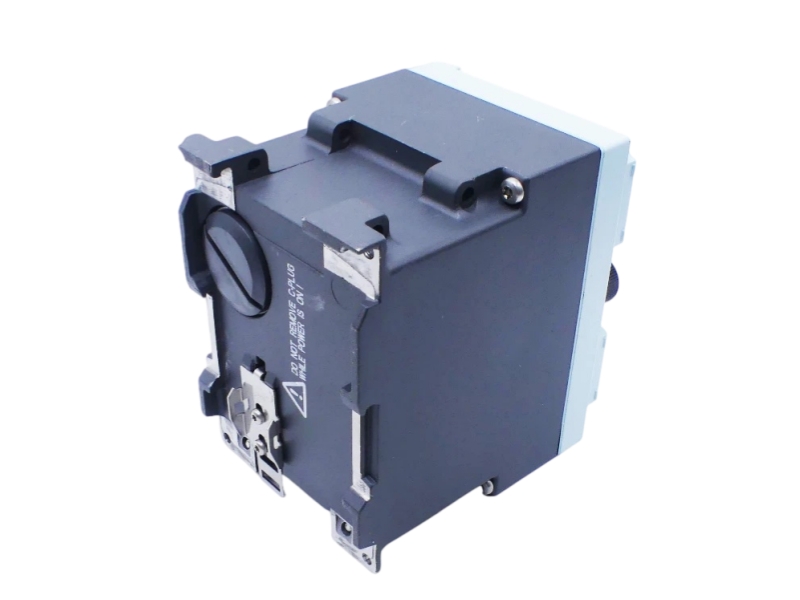

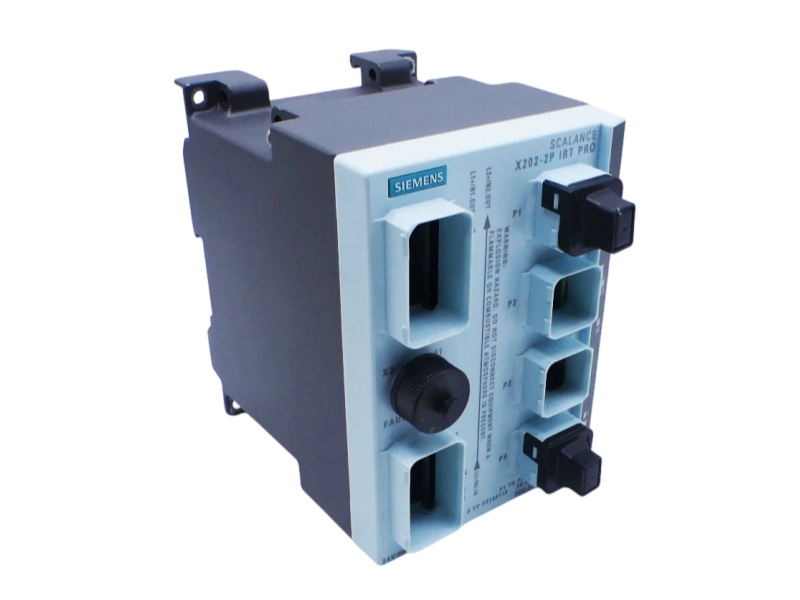

SCALANCE X202-2P IRT PRO Managed Switch
Series: SCALANCE X-200 IRT
Role: Rugged managed Industrial Ethernet and PROFINET IRT switching
Lifecycle: PM410: Product cancellation
Siemens 6GK5202-2JR00-2BA6 SCALANCE X202-2P IRT PRO Managed Switch is documented here using product-specific Siemens information. The complete order code, system role, interface or channel configuration and lifecycle wording should be checked against the installed equipment before procurement.
| Official lifecycle wording | PM410: Product cancellation |
| Current note | PM410: Product cancellation; cancelled since 09.11.2023. Siemens identifies 6GK5202-2JR10-2BA6 as the successor. |
| Manufacturer | Siemens |
| Complete article number | 6GK5202-2JR00-2BA6 |
| Product designation | SCALANCE X202-2P IRT PRO |
| Device type | Managed Industrial Ethernet IRT switch |
| Copper interfaces | 2 × 10/100 Mbps push-pull RJ45 |
| Optical interfaces | 2 × 100 Mbps push-pull SCRJ for POF |
| Degree of protection | IP65/67 |
| PROFINET function | PROFINET IO device; IRT supported |
| Network functions | Network management and redundancy manager integrated |
| Signaling | Error signaling contact with set pushbutton |
| Optional storage | C-PLUG |
| Product weight | 1.225 kg |
Connects local Industrial Ethernet devices through rugged push-pull copper ports.
Provides two 100 Mbps POF interfaces for electrically isolated optical segments.
Supports deterministic PROFINET communication in managed field-network architectures.
Verify the full MLFB, push-pull connector system, copper/POF media, PROFINET IRT project, IP rating, power connections and configured topology before replacement.
Because Siemens lists this article under product cancellation, confirm availability, condition, firmware, C-PLUG requirements and whether the stated successor is technically acceptable.
PM410: Product cancellation; cancelled since 09.11.2023. Siemens identifies 6GK5202-2JR10-2BA6 as the successor. Lifecycle and migration decisions must be based on the complete article number and current Siemens documentation.
It is a Siemens SCALANCE X202-2P IRT PRO managed Industrial Ethernet switch.
The official data lists two 10/100 Mbps copper push-pull RJ45 ports and two 100 Mbps push-pull SCRJ POF ports.
Siemens specifies IP65/67.
Siemens lists PM410: Product cancellation, with cancellation since 09.11.2023.
Siemens identifies 6GK5202-2JR10-2BA6; compatibility still requires a project-specific review.
Send the exact order code, quantity, destination and installed-system details for availability, compatibility, condition and warranty review.
Structured identification, compatibility review, sourcing coordination, inspection planning and international delivery support for rugged managed industrial ethernet and profinet irt switching.
We compare the complete Siemens article number, product designation, installed system, electrical or network details and configuration evidence supplied with the inquiry. This reduces the risk of selecting a visually similar but technically different variant.
Nameplate photographs, connector or terminal details, cabinet records, software-project information and existing documentation are reviewed together whenever available.
The requested condition, label evidence, connector areas, enclosure state and included accessories can be aligned before shipment. Inspection points are selected according to the module or device function.
Packaging expectations, documentation, warranty terms and evidence required by the maintenance team can be discussed before commercial release.
Exact-code comparison helps distinguish revisions, interfaces, channel arrangements and accessory requirements before purchase.
Procurement, engineering and maintenance teams receive a consistent checklist built around the actual installed equipment.
Quantity, destination, transport preference and documentation needs are reviewed early for efficient packing and shipment planning.
| Stage | How it supports the order |
| 1. Inquiry | Send 6GK5202-2JR00-2BA6, quantity, destination and available nameplate or installed-system details. |
| 2. Technical review | We compare system fit, interfaces or channels, wiring, project requirements and replacement constraints. |
| 3. Commercial confirmation | Availability, lead time, condition, inspection scope, warranty and delivery plan are clarified before processing. |
| 4. Dispatch support | Protective packing and shipment documentation are coordinated for the selected destination and transport method. |
Share the exact quantity, installed-system details, condition request and destination for an availability and compatibility review.
