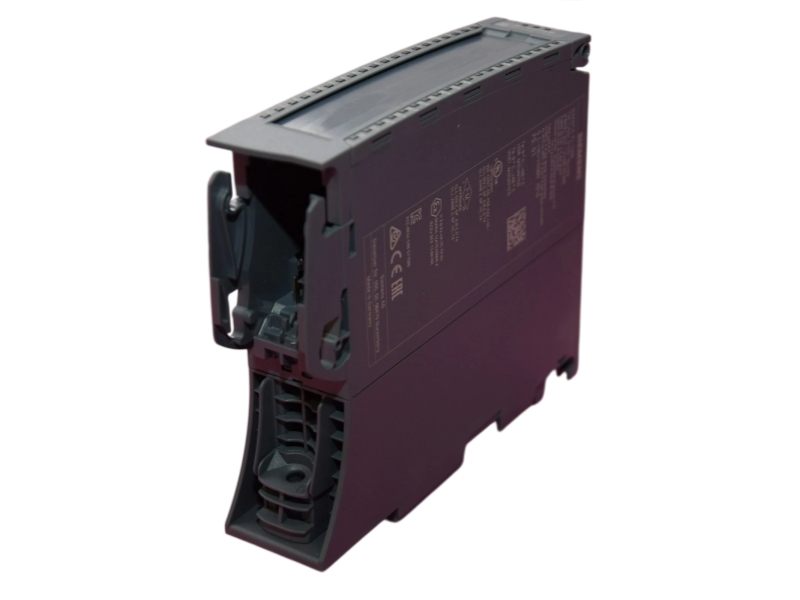

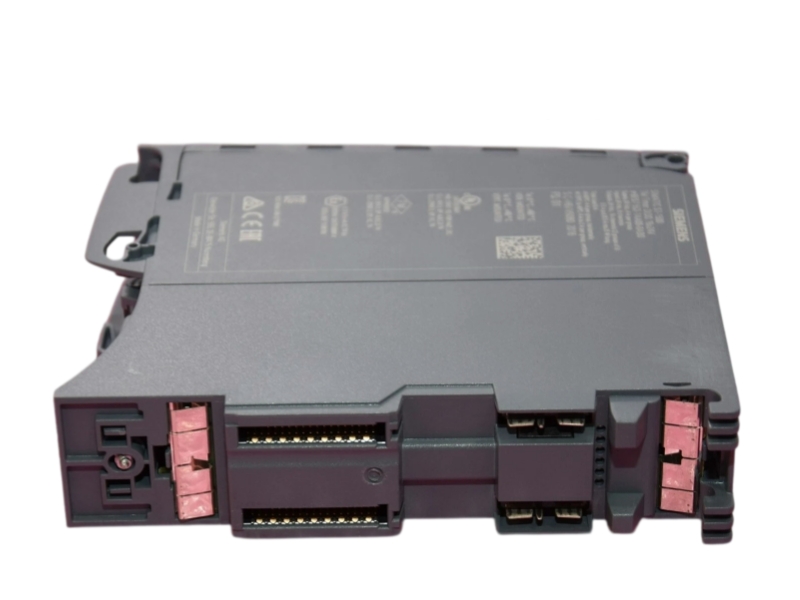

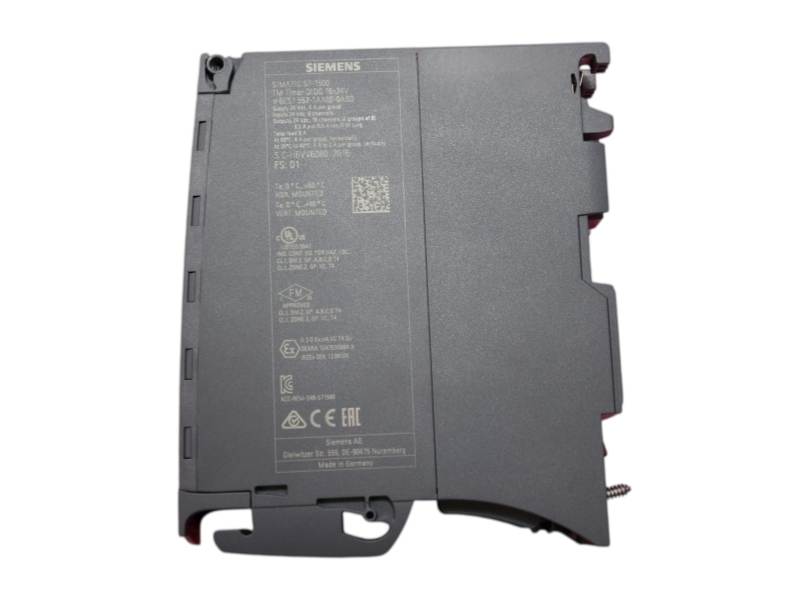

SIMATIC S7-1500 TM Timer DIDQ Module
Series: SIMATIC S7-1500
Role: Time-controlled digital I/O and high-precision technology functions
Lifecycle: PM410: Product cancellation
Siemens 6ES7552-1AA00-0AB0 SIMATIC S7-1500 TM Timer DIDQ Module is documented here using product-specific Siemens information. The complete order code, system role, interface or channel configuration and lifecycle wording should be checked against the installed equipment before procurement.
| Official lifecycle wording | PM410: Product cancellation |
| Current note | PM410: Product cancellation; product cancelled since 06.06.2025. Siemens identifies 6ES7552-1AA01-0AB0 as the successor. |
| Manufacturer | Siemens |
| Complete article number | 6ES7552-1AA00-0AB0 |
| Product designation | TM Timer DIDQ 16x24V |
| Platform | SIMATIC S7-1500 |
| Digital inputs | Maximum 8 |
| Digital outputs | 16 |
| Timestamp channels | Maximum 16 |
| Technology functions | Count, PWM and oversampling |
| Isochronous mode | Supported |
| Identification data | I&M 0 |
| Engineering requirement | Configurable with STEP 7 TIA Portal from V13 Update 3 |
Coordinates fast digital input and output events with precise timing requirements.
Captures event timing for sequence analysis and synchronized automation tasks.
Supports counting, pulse-width modulation and oversampling in S7-1500 projects.
Confirm the complete MLFB, S7-1500 hardware configuration, 24 V wiring, channel assignment, isochronous requirements and STEP 7 TIA Portal project version.
The original article is cancelled. Review firmware, project data, terminal wiring and whether successor 6ES7552-1AA01-0AB0 can be engineered into the installed system.
PM410: Product cancellation; product cancelled since 06.06.2025. Siemens identifies 6ES7552-1AA01-0AB0 as the successor. Lifecycle and migration decisions must be based on the complete article number and current Siemens documentation.
It is a Siemens SIMATIC S7-1500 TM Timer DIDQ 16x24V technology module.
The official data lists up to 8 digital inputs and 16 digital outputs.
Count, PWM, oversampling and timestamp-related functions are supported.
Siemens lists PM410: Product cancellation, with cancellation since 06.06.2025.
Siemens lists configuration with STEP 7 TIA Portal from V13 Update 3.
Send the exact order code, quantity, destination and installed-system details for availability, compatibility, condition and warranty review.
Structured identification, compatibility review, sourcing coordination, inspection planning and international delivery support for time-controlled digital i/o and high-precision technology functions.
We compare the complete Siemens article number, product designation, installed system, electrical or network details and configuration evidence supplied with the inquiry. This reduces the risk of selecting a visually similar but technically different variant.
Nameplate photographs, connector or terminal details, cabinet records, software-project information and existing documentation are reviewed together whenever available.
The requested condition, label evidence, connector areas, enclosure state and included accessories can be aligned before shipment. Inspection points are selected according to the module or device function.
Packaging expectations, documentation, warranty terms and evidence required by the maintenance team can be discussed before commercial release.
Exact-code comparison helps distinguish revisions, interfaces, channel arrangements and accessory requirements before purchase.
Procurement, engineering and maintenance teams receive a consistent checklist built around the actual installed equipment.
Quantity, destination, transport preference and documentation needs are reviewed early for efficient packing and shipment planning.
| Stage | How it supports the order |
| 1. Inquiry | Send 6ES7552-1AA00-0AB0, quantity, destination and available nameplate or installed-system details. |
| 2. Technical review | We compare system fit, interfaces or channels, wiring, project requirements and replacement constraints. |
| 3. Commercial confirmation | Availability, lead time, condition, inspection scope, warranty and delivery plan are clarified before processing. |
| 4. Dispatch support | Protective packing and shipment documentation are coordinated for the selected destination and transport method. |
Share the exact quantity, installed-system details, condition request and destination for an availability and compatibility review.
