An S7-300 communication processor for PROFIBUS DP, PG/OP, S7 and S5-compatible communication services.
Siemens 6GK7342-5DA02-0XE0 is a SIMATIC NET CP 342-5 communication processor that connects a SIMATIC S7-300 or C7-300 station to PROFIBUS. It supports PROFIBUS DP operation, PG/OP functions, S7 communication and S5-compatible communication.
The CP can be configured as a PROFIBUS DP master class 1 or as a DP slave. Its RS-485 PROFIBUS interface supports transmission rates from 9.6 kbit/s up to 12 Mbit/s, while the module is powered from 24 V DC and the S7-300 backplane bus.
| Official Product Record | |
|---|---|
| Complete order number | 6GK7342-5DA02-0XE0 |
| Manufacturer | Siemens |
| Product type | SIMATIC CP 342-5 Communication Processor |
| Product family | SIMATIC S7-300 / PROFIBUS DP |
| Commercial status | End Prod.Lifecycl. |
| Parameter | Official specification |
|---|---|
| Product designation | SIMATIC NET CP 342-5 |
| Article number | 6GK7342-5DA02-0XE0 |
| System connection | SIMATIC S7-300 / C7-300 |
| Network | PROFIBUS DP |
| DP operating modes | DP master class 1 or DP slave; one mode at a time |
| Additional services | PG/OP, S7 and S5-compatible communication |
| PROFIBUS interface | 9-pin D-sub female connector, RS-485 |
| Supported data rates | 9.6 kbit/s to 12 Mbit/s |
| DP master capacity | Up to 15 DP slaves in the documented multiprotocol operating limit |
| Total connections with PROFIBUS DP | 44 maximum within documented multiprotocol limits |
| Rated supply voltage | 24 V DC |
| 24 V current consumption | 120 mA typical; 230 mA maximum |
| Backplane-bus current | 40 mA typical |
| Power dissipation | 5 W |
| Ambient temperature | 0 to 60 °C horizontal; 0 to 40 °C vertical |
| Storage / transport temperature | −40 to +70 °C |
| Dimensions (W × H × D) | 40 × 125 × 120 mm |
| Product weight | Approximately 300 g |
| Packaging dimensions (L × W × H) | 15.3 × 13.2 × 5.1 cm |
| Siemens net weight | 0.334 kg |

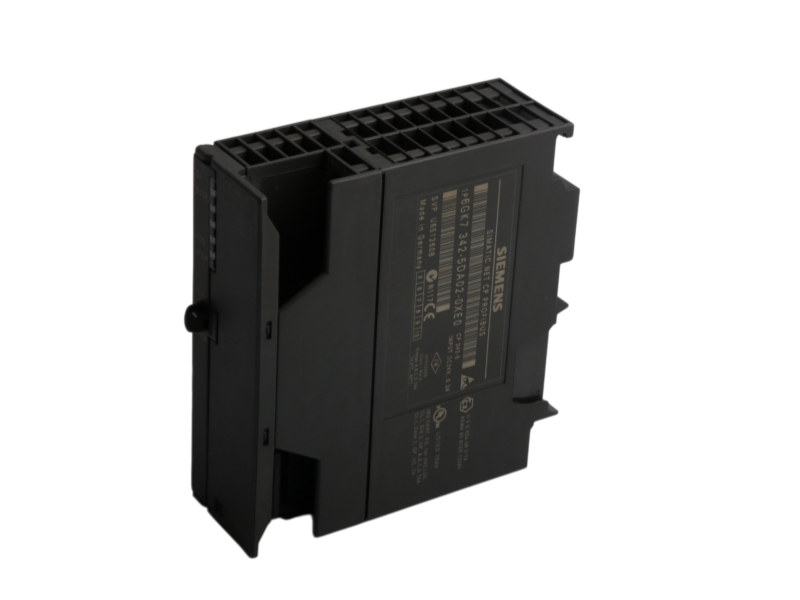

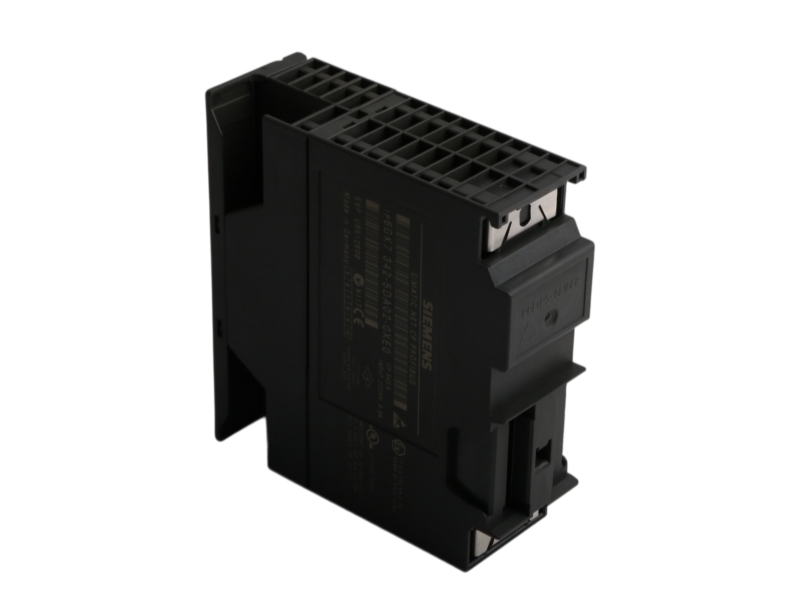

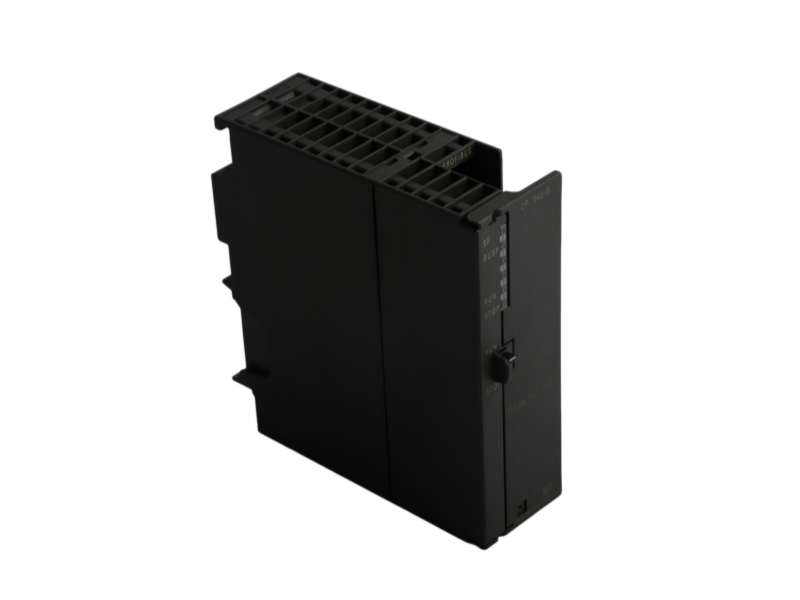

Use three current images to record identity, connection points and overall condition.
|
|
|
| Application | Product role |
|---|---|
| S7-300 PROFIBUS DP master | Connects an S7-300 station to distributed PROFIBUS DP devices. |
| DP slave integration | Allows the S7-300 station to participate as a PROFIBUS DP slave when configured accordingly. |
| PG/OP and S7 communication | Provides engineering, operator-panel and configured S7 data-exchange services. |
Siemens SiePortal lists End Prod.Lifecycl. for 6GK7342-5DA02-0XE0 and identifies 6GK7342-5DA03-0XE0 as its successor. Replacement or migration should preserve the PROFIBUS project, operating mode, node address, communication blocks and bus configuration.
It is a Siemens SIMATIC NET CP 342-5 communication processor for connecting S7-300 and C7-300 stations to PROFIBUS.
It supports either DP master class 1 or DP slave operation, but not both modes simultaneously.
Confirm the exact article number, hardware and firmware revision, STEP 7 configuration, DP operating mode, node address, data rate and PROFIBUS cabling.
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
Order-number verification, revision and interface review, PROFIBUS project checks, condition documentation, protected packing and delivery coordination.
Module IdentificationArticle number, firmware, hardware revision and label condition are recorded. |
Network Fit ReviewDP mode, address, transmission rate, connector and termination details are checked. |
Protected LogisticsFront connector, PROFIBUS port, power terminals and module housing are protected for shipment. |
| Stage | Review item | Procurement value |
|---|---|---|
| Identity | Complete order label, revision and firmware | Confirms the exact CP 342-5 hardware variant |
| System fit | S7 rack, CPU, STEP 7 project and communication blocks | Defines compatibility with the installed station |
| PROFIBUS fit | DP mode, node address, data rate and termination | Supports controlled network restoration |
| Supply | Quantity, condition, destination and required date | Defines quotation, packing and delivery scope |
The service review covers the 6GK7342-5DA02-0XE0 identity, module revision, 24 V supply, S7-300 backplane connection, RS-485 PROFIBUS port, DP master or slave configuration, node address, bus rate, connector termination, STEP 7 project and communication-block use.
| Packing | Anti-static or impact protection appropriate to the supplied product, with reinforced outer packing |
| Condition record | Label and physical-condition photographs retained with the supply record |
| Delivery | Trackable international shipment to the confirmed destination |
| Warranty | Terms stated in the quotation for the specific offered item |
Send the complete order code, quantity, condition preference, delivery destination and clear product photographs for a supply review.
Copy or open: sales6@apterpower.com | +86 181 5988 9985
