A compact managed switch combining copper Ethernet and polymer optical fiber connectivity for deterministic PROFINET IRT network segments.

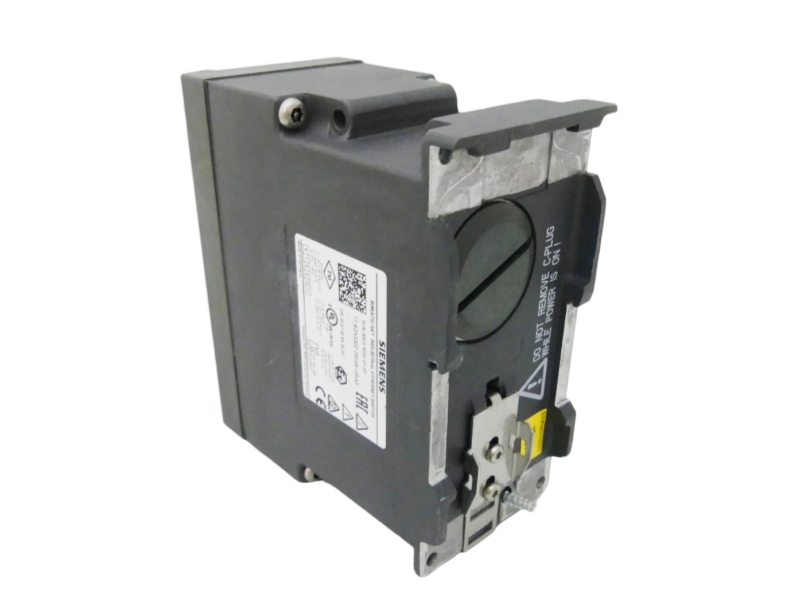

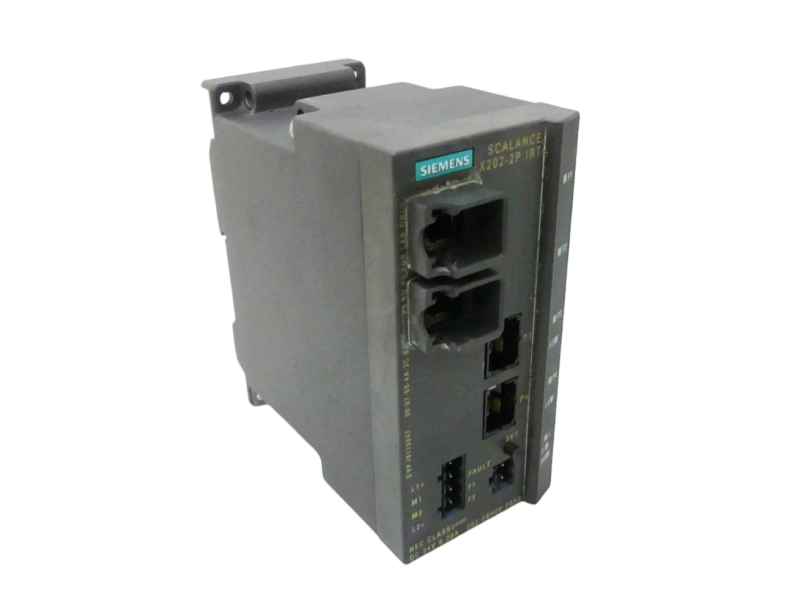

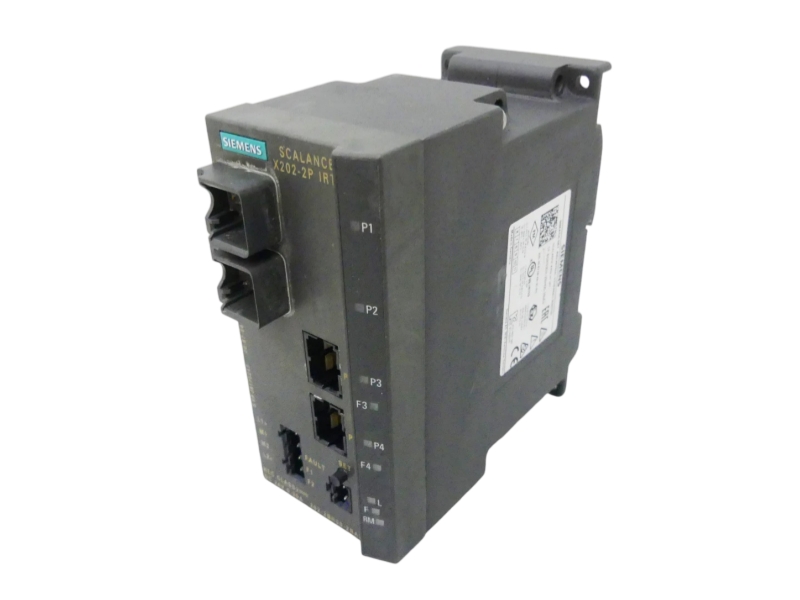

Siemens 6GK5202-2BH00-2BA3 is the SCALANCE X202-2P IRT managed Industrial Ethernet switch. Siemens specifies two 10/100 Mbps electrical RJ45 ports and two 100 Mbps POF SC-RJ optical ports, allowing a single compact device to connect copper nodes and polymer optical fiber links. The unit supports PROFINET IO device functions, network management and integrated redundancy management for automation networks that require predictable real-time communication.
| Order code | 6GK5202-2BH00-2BA3 |
|---|---|
| Official catalog description | SCALANCE X202-2P IRT managed IE IRT switch |
| Siemens current datasheet classification | Spare part |
| Procurement action | Confirm exact order code, hardware version, firmware state and required accessories before purchase. |
| Parameter | Official value |
|---|---|
| Product type | SCALANCE X202-2P IRT managed IE IRT switch |
| Transfer rate | 10 / 100 Mbit/s |
| Electrical network ports | 2 × RJ45 for network components or terminal equipment |
| Optical ports | 2 × 100 Mbit/s SC-RJ for POF fiber |
| Power supply | 24 V DC rated; 18 to 32 V DC operating range |
| Redundant voltage supply | Supported |
| Current consumption | 0.3 A maximum |
| Power loss | 7.2 W rated |
| Signaling contact | 24 V DC rated, 0.1 A maximum, 2-pole terminal block |
| Removable storage | C-PLUG supported |
| Protection class | IP30 |
| Operating temperature | −25 °C to +60 °C |
| Dimensions (W × H × D) | 60 × 125 × 124 mm |
| Net weight | 0.78 kg |
| Management and redundancy | Managed switch, web-based management, CLI, SNMP v1/v2/v3, MRP |
| PROFINET conformity class | Class C |
The compact enclosure supports 35 mm DIN-rail, wall and S7-300 rail mounting. Cabinet layout must provide the specified 24 V DC supply, suitable POF and copper cabling, grounding, clearance and an ambient temperature within the official range.
Verify all characters and the complete -2BA3 suffix.
Confirm two RJ45 and two POF SC-RJ ports suit the network design.
Record the installed firmware and review Siemens security guidance.
Check PROFINET IRT, MRP and management requirements.
Confirm 18–32 V DC, redundant feed wiring and rail type.
Verify C-PLUG, connectors, fiber type and terminal blocks.
It is a Siemens SCALANCE X202-2P IRT managed Industrial Ethernet switch for PROFINET-oriented automation networks.
The official datasheet lists two 10/100 Mbps RJ45 ports and two 100 Mbps POF SC-RJ ports.
Yes. Siemens specifies a redundant 24 V DC supply connection with an 18 to 32 V DC operating range.
The product supports an optional C-PLUG. Confirm whether one is required and supplied with the specific unit.
Match the full suffix, port media, firmware, network configuration, C-PLUG data, power wiring and mounting arrangement.
Send the complete 6GK5202-2BH00-2BA3 order code, quantity, firmware or hardware details, destination and required delivery date. Our team can review visible condition, configuration fit, warranty terms and global shipping options before quotation.
For 6GK5202-2BH00-2BA3, our service workflow focuses on traceable identification, practical compatibility review, careful handling and clear communication from enquiry through dispatch.
We translate the requested order code, network role and port requirements into a clear sourcing brief.
Visible labels, packaging details and supplied accessories can be checked against the purchase requirement.
Industrial components are handled, protected and prepared for shipment with attention to condition and documentation.
We check the entire Siemens article number, including every suffix, before matching available units.
Port media, PROFINET IRT requirements, power supply and mounting are reviewed against the intended system.
Available photos, labels, accessories and packaging can be reviewed before the order is finalized.
Export packing, destination details, shipping options and delivery expectations are coordinated clearly.
Warranty scope is stated with the quotation so buyers can compare commercial risk and coverage.
Email and WhatsApp channels support fast clarification of quantities, revisions and urgent replacement needs.
| Step | Action | What we confirm |
|---|---|---|
| 01 | Requirement review | Full order code, quantity, system role, required date and destination. |
| 02 | Availability check | Stock position, visible condition, revision data and included accessories. |
| 03 | Compatibility check | RJ45/POF interface mix, firmware, power supply, mounting and network function. |
| 04 | Quotation and dispatch | Warranty statement, commercial terms, packing method and shipping option. |
Send the full model, requested quantity, current device photos or firmware information, delivery country and target date. We will respond with the next verification steps and available supply options.
